Hot-selling and scarce 74LVC1G06GF Inverter with open-drain output 6-XFDFN spot stock

Product Descriptions

The 74LVC1G06 provides the inverting buffer.

Input can be driven from either 3.3 V or 5 V devices. These features allow the use of these devices in a mixed 3.3 V and 5 V environment.

Schmitt-trigger action at all inputs makes the circuit tolerant for slower input rise and fall time.

This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

The output of the device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions.

Product Features

■ Wide supply voltage range from 1.65 V to 5.5 V

■ High noise immunity

■ Complies with JEDEC standard:

◆ JESD8-7 (1.65 V to 1.95 V)

◆ JESD8-5 (2.3 V to 2.7 V)

◆ JESD8B/JESD36 (2.7 V to 3.6 V)

■ ±24 mA output drive (VCC = 3.0 V)

■ CMOS low power consumption

■ Latch-up performance exceeds 250 mA

■ Direct interface with TTL levels

■ Inputs accept voltages up to 5 V

■ Multiple package options

■ ESD protection:

◆ HBM JESD22-A114E exceeds 2000 V

◆ MM JESD22-A115-A exceeds 200 V

■ Specified from −40 °C to +125 °C

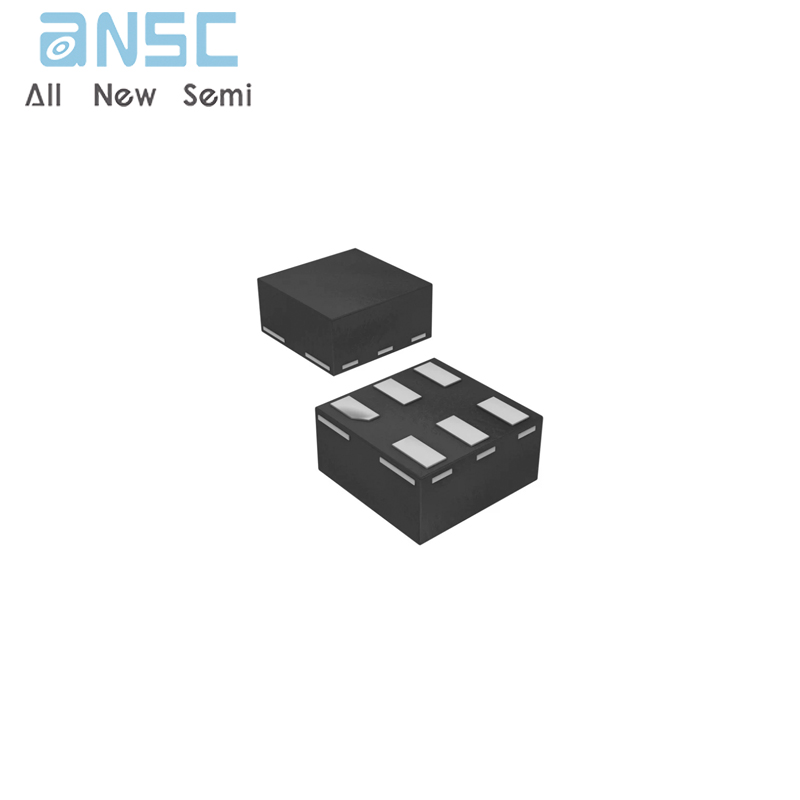

Product Photos

For more product information, please download the PDF
