Hot-selling and scarce MP8642DU-LF-Z Dual 3A, 23V, 600kHz Step-Down Converter with Frequency Synchronization QFN

Product Descriptions

The MP8642 is a dual monolithic step-down switch mode converter with built-in internal power MOSFETs. It achieves 3A continuous output current for each output over a wide input supply range with excellent load and line regulation.

Current mode operation provides fast transient response and eases loop stabilization.

Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown.

The MP8642 requires a minimum number of readily available standard external components.

Product Features

 3A Current for Each Output

 80mΩ Internal Power MOSFET Switch

 Stable with Low ESR Output Ceramic Capacitors

 Up to 95 PERCENT Efficiency

 Power Good Indicator

 Fixed 600kHz Frequency

 Synchronizable to >1MHz External Clock

 Thermal Shutdown

 Cycle-by-Cycle Over Current Protection

 Wide 4.5V to 23V Operating Input Range

 Each Output Adjustable from 0.8V to 20V

 Available in a 5mm x 5mm 32-Pin QFN Package

Product Applications

 Point of Load Regulator in Distributed Power Systems

 Digital Set Top Boxes

 Personal Video Recorders

 Broadband Communications

 Flat Panel Television and Monitors

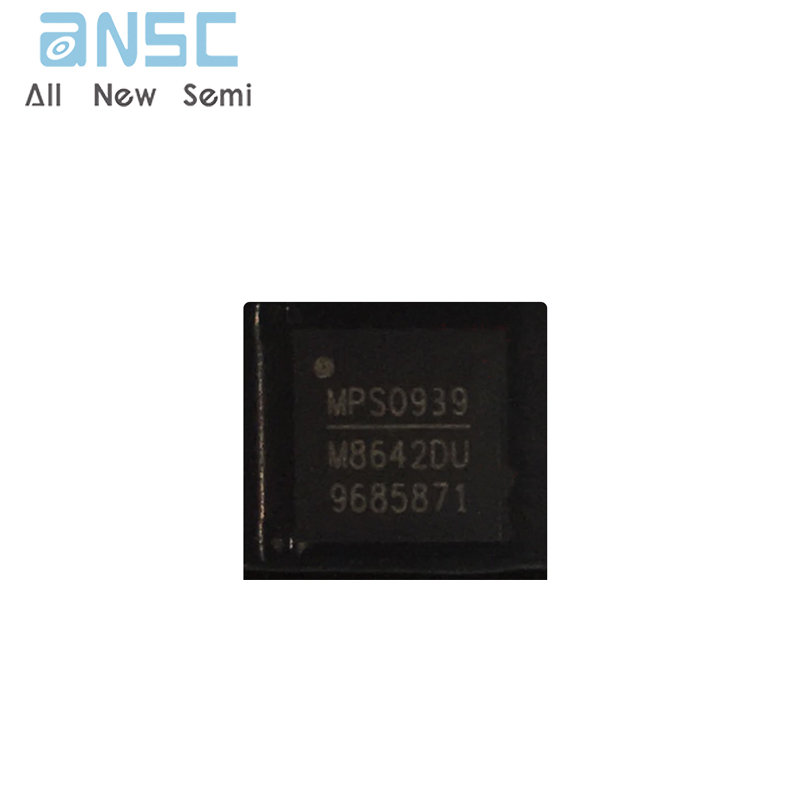

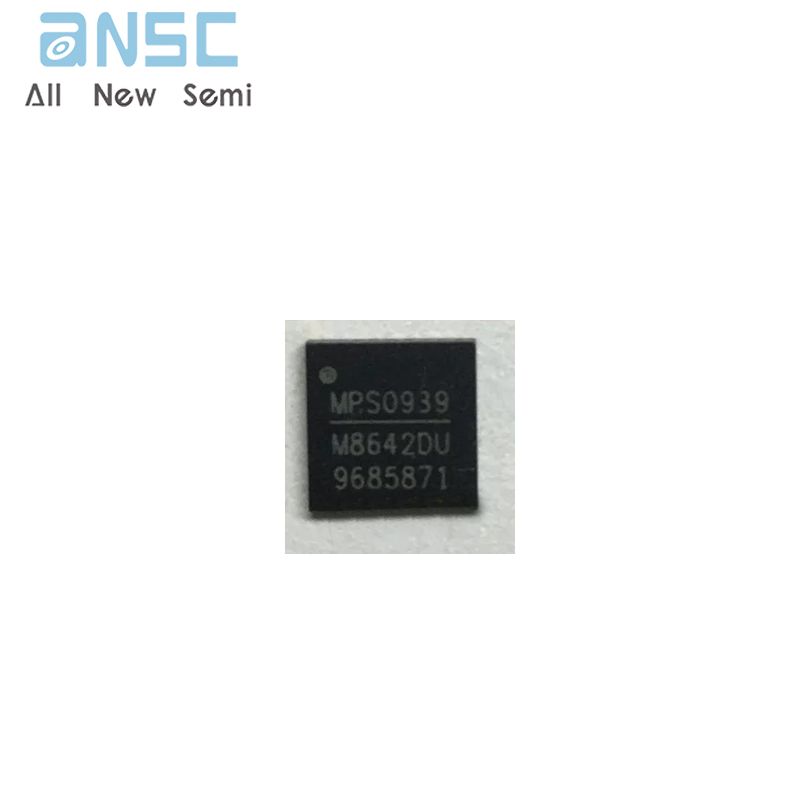

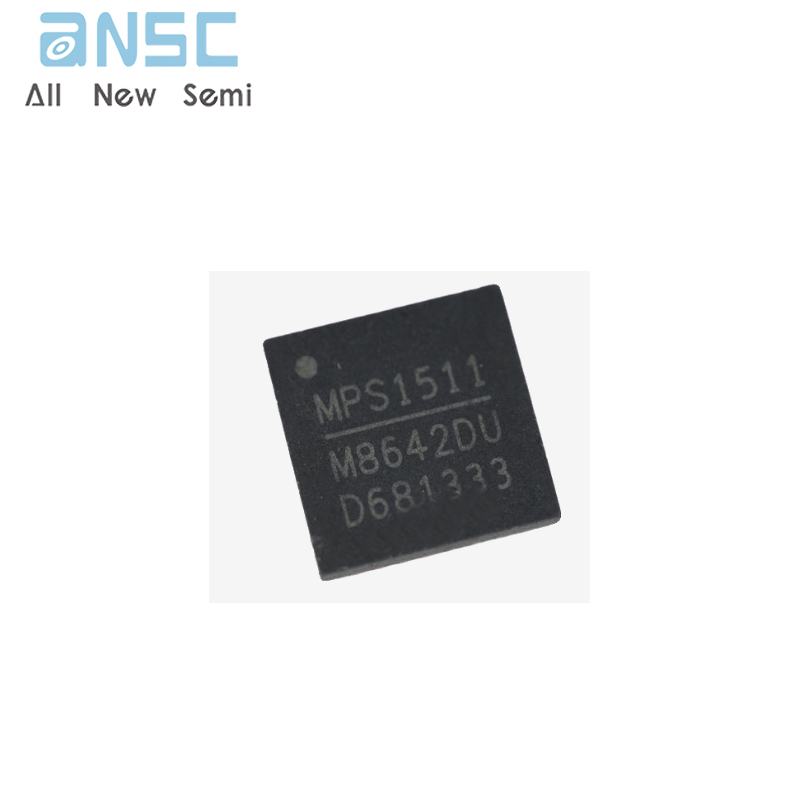

Product Photos

For more product information, please download the PDF
