Hot-selling and scarce SN74HC652DW OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS SOP24 spot stock
Manufacturer Product Number
SN74HC652DW
Description
SN74HC652DW OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS SOP24 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Independent Registers and Enables for A and B Buses
Multiplexed Real-Time and Stored Data
True Data Paths
High-Current 3-State Outputs Can Drive up to 15 LSTTL Loads
Package Options Include Plastic Small-Outline (DW) and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (NT) and Ceramic (JT) 300-mil DIPs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HC652DW |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Output Type | 3-State |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Base Product Number | 74HC652 |

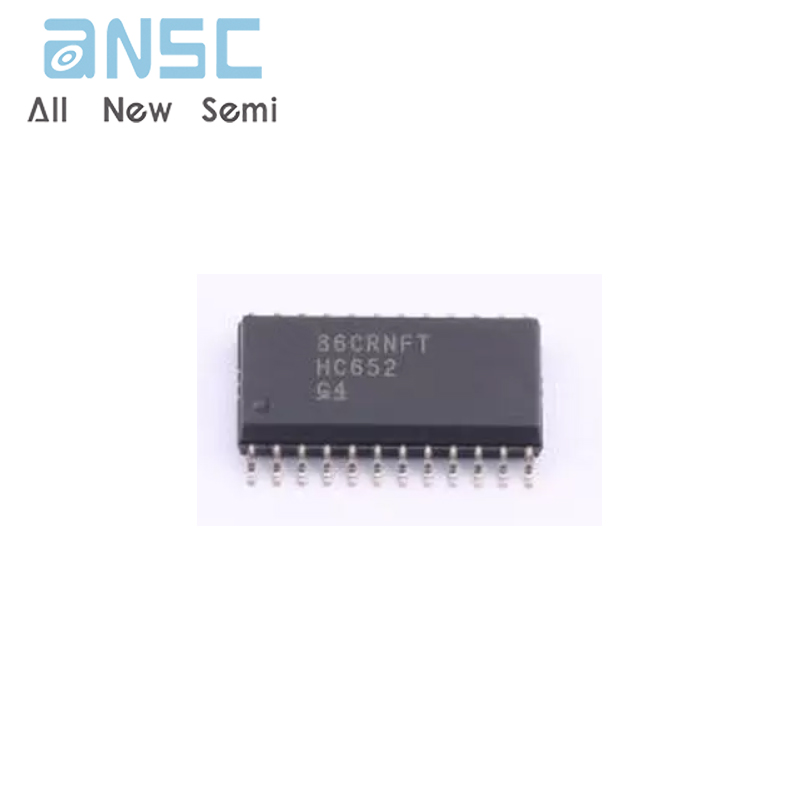

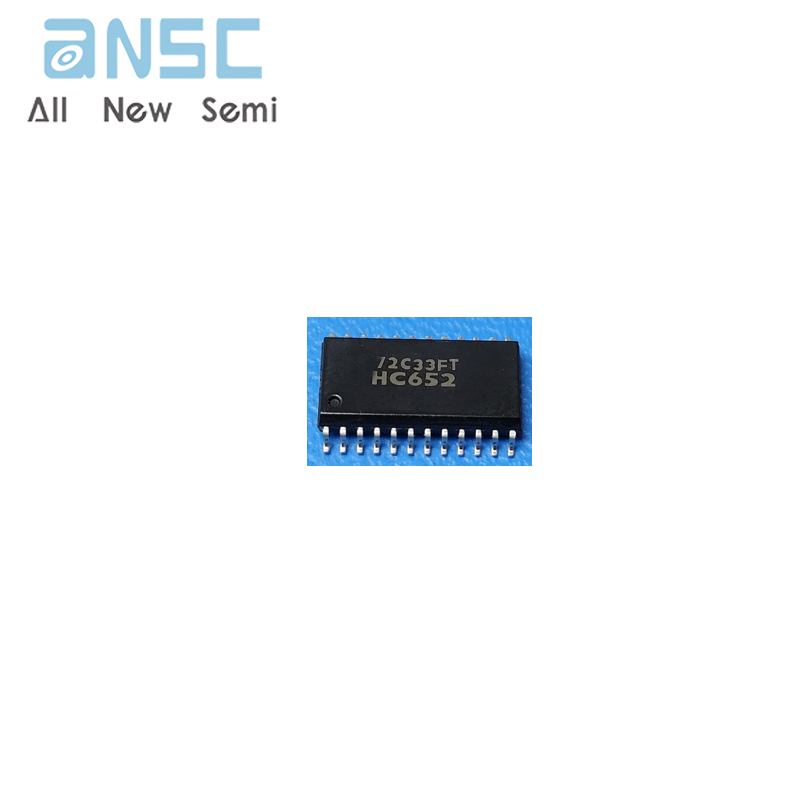

Product Photos
For more product information, please download the PDF
