Hot-selling and scarce S172-5-R SURFACE MOUNT COMMERCIAL RELAYS DPDT CAN8 spot stock

Product Descriptions

The S172 surface mount Centigrid® relay is an ultraminiature, hermetically  sealed, armature relay for commercial applications. Its low profile height  (.370) and .100” grid spaced terminals make it an ideal choice where  extreme packaging density and/or close PC board spacing are required.  The specially formed J-leads are pre-tinned to make the relays ideal for all  types of surface-mount solder reflow processes.

The basic design and internal structure are similar to Teledyne’s DPDT  114 Centigrid® relay. Unique construction features and manufacturing  techniques provide overall high reliability and excellent resistance to  environmental extremes:

The S172D relay has an internal discrete silicon diode for coil transient  suppression.

Product Features

• All welded construction.

• High force/mass ratios for resistance to shock and vibration.

• Unique uni-frame design providing high magnetic efficiency and mechanical rigidity.

• Advanced cleaning techniques provide maximum assurance of internal cleanliness.

• Precious metal alloy contact material with gold plating assures excellent high current and dry circuit switching capabilities.

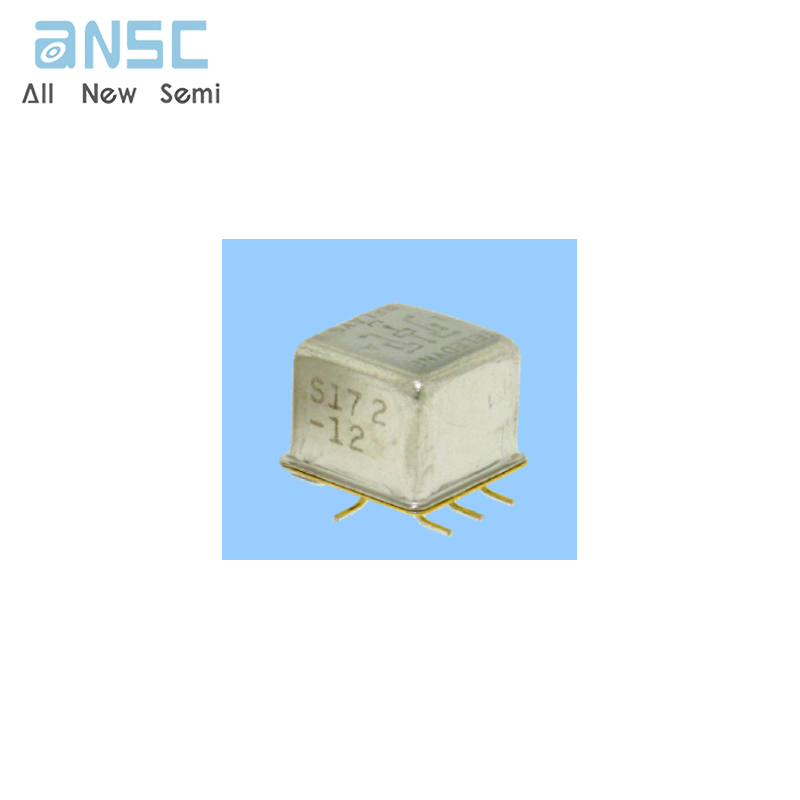

Product Photos

For more product information, please download the PDF
