Spot sales of TMS320DM8168ACYG2 1031-BFBGA DaVinci ™ Digital Media Processors

Product Descriptions

The DM816x DaVinci video processors are a highly integrated, programmable platform that leverages TI's DaVinci technology to meet the processing needs of the following applications: video encode, decode, transcode, and transrate; video security; video conferencing; video infrastructure; media server; and digital signage.

​

The device enables original-equipment manufacturers (OEMs) and original-design manufacturers (ODMs) to quickly bring to market devices featuring robust operating systems support, rich user interfaces, and high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The device combines programmable video and audio processing with a highly integrated peripheral set.

Key to the device are up to three high-definition video and imaging coprocessors (HDVICP2). Each coprocessor can perform a single 1080p60 H.264 encode or decode or multiple lower resolution or frame rate encodes and decodes. Multichannel HD-to-HD or HD-to-SD transcoding and multicoding are also possible. With the ability to simultaneously process 1080p60 streams, the TMS320DM816x device is a powerful solution for today's demanding HD video application requirements.

Product Features

• High-Performance DaVinci Digital Media Processors

– ARM® Cortex™-A8 RISC Processor

• Up to 1.20 GHz

– C674x™ VLIW DSP

• Up to 1 GHz

• Up to 8000 MIPS and 6000 MFLOPS

• Fully Software-Compatible with C67x+ and C64x+™

• ARM Cortex-A8 Core

– ARMv7 Architecture

• In-Order, Dual-Issue, Superscalar Processor Core

• NEON™ Multimedia Architecture

– Supports Integer and Floating Point (VFPv3- IEEE754 Compliant)

• Jazelle® RCT Execution Environment

• ARM Cortex-A8 Memory Architecture

– 32-KB Instruction and Data Caches

– 256-KB L2 Cache

– 64-KB RAM, 48-KB of Boot ROM

• TMS320C674x Floating-Point VLIW DSP

– 64 General-Purpose Registers (32-Bit)

Product Applications

• Video Encode, Decode, Transcode, and Transrate

• Video Infrastructure

• Video Security

• Media Server

• Video Conferencing

• Digital Signage

Product Specification

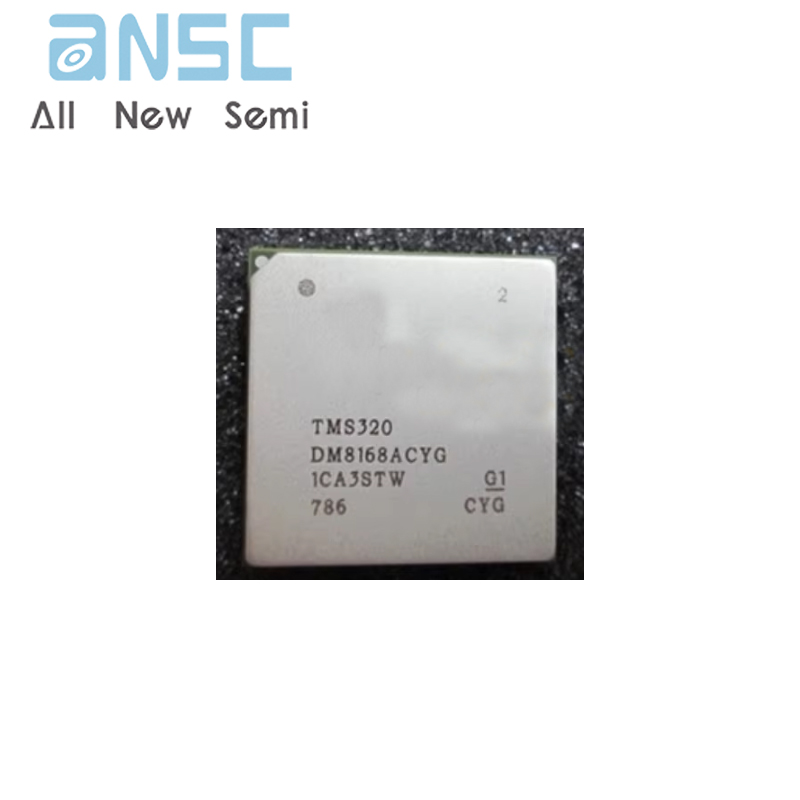

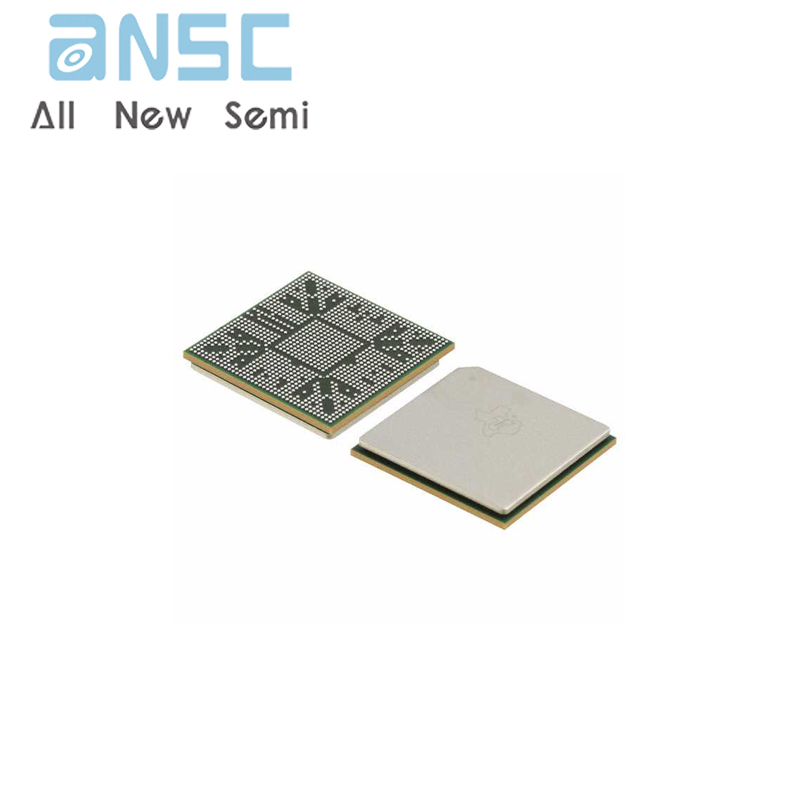

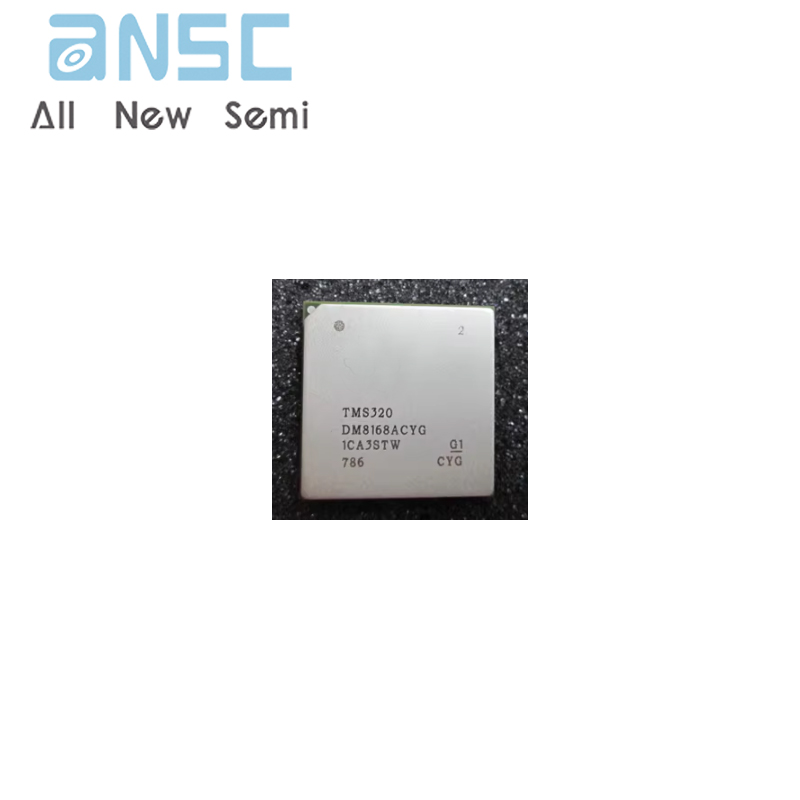

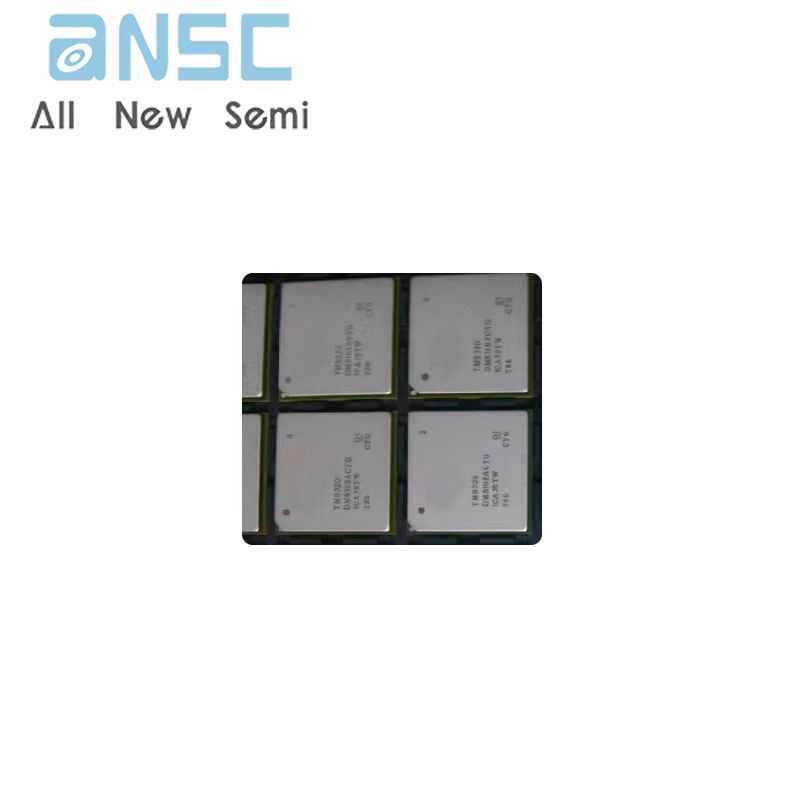

Product Photos

For more product information, please download the PDF
