Hot-selling and scarce GO7007SB-UABG01 Single-Chip Streaming Media Encoder BGA spot stock

Product Features

Output Formats

MPEG-4 Simple Profile @ L3 plus B-frame support; DivX and WISmp4 compatible

MPEG-2 MP @ ML

MPEG-1, H.263, MJPEG

User-defined formats

Video Input

CCIR-601 and CCIR-656 YUV (8-bit) 4:2:2 progressive or interlace; all four types of RGB Bayer

Maximum input size:

NTSC interlaced: 720 x 480 @ 30fps or 720 x 240 @ 60fps

PAL: 720 x 576 @ 25fps or 720 x 288 @ 50fps

Resolution from 64 x 64 to 720 x 576 (16- pixel increments)

Frame rate up to 30fps (full-D1) or 120fps (CIF)

WIS-patented RGB Bayer to YUV conversion (high quality)

WIS-patented de-interlace and 4:2:2 to 4:2:0 conversion

Optional 1:2 horizontal, vertical, or bi-directional scaling

Programmable median, low-pass and edge enhancement filtering (up to 10 run-time adjustable parameters)

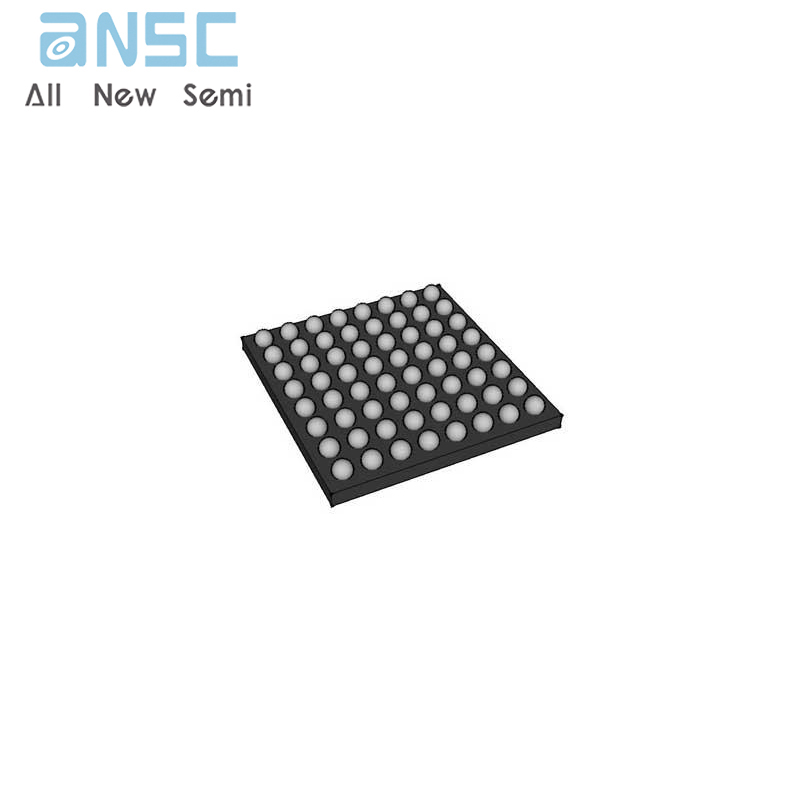

Product Photos

​

For more product information, please download the PDF
