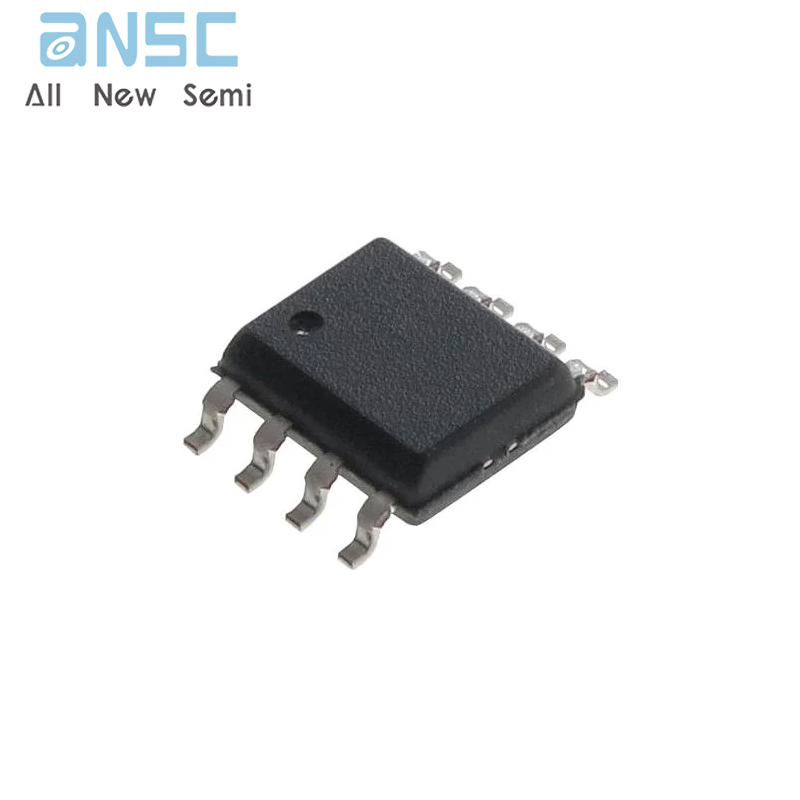

Hot-selling and scarce AP2303MTR-G1 DDR BUS TERMINATION REGULATOR SOP-8 spot stock

Product Descriptions

The AP2303 is a low dropout linear regulator to generate termination  voltage of DDR-SDRAM system. The regulator can source or sink up  to 1.75A current continuously. The output voltage is regulated to track  tightly with the reference voltage (1/2VDDQ) within ±10mV.

The AP2303 supports soft start-up when used to turn on the VCNTL  and VREFEN. It integrates a shutdown circuit that will be triggered  once the voltage of VIN, VCNTL or VREFEN falls below a certain  value.

AP2303 features over temperature protection and current limit  protection for both source and sink.

AP2303 is available in packages of SOIC-8 and PSOP-8.

Product Features

 Support DDR-II (VTT=0.9V), DDR-III (VTT=0.75V), DDR-IIIL (VTT=0.675V), DDR-IV (VTT=0.6V) Application

 Source and Sink up to 1.75A Current

 Output Voltage Accuracy Over Full Load: ±2% (Max.)

 Soft Start-up and Shutdown along with VIN, VCNTL and VREFEN Rising and Shutdown along with VIN, VCNTL and VREFEN Dropping

 Flexible Output by 2 External Resistors

 Requires Minimum 10µF Output Ceramic Capacitor for Application

 Current Limit Protection for Both Source and Sink

 OTSD Protection

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)

Product Applications

 DDR-II/DDR-III/DDR-IIIL/DDR-IV Memory System

 Desktop PC, Notebook Mother Board

 Graphic Card

 STB, LCD-TV, Web-TV

Product Specification

Product Photos

For more product information, please download the PDF
