Hot-selling and scarce SE2595L Dual-Band 802.11n Wireless LAN Front-End QFN spot stock

Product Descriptions

The SE2595L is a complete 802.11n WLAN RF frontend module providing all the functionality of the  power amplifiers, LNA, power detector, T/R switch,  diplexers and associated matching. The SE2595L provides a complete 2.4 GHz and 5 GHz WLAN Multiple  Input, Multiple Output (MIMO) RF solution from the  output of the transceiver to the antennas in a compact  form factor.

The receive path is designed to maximize performance  by providing both a low noise amplifier as well as a  bypass state, for use when high power signals are  being received.

Designed for ease of use, all RF ports are matched to  50 Ω to simplify PCB layout and the interface to the  transceiver RFIC. The SE2595L also includes a transmitter power detector for each band with 20 dB of  dynamic range. The power ramp rise/fall time is less  than 0.5 µs.

The device also provides band pass filters for both the  a and b/g bands prior to the input of each 2.4 GHz and  5 GHz power amplifiers, respectively.

Product Features

• One transmit and one receive path architecture for use as MIMO building block

• All RF ports matched to 50 Ω

• Integrated 2.4/5 GHz PA, 2.4/5 GHz LNA, TX filter, T/R switches and diplexers

• Integrated power detector

• 19 dBm O/P power, 802.11b, 11 Mbits, ACPR = 32 dBc

• 18 dBm @ 3.0% EVM, 802.11g, 54 Mbits

• 16 dBm @ 3.0% EVM, 802.11a, 54 Mbits

• Single supply voltage: 3.3 V ±10%

• Lead free, halogen free and RoHS compliant

• Thin lead free plated package, 4 mm x 6 mm x 0.9 mm, MSL 3

Product Applications

• 802.11n, MIMO solutions

• IEEE802.11b DSSS WLAN

• IEEE802.11g OFDM WLAN

• IEEE802.11a OFDM WLAN

• Access points, PCMCIA, PC cards

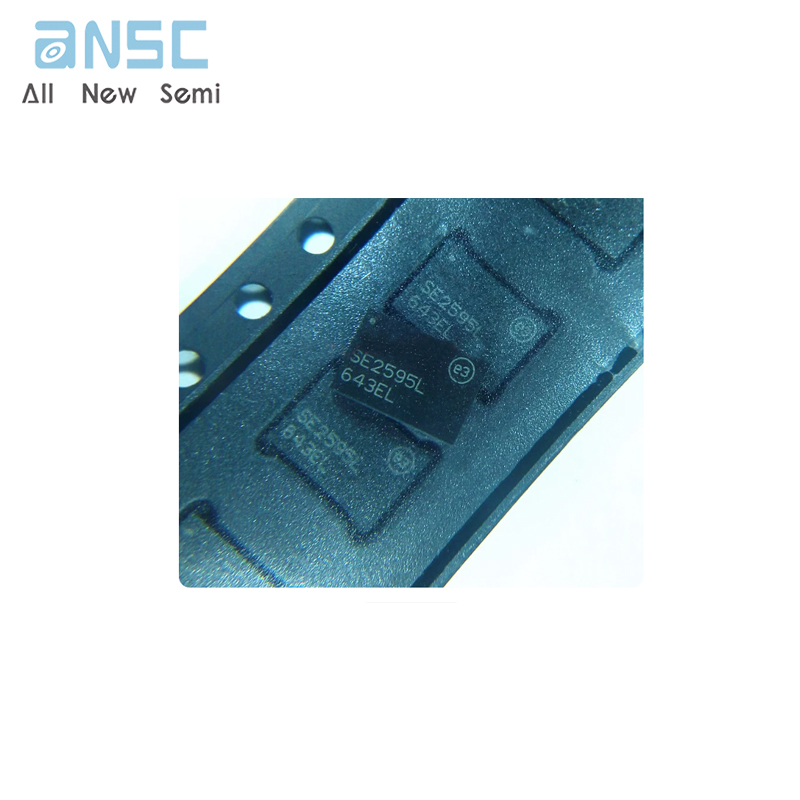

Product Photos

For more product information, please download the PDF
