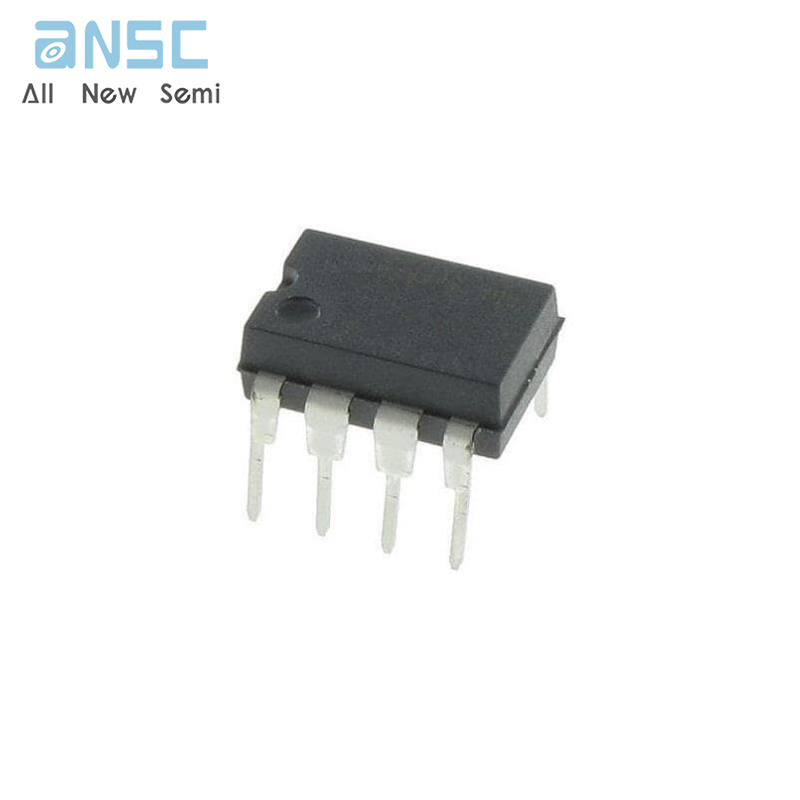

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce DS1013M-15 3-in-1 Silicon Delay Line DIP8 spot stock
Manufacturer Product Number
DS1013M-15
Description
DS1013M-15 3-in-1 Silicon Delay Line DIP8 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
All-silicon time delay
3 independent buffered delays
Delay tolerance ±2ns for -10 through –60
Stable and precise over temperature and voltage range
Leading and trailing edge accuracy
Economical
Auto-insertable, low profile
Standard 14-pin DIP, 8-pin DIP, or 16-pin SOIC
Low-power CMOS
TTL/CMOS-compatible
Vapor phase, IR and wave solderable
Custom delays available
Quick turn prototypes
Extended temperature ranges available
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DS1013M-15 |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Delay Lines | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Function | Multiple, NonProgrammable |
| Delay to 1st Tap | 15ns |
| Available Total Delays | 15ns |
| Number of Independent Delays | 3 |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | DS1013 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
DS1013M-15 3-in-1 Silicon Delay Line DIP8 spot stock
56In stock:
Can ship immediately
