Hot-selling and scarce FDN340P Single P-Channel, Logic Level, Power Trench MOSFET SOT23 spot stock
Manufacturer Product Number
FDN340P
Description
FDN340P Single P-Channel, Logic Level, Power Trench MOSFET SOT23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This P-Channel Logic Level MOSFET is produced using Fairchild Semiconductor advanced Power Trench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.
These devices are well suited for portable electronics applications:load switching and power management, battery charging circuits,and DC/DC conversion.
Product Features
• –2A,20 V
RDS(ON)=70 mΩ @ VGS =–4.5 V
RDS(ON)=110 mΩ @ VGS =–2.5 V
• Low gate charge (7.2 nC typical).
• Highperformance trenchtechnologyfor extremely low RDS(ON).
• Highpower versionofindustryStandardSOT-23 package. Identical pin-out to SOT-23with30 percent higher power handlingcapability
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FDN340P |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 779 pF @ 10 V |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | FDN340 |

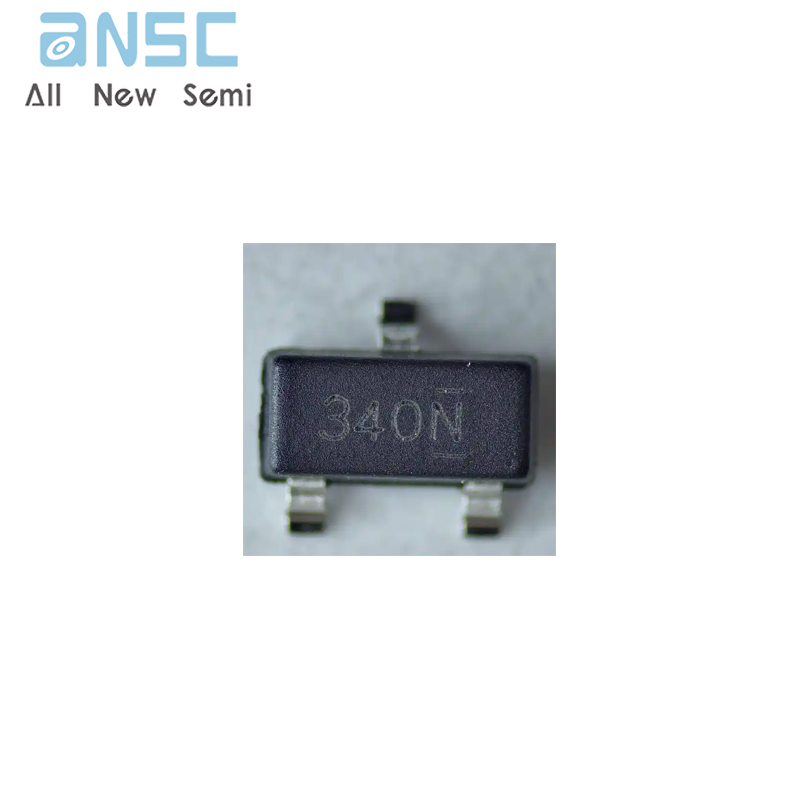

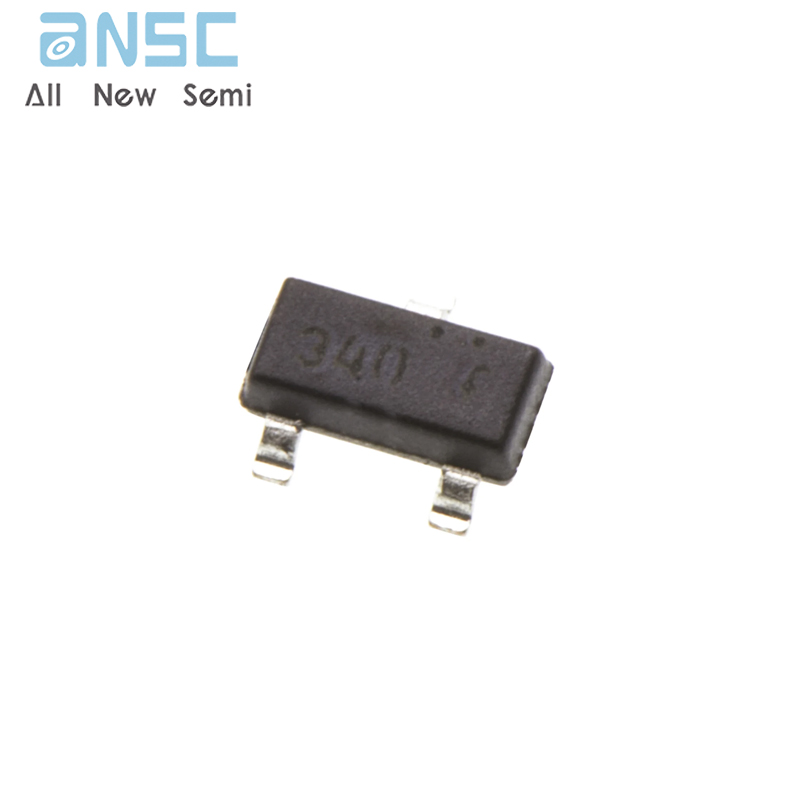

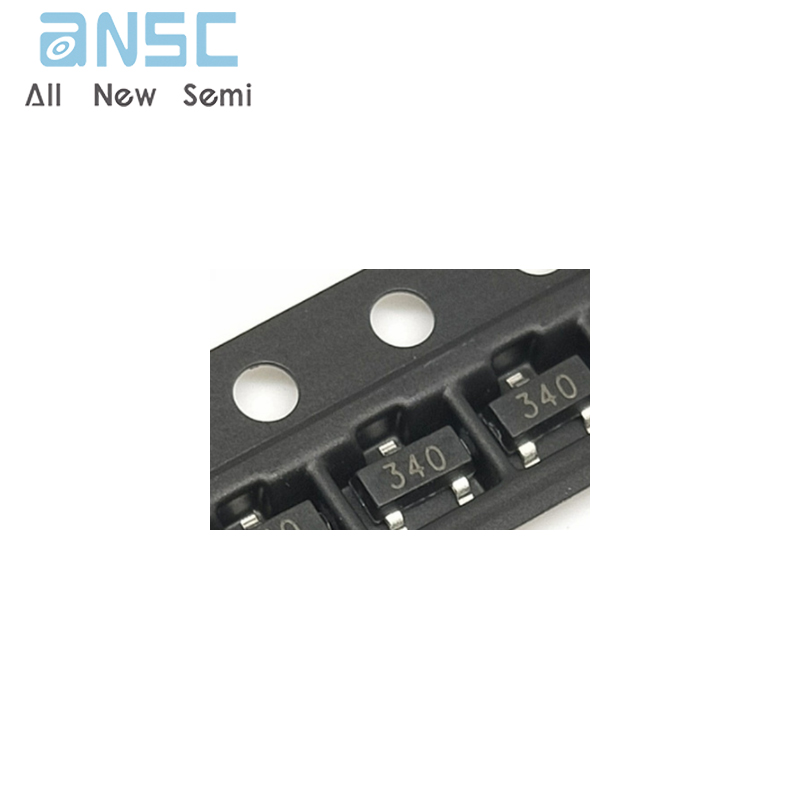

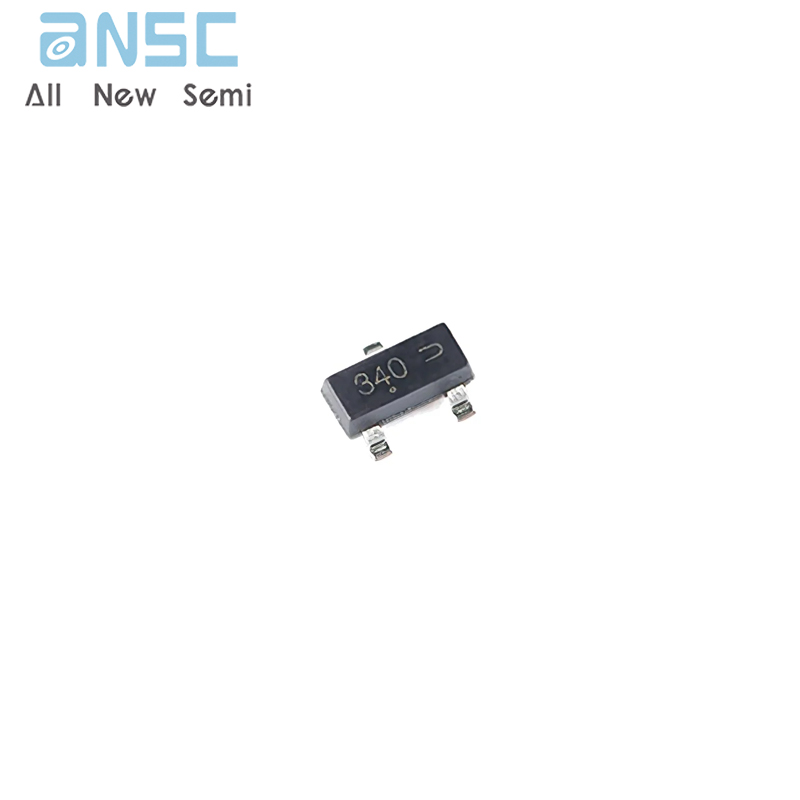

Product Photos
For more product information, please download the PDF
