Hot-selling and scarce ADUM2201ARWZ Dual-Channel Digital Isolators SOP16 spot stock

Product Descriptions

The ADuM220x ¹  are 2-channel digital isolators based on AnalogDevices, Inc., iCoupler®technology. Combining high speed CMOSand monolithic air core transformer technology,these isolationcomponents provide outstanding performance characteristics thatare superior to alternatives such as optocoupler devices .

By avoiding the use of LEDs and photodiodes, iCouplerdevices remove the design difficulties commonly associatedwith optocouplers . Typical optocoupler concerns regardinguncertain current transfer ratios, nonlinear transfer functions,and temperature and lifetime effects are eliminated with thesimple iCoupler digital interfaces and stable performancecharacteristics . The need for external drivers and other discretecomponents is eliminated with these iCoupler products .Furthermore, iCoupler devices run at one-tenth to one-sixththe power of optocouplers at comparable signal data rates

The ADuM220x isolators provide two independent isolationchannels in a variety of channel configurations and data rates(see the Ordering Guide). The ADuM220x models operate withthe supply voltage of either side ranging from 3.0 V to 5.5 V,providing compatibility with lower voltage systems as well asenabling voltage translation functionality across the isolationbarrier. In addition, the ADuM220x provide low pulse widthdistortion (<3 ns for BRWZ grade) and tight channel-tochannel matching (<3 ns for BRWZ grade). Unlike otheroptocoupler alternatives, the ADuM220x isolators have apatented refresh feature that ensures dc correctness in theabsence of input logic transitions and during power-up/powerdown conditions .

Product Features

High isolation voltage: 5000 V rms

Low power operation

5 V operation

1.6 mA per channel maximum @ 0 Mbps to 2 Mbps

3.7 mA per channel maximum @ 10 Mbps

3 V operation

1.4 mA per channel maximum @ 0 Mbps to 2 Mbps

2.4 mA per channel maximum @ 10 Mbps

Bidirectional communication

3 V/5 V level translation

High temperature operation: 105°C

High data rate: dc to 10 Mbps (NRZ)

Precise timing characteristics

3 ns maximum pulse width distortion

3 ns maximum channel-to-channel matching

High common-mode transient immunity: >25 kV/μs

16-lead SOIC wide body package (RoHS-compliant

models available)

Safety and regulatory approvals

UL recognition: 5000 V rms for 1 minute per UL 1577

(pending)

CSA Component Acceptance Notice #5A (pending)

IEC 60950-1: 600 V rms (reinforced)

IEC 60601-1: 250 V rms (reinforced)

VDE certificate of conformity (pending)

DIN V VDE V 0884-10 (VDE V 0884-10):2006-12

VIORM = 846 V peak

Product Applications

General-purpose, high voltage, multichannel isolation

Medical equipment

Power supplies

RS-232/RS-422/RS-485 transceiver isolation

Product Specification

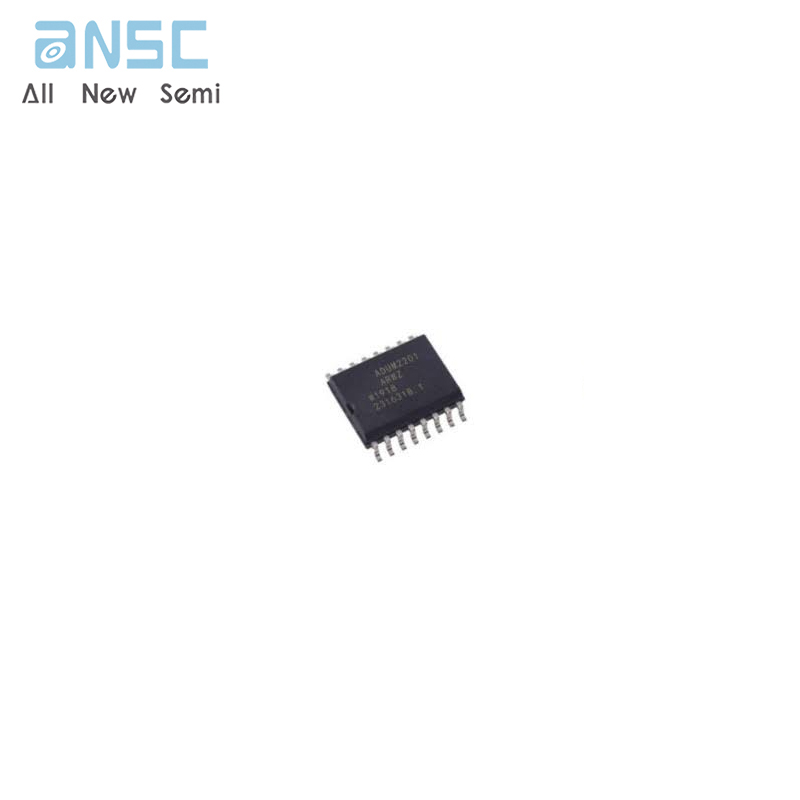

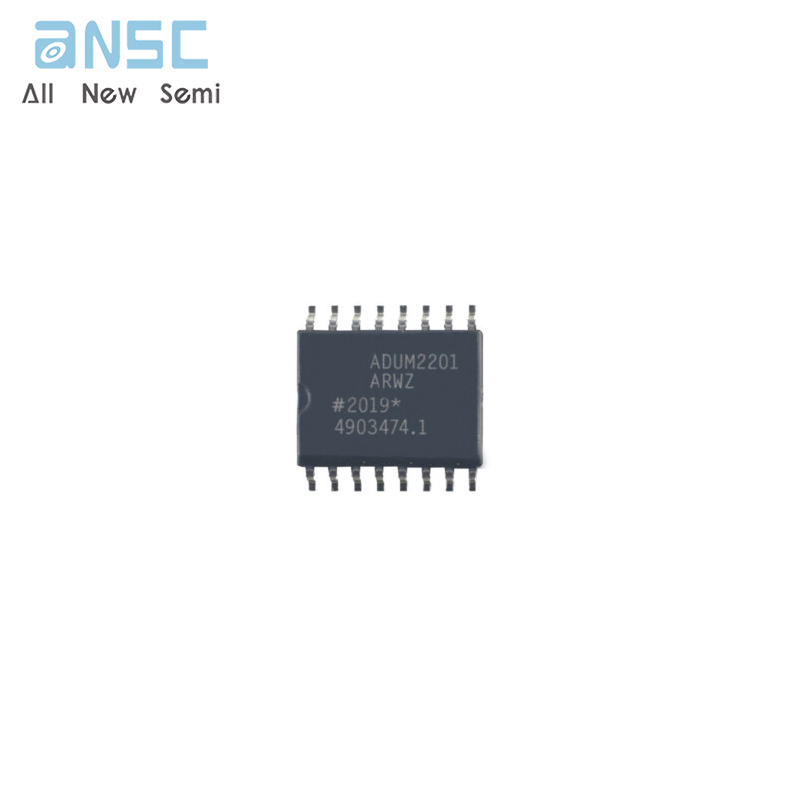

Product Photos

For more product information, please download the PDF
