Hot-selling and scarce SKY65971-11 2 GHz, 256 QAM Low-Noise Amplifier IC QFN-6 spot stock

Product Descriptions

The SKY65971-11 is an ultra Low-Noise Amplifier (LNA) intendedfor 2 GHz, 256 Quadrature Amplitude Modulation (QAM) wirelessreceiver applications . Its industry-leading Noise Figure (NF),together with high linearity, make it ideal as a first-stage LNA in256 QAM Wireless Local Area Network (WLAN) radios .

Operating with a single supply voltage, the SKY65971-11consumes only 13 mA of current . The device includes a bypassmode for near field applications and to save power when thereceiver is inactive .

The tiny package footprint of the SKY65971-11, requiring onlyfour external components, enables the industry’s smallest PCBarea needed to implement a 2 GHz LNA ​.

Product Features

Ultra-low Noise Figure

2.4 GHz to 2.5 GHz operation

Enable/disable/bypass modes

High IIP3

High gain

2.8 V to 3.6 V single-supply operation

QFN (6-pin, 1.5 x 1.5 mm) package (MSL1, 260 C per JEDEC J-STD-020)

Product Applications

256 QAM, 802.11g/n WLANs

2 GHz ISM radios

Smart phones

Notebooks, netbooks, tablets

Access points, routers, gateways

Wireless video systems

Product Specification

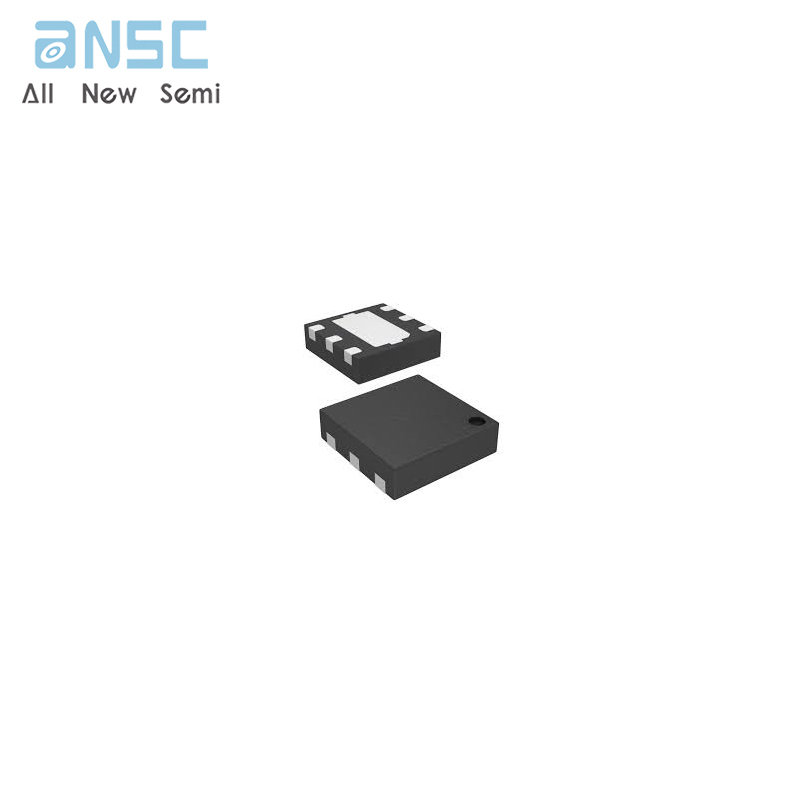

Product Photos

For more product information, please download the PDF
