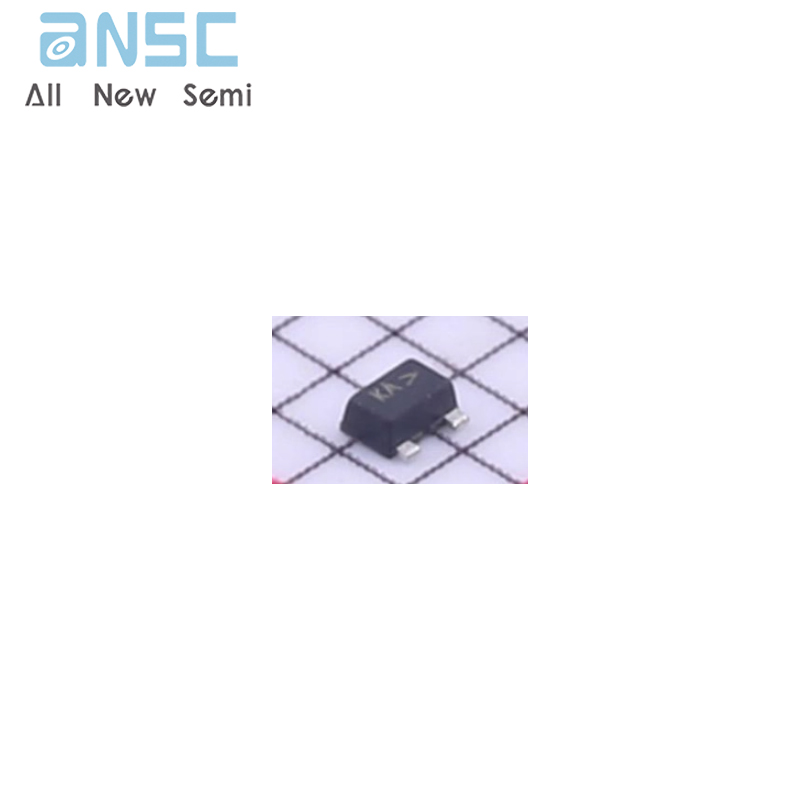

Hot-selling and scarce NTK3043NT1G 20 V, 285 mA Power,N-Channel with ESD Protection, SOT-723

Manufacturer Product Number

NTK3043NT1G

Description

NTK3043NT1G 20 V, 285 mA Power,N-Channel with ESD Protection, SOT-723

Package Condition

TaPe & Reel

Datasheet

NTK3043NT1G

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

• Enables High Density PCB Manufacturing

• 44 PERCENT Smaller Footprint than SC-89 and 38 PERCENT Thinner than SC-89

• Low Voltage Drive Makes this Device Ideal for Portable Equipment

• Low Threshold Levels, VGS(TH) < 1.3 V

• Low Profile (< 0.5 mm) Allows It to Fit Easily into Extremely Thin Environments such as Portable Electronics

• Operated at Standard Logic Level Gate Drive, Facilitating Future Migration to Lower Levels Using the Same Basic Topology

• These are Pb-Free and Halogen-Free Devices

Product Applications

• Interfacing, Switching

• High Speed Switching

• Cellular Phones, PDAs

Product Specification

Attribute	Attribute value
ANSM-Part#	ANSM-NTK3043NT1G
Category	Discrete Semiconductor Products
	Transistors
	FETs, MOSFETs
	Single FETs, MOSFETs
Mfr	-
Packaging	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	210mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.65V, 4.5V
Rds On (Max) @ Id, Vgs	3.4Ohm @ 10mA, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	11 pF @ 10 V
Power Dissipation (Max)	310mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-723
Package / Case	SOT-723
Base Product Number	NTK3043
