Hot-selling and scarce DS125DF410SQ/NOPB Low Power Multi-Rate Quad Channel Retimer WQFN48 spot stock

Product Descriptions

The DS125DF410 is four  channel    retimer  with integrated signal  conditioning. The device includes a fully  adaptive Continuous-Time Linear   Equalizer(CTLE),  self  calibrating 5-tap Decision Feedback Equalizer (DFE),  Clock and Data Recovery (CDR), and transmit De-Emphasis (DE) driver to enable data transmission over long, lossy and crosstalk-impaired highspeed serial links to achieve BER < 1× 10^-15 .

Each channel  can independently lock to data rate from 9.8 to 12.5 Gbps, and associated sub rates (div by 2, 4 and 8) to support a variety of communication protocols. A 25 MHz crystal oscillator clock is used to speed up the CDR lock process. This clock is not used for training the PLL and does not need to be synchronous with the serial data.

The programmable settings can be applied using the SMBus (I2C) interface, or they can be loaded via an external   EEPROM.  An on-chip eye monitor and aPRBS generator  allow real-time measurement  of high-speed serial  data for system bring-up or field tuning.

Product Features

•   Each Channel Independently Locks to Data Rates from 9.8 to 12.5 Gbps and Submultiples

•   Fast Lock Operation Based on Protocol-Select Mode

•   Low Latency (~300ps)

•   Adaptive Equalization up to 34-dB Boost at 5 GHz

•   Adjustable Transmit VOD: 600 to 1300 mVp-p

•   Adjustable Transmit De-emphasis to –15 dB

•   Typical Power Dissipation (EQ+DFE+CDR+DE): 180 mW/Channel

•   Programmable Output Polarity Inversion

•   Input Signal Detection, CDR Lock Detection/Indicator

•   On-Chip Eye Monitor (EOM), PRBS Generator

•   Single 2. 5-V ± 5% Power Supply

•   SMBus/EEPROM Configuration Modes

•   Operating Temperature Range of –40 to 85°C

•   WQFN 48-Pin 7-mm x 7-mm Package

•   Easy Pin Compatible Upgrade Between Repeater and Retimers

– DS100RT410 (EQ+CDR+DE): 10.3125 Gbps

– DS100DF410 (EQ+DFE+CDR+DE): 10.3125 Gbps

– DS110RT410 (EQ+CDR+DE): 8.5–11.3 Gbps

– DS110DF410 (EQ+DFE+CDR+DE): 8.5–11.3 Gbps

– DS125RT410 (EQ+CDR+DE): 9.8–12.5 Gbps

– DS125DF410 (EQ+DFE+CDR+DE): 9.8–12.5 Gbps

– DS100BR410 (EQ+DE): Up to 10.3125 Gbps

Product Applications

•   Front Port SFF 8431 (SFP+) Optical and Direct Attach Copper

•   Backplane Reach Extension, Data Retimer

•   Ethernet: 10 GbE, 1 GbE

•   CPRI: Line Bit Rate Options 3–7

•   Interlaken: All Lane Bit Rates

•   InfiniBand

•   Other Propriety Data Rates up to 12.5 Gbps

Product Specification

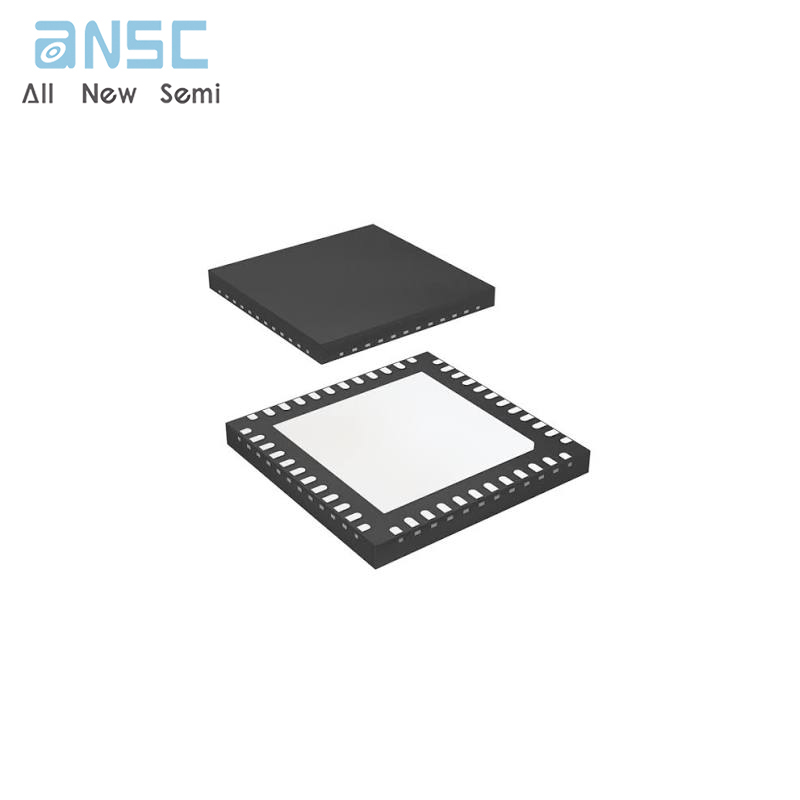

Product Photos

For more product information, please download the PDF
