Hot-selling and scarce BAR6405WH6327XTSA1 Low signal distortion, surface mount RF PIN diode, common cathode pair SOT23
Manufacturer Product Number
BAR6405WH6327XTSA1
Description
BAR6405WH6327XTSA1 Low signal distortion, surface mount RF PIN diode, common cathode pair SOT23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This Infineon cost optimized RF PIN diode is designed for low distortion switches that require to hold off large RF voltages, and is best suited for frequencies as high as 3 GHz. Its nominal 50 μm I-region width, combined with the typical 1.55 μs carrier lifetime, result in a diode with low forward resistance and low distortion characteristics.
Product Features
• Low signal distortion, charge carrier lifetime trr = 1.55 µs (typical)
• Very low capacitance C = 0.25 pF (typical) at voltage VR = 0 and frequencies f ≥ 1 GHz
• Low forward resistance RF
= 2.2 Ω (typical) at forward current IF
= 10 mA and frequency f = 100 MHz
• Industry standard SOT323-3 package (2.1 mm x 2 mm x 0.9 mm)
• Pb-free, RoHS compliant and halogen-free
Product Applications
Optimized for low bias current RF and high-speed interface switches and attenuators
• Wireless communication
• High speed data networks
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BAR6405WH6327XTSA1 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| RF Diodes | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Last Time Buy |
| Diode Type | PIN - 1 Pair Common Cathode |
| Voltage - Peak Reverse (Max) | 150V |
| Current - Max | 100 mA |
| Capacitance @ Vr, F | 0.35pF @ 20V, 1MHz |
| Resistance @ If, F | 1.35Ohm @ 100mA, 100MHz |
| Power Dissipation (Max) | 250 mW |
| Operating Temperature | 150°C (TJ) |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | PG-SOT323 |
| Base Product Number | BAR6405 |

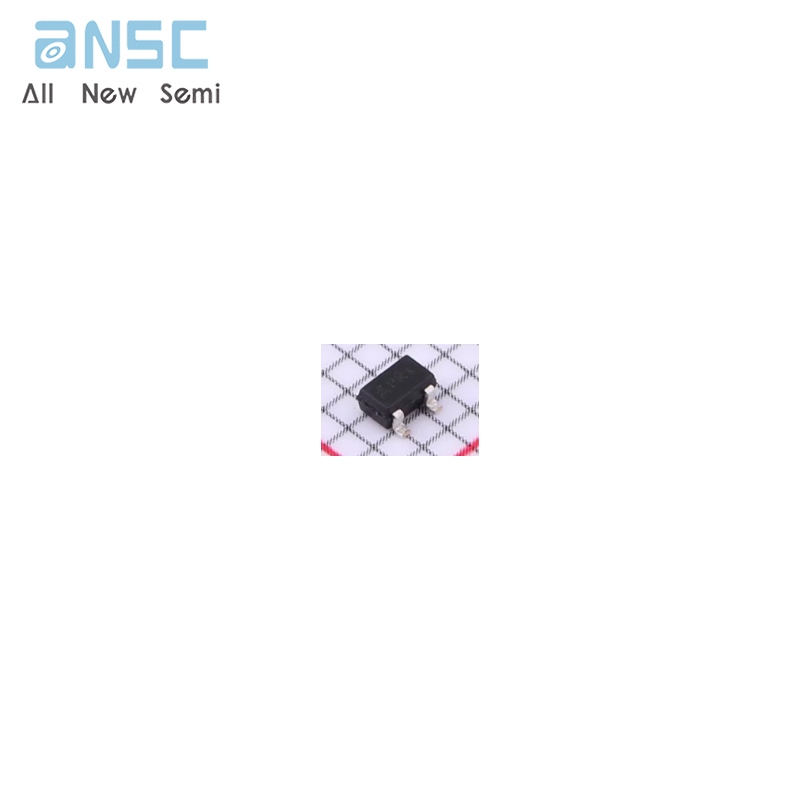

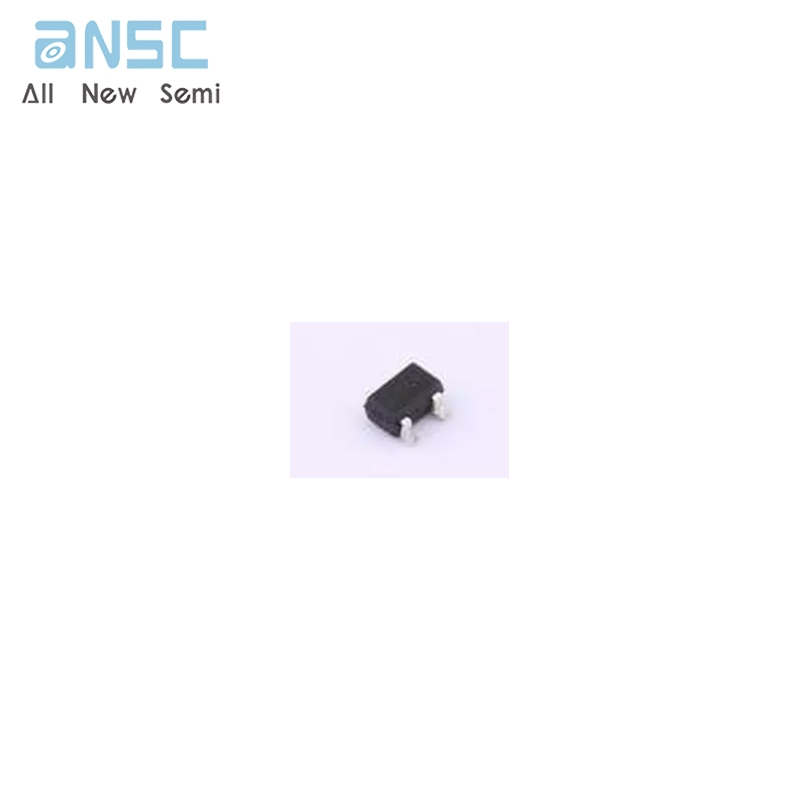

Product Photos
For more product information, please download the PDF
