Hot-selling and scarce MAX153CPP+ 8 Bit Analog to Digital Converter 1 Input 1 Flash 20-PDIP spot stock

Product Descriptions

The MAX153 high-speed,microprocessor (µP)-compatible,8-bit analog-to-digital converter (ADC) uses a half-flash technique to achieve a 660ns conversion time, and digitizes at a rate of 1M samples per second (Msps). It operates with single +5V or dual ±5V supplies and accepts either unipolar  or  bipolar  inputs. A POWERDN  (power-down) pin reduces current consumption to a typical value of 1µA(with 5V supply). The  part  returns from  power-down to normal operating mode in less than 200ns, providing large reductions  in  supply  current  in  applications with  burstmode input signals.

​

The MAX153 is DC and dynamically tested. Its µP interface appears as a  memory  location or  input/output  port that requires no external interface logic. The data outputs use latched, three-state buffered circuitry for direct connection to a µP data bus or system input port. The ADC’s input/ reference arrangement enables ratiometric operation.

Product Features

●660ns Conversion Time

●Power-Up/Power-Down in 200ns

● Internal Track/Hold

● 1Msps Throughput

●Low Power

40mW (Operating Mode)

5µW (Power-Down Mode)

● 1MHz Full-Power Bandwidth

●20-Pin Narrow DIP,SO,and SSOP Packages

●No External Clock Required

●Unipolar/Bipolar Inputs

●Single +5V or Dual ±5V Supplies

●Ratiometric Reference Inputs

Product Applications

●Cellular Telephones

●Portable Radios

●Battery-Powered Systems

●Burst-Mode Data Acquisition

●Digital-Signal Processing

●Telecommunications

●High-Speed Servo Loops

Product Applications

Product Specification

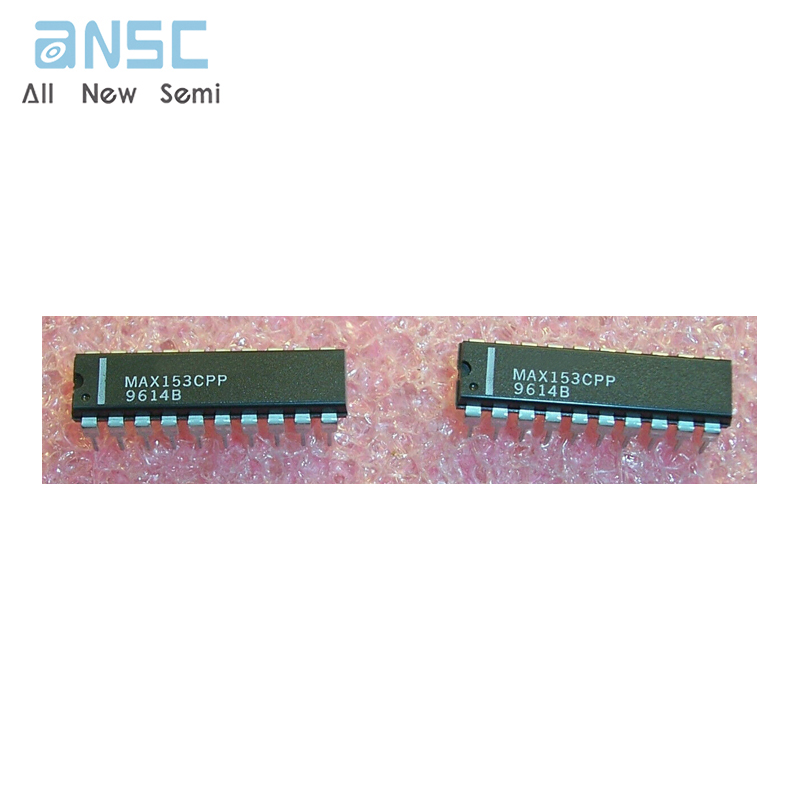

Product Photos

For more product information, please download the PDF
