Hot-selling and scarce ADV7441ABSTZ-5P 10-Bit Integrated, Multiformat SDTV/HDTV Video Decoder QFP144 spot stock

Product Descriptions

The ADV7441A is a high quality multiformat video decoder and graphics digitizer with an integrated 2:1 multiplexed HDMI™ receiver.

The ADV7441A contains two main processing sections. The first section is the standard definition processor (SDP), which processes all types of PAL,NTSC, and SECAM signals.The second section is the component processor (CP),which processes YPrPband RGB component formats, including RGB graphics. The CP also processes the video signals from the HDMI receiver.The ADV7441A can keep the HDCP link between a HDMI source and the selected HDMI port active in analog mode operation.This allows for fast switching between the analog and HDMI modes.

Product Features

Multiformat decoder

Four 10-bit analog-to-digital converters (ADCs)

ADC sampling rates up to 170 MHz

Mux with 12 analog input channels

SCART fast blank sampling support

NTSC/PAL/SECAM color standards support

525p-/625p-component progressive scan formats support

720p-/1080i-/1080p-component HD formats support

Digitizes RGB graphics from VGA to UXGA rates

(up to 1600 × 1200 @ 60 Hz)

VBI data slicer (including teletext)

Analog-to-HDMI fast switching mode

Dual High-Definition Multimedia Interface (HDMI) Rx

2:1 multiplexed HDMI receiver

HDMI 1.3, DVI 1.0

225 MHz HDMI receiver

Repeater support

High-bandwidth digital content protection (HDCP 1.3)

36-bit deep color support

S/PDIF (IEC60958-compatible) digital audio output

Multichannel I2S audio output (up to 8 channels)

Adaptive equalizer for cable lengths up to 30 meters

Internal EDID RAM

General

Highly flexible output interface

STDI function support standard identification

2 any-to-any 3 × 3 color-space conversion matrices

Programmable interrupt request output pins

Product Applications

Advanced TVs

PDP HDTVs

LCD TVs (HDTV ready)

LCD/DLP® rear projection HDTVs

CRT HDTVs

LCoS® HDTVs

Audio/video receivers (AVR)

LCD/DLP front projectors

HDTV STBs with PVR

DVD recorders with progressive scan input support

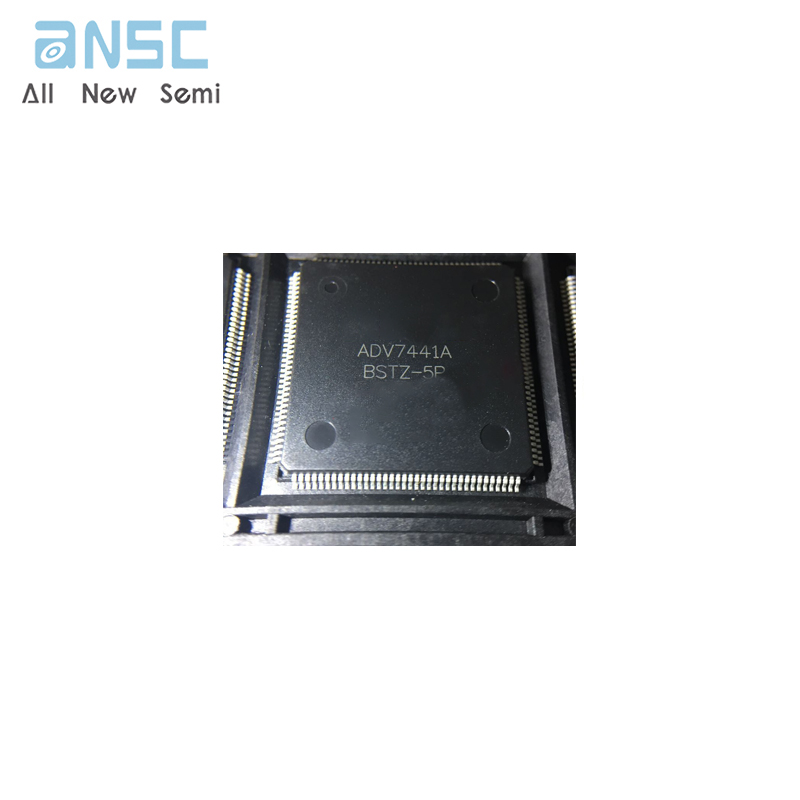

Product Photos

For more product information, please download the PDF
