Hot-selling and scarce ADUM5000ARWZ 2.5 kV, Isolated DC-to-DC Converter SOP16 spot stock
Manufacturer Product Number
ADUM5000ARWZ
Description
ADUM5000ARWZ 2.5 kV Isolated DC-to-DC Converter SOP16 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADuM50001 is an isolated dc-to-dc converter based on the Analog Devices, Inc., iCoupler® technology. The dc-to-dc converter in this device provides regulated, isolated power in several combinations of input and output voltages as listed in Table 1.
The Analog Devices chip scale transformer, iCoupler technology, transfers isolated power in this dc-to-dc converter with up to 33% efficiency. The result is a small form factor, total isolation solution.
Product Features
isoPower integrated, isolated dc-to-dc converter
Regulated 3.3 V or 5 V output
Up to 500 mW output power
16-lead SOIC package with 7.6 mm creepage
High temperature operation: 105°C maximum
Thermal overload protection
Safety and regulatory approvals
UL recognition
2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
VDE certificate of conformity (pending)
IEC 60747-5-2 (VDE 0884, Part 2)
VIORM = 560 V peak
Product Applications
RS-232/RS-422/RS-485 transceivers
Industrial field bus isolation
Power supply startups and gate drives
Isolated sensor interfaces
Industrial PLCs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADUM5000ARWZ |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | - |
| Series | isoPower® |
| Packaging | Tube |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 3.3V, 5V |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 500 mW |
| Voltage - Isolation | 2.5 kV |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Size / Dimension | 0.41" L x 0.30" W x 0.10" H (10.5mm x 7.6mm x 2.7mm) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADUM5000 |

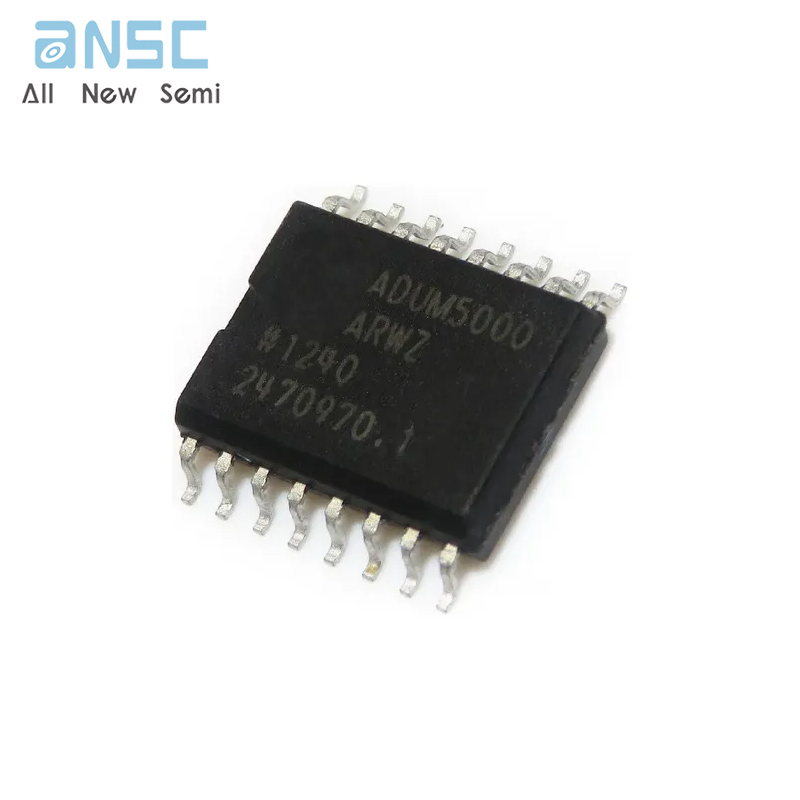

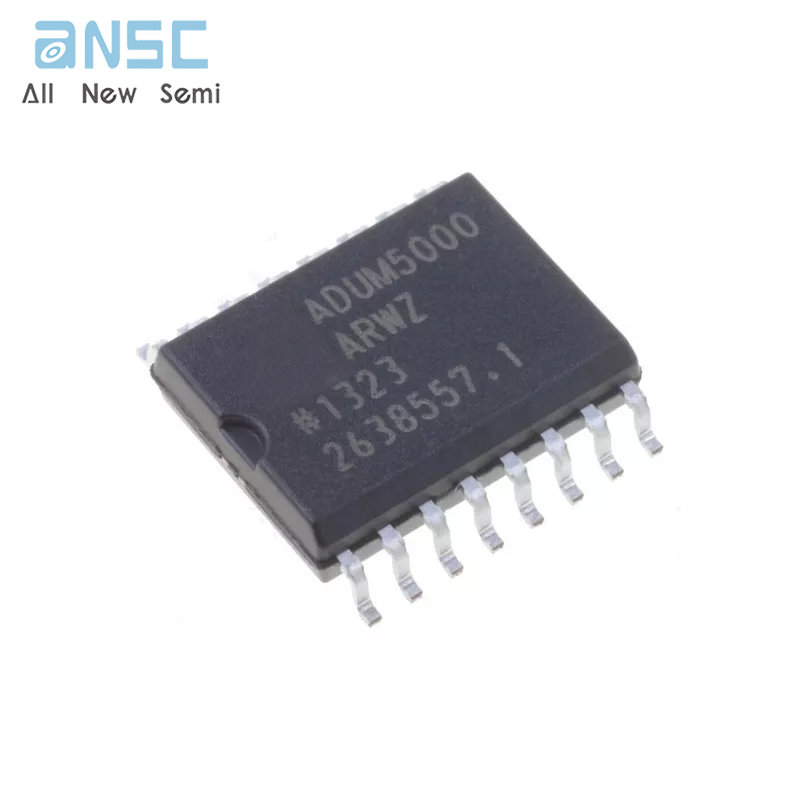

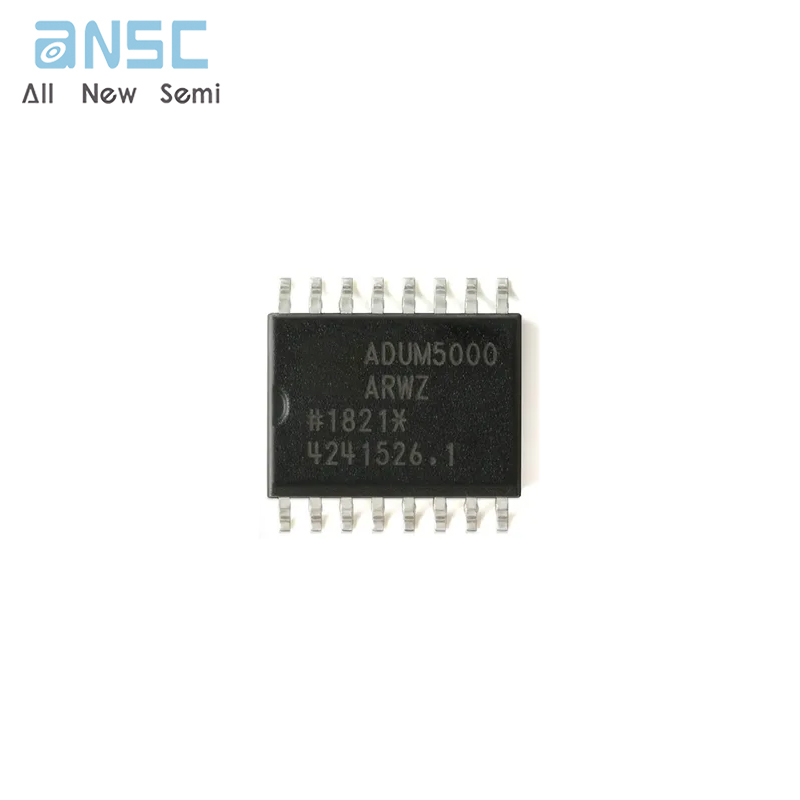

Product Photos
For more product information, please download the PDF
