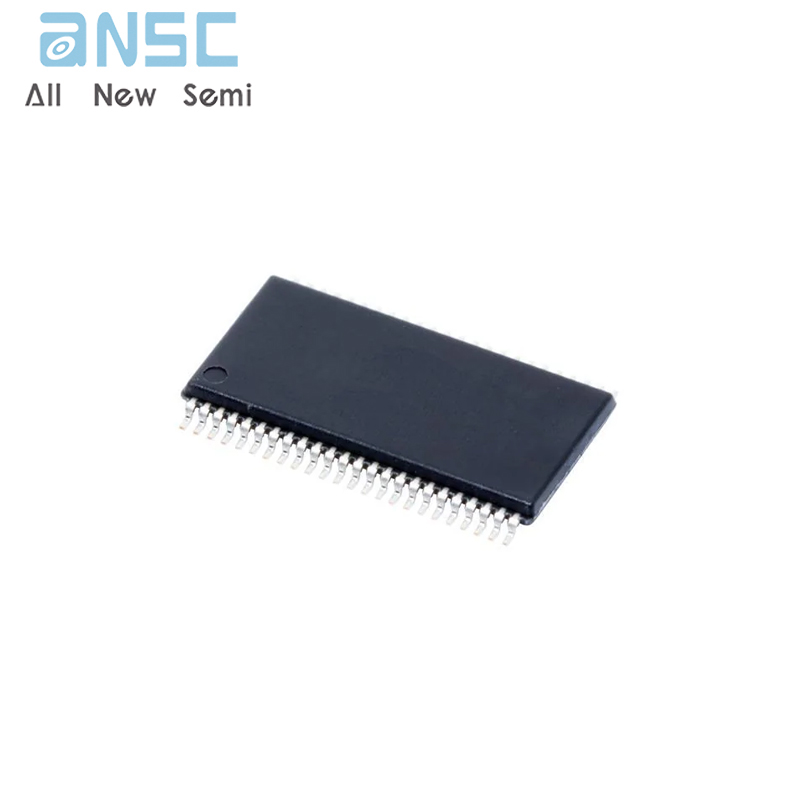

Hot-selling and scarce SN74AVC16373DGGR 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS TSSOP48 spot stock

Product Descriptions

A Dynamic Output Control (DOC™) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOC™) Circuitry Technology and Applications, literature number SCEA009.​

Product Features

• EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process

• DOC™ (Dynamic Output Control) Circuit Dynamically Changes Output Impedance, Resulting in Noise Reduction Without Speed Degradation

• Dynamic Drive Capability Is Equivalent to Standard Outputs With IOH and IOL of ±24 mA at 2.5-V VCC

• Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications

• Ioff Supports Partial-Power-Down Mode Operation

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 200-V Machine Model (A115-A)

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• Package Options Include Plastic Thin Shrink Small-Outline (DGG) and Thin Very Small-Outline (DGV) Packages
