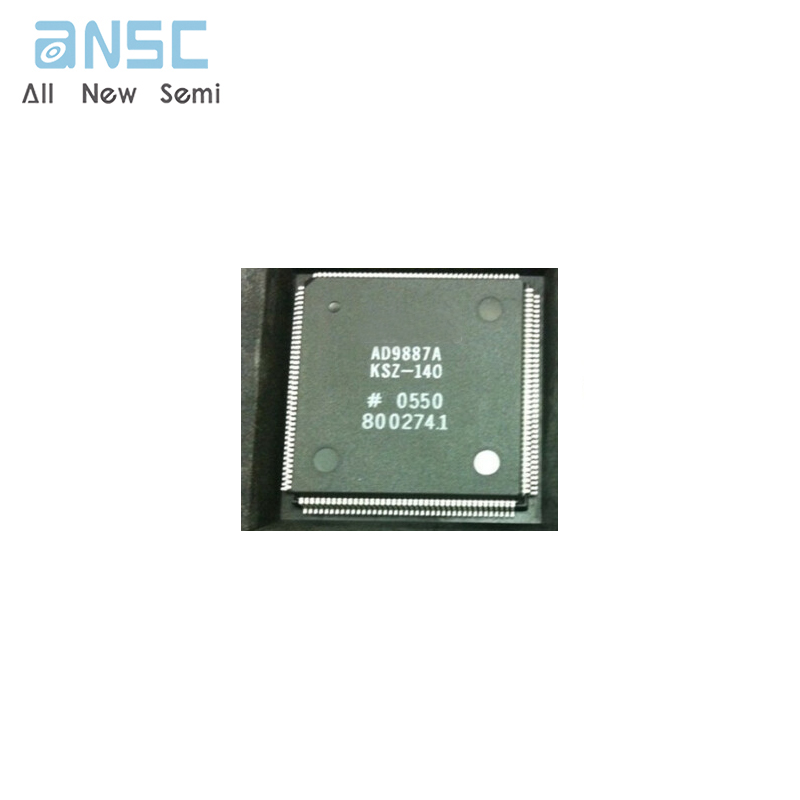

Hot-selling and scarce AD9887AKSZ-140 Dual Interface for Flat Panel Displays MQFP-160 spot stock

Product Descriptions

The AD9887A offers designers the flexibility of an analog interfaceand digital visual interface (DVI) receiver integrated on a singlechip .Also included is support for High Bandwidth Digital ContentProtection (HDCP). The AD9887A is software and pin-to-pincompatible with the AD9887 .

Analog Interface

The AD9887A is a complete 8-bit 170 MSPS monolithic analoginterface optimized for capturing RGB graphics signals frompersonal computers and workstations . Its 170 MSPS encoderate capability and full-power analog bandwidth of 330 MHzsupports resolutions up to UXGA (1600 × 1200 at 60 Hz).

The analog interface includes a 170 MHz triple ADC withinternal 1.25 V reference, a phase-locked loop (PLL), and programmable gain, offset, and clamp control . The user providesonly a 3.3 V power supply, analog input, and HSYNC . Threestate CMOS outputs may be powered from 2.5 V to 3.3 V .

Product Features

Analog Interface

170 MSPS Maximum Conversion Rate

Programmable Analog Bandwidth

0.5 V to 1.0 V Analog Input Range

500 ps p-p PLL Clock Jitter at 170 MSPS

3.3 V Power Supply

Full Sync Processing

Midscale Clamping

4:2:2 Output Format Mode

Digital Interface

DVI 1.0 Compatible Interface

170 MHz Operation (2 Pixel/Clock Mode)

High Skew Tolerance of 1 Full Input Clock

Sync Detect for“Hot Plugging”

Supports High Bandwidth Digital Content Protection

Product Applications

RGB Graphics Processing

LCD Monitors and Projectors

Plasma Display Panels

Scan Converters

Micro Displays

Digital TVs

Product Specification

Product Photos

For more product information, please download the PDF
