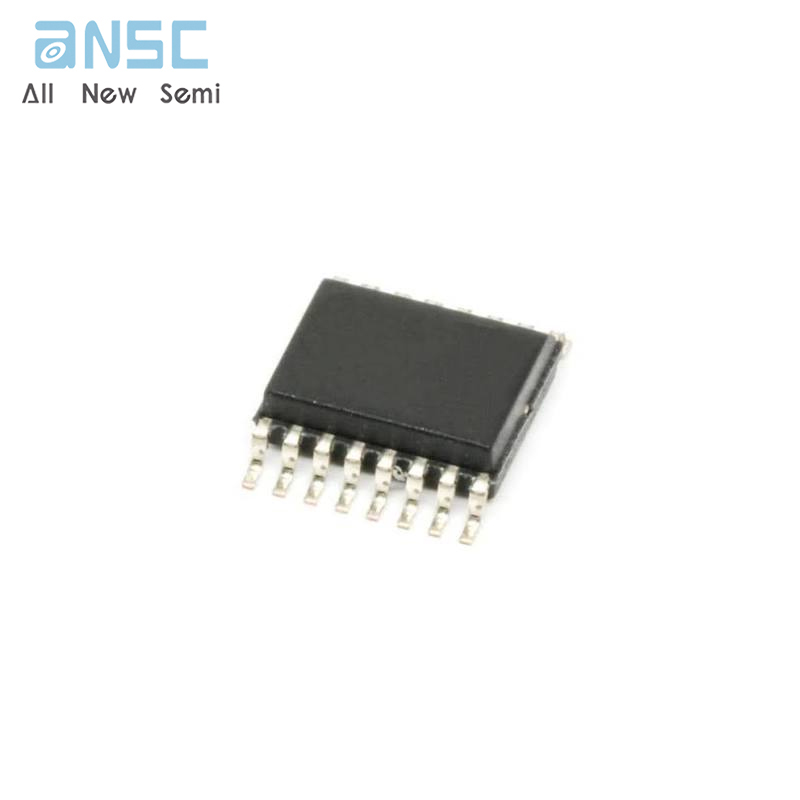

Hot-selling and scarce AD5317BRUZ 10 Bit Digital to Analog Converter 4 16-TSSOP spot stock

Product Descriptions

The AD5307/AD5317/AD5327¹  are quad 8-,10-,12-bit bufferedvoltage-output DACs in 16-lead TSSOP that operate from single2.5 V to 5.5 V supplies and consume 400 μA at 3 V. Their onchip output amplifiers allow the outputs to swing rail-to-rail witha slew rate of 0.7 V/μs . The AD5307/AD5317/AD5327 utilizeversatile 3-wire serial interfaces that operate at clock rates up to30 MHz; these parts are compatible with standard SPI, QSPI,MICROWIRE, and DSP interface standards .

The references for the four DACs are derived from two referencepins (one per DAC pair).These reference inputs can be configuredas buffered or unbuffered inputs. Each part incorporates a poweron reset circuit, ensuring that the DAC outputs power up to 0 Vand remain there until a valid write to the device takes place .There is also an asynchronous active low CLR pin that clears allDACs to 0 V. The outputs of all DACs can be updated simultaneously using the asynchronous LDAC input. Each partcontains a power -down feature that reduces the currentconsumption of the device to 300 nA @ 5 V (90 nA @ 3 V).Theparts can also be used in daisy-chaining applications using theSDO pin .

All three parts are offered in the same pinout, allowing users toselect the amount of resolution appropriate for their applicationwithout redesigning their circuit board .

Product Features

Low power operation: 400 μA @ 3 V, 500 μA @ 5 V

2.5 V to 5.5 V power supply

Guaranteed monotonic by design over all codes

Power down to 90 nA @ 3 V, 300 nA @ 5 V (LDAC pin)

Double-buffered input logic

Buffered/unbuffered reference input options

Output range: 0 V to VREF or 0 V to 2 VREF

Power-on reset to 0 V

Simultaneous update of outputs (LDAC pin)

Asynchronous clear facility (CLR pin)

Low power, SPI®-, QSPI™-, MICROWIRE™-, and DSP-

compatible 3-wire serial interface

SDO daisy-chaining option

On-chip rail-to-rail output buffer amplifiers

Temperature range of −40°C to +105°C

Product Applications

Portable battery-powered instruments

Digital gain and offset adjustment

Programmable voltage and current sources

Programmable attenuators

Industrial process control

Product Specification

Product Photos

For more product information, please download the PDF
