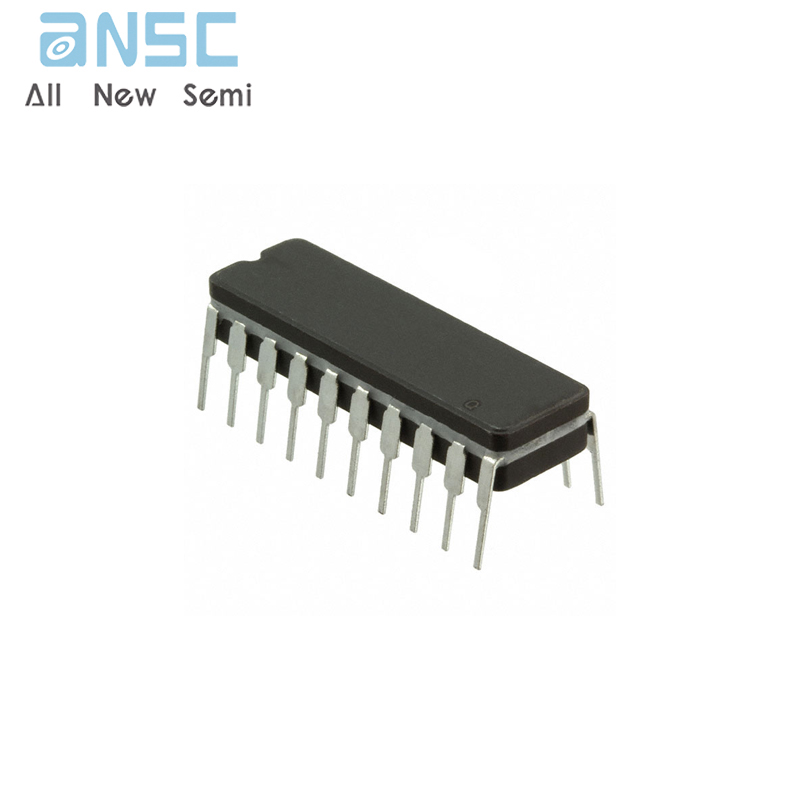

Hot-selling and scarce IDT54FCT245TDB FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS CDIP20 spot stock

Product Descriptions

The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology. The FCT245T/ FCT2245T, FCT640T and FCT645T are designed for asynchronous two-way communication between data buses. The transmit/receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active HIGH) enables data from A ports to B ports, and receive (active LOW) from B ports to A ports. The output enable (OE) input, when HIGH, disables both A and B ports by placing them in HIGH Z condition.

The FCT245T/FCT2245T and FCT645T transceivers have non-inverting outputs. The FCT640T has inverting outputs.

The FCT2245T has balanced drive outputs with current limiting resistors. This offers low ground bounce, minimal undershoot and controlled output fall times- reducing the need for external series terminating resistors. The FCT2xxxT parts are plug-in replacements for FCTxxxT parts.

Product Features

• Common features:

– Low input and output leakage ≤1µA (max.)

– CMOS power levels

– True TTL input and output compatibility

– VOH = 3.3V (typ.)

– VOL = 0.3V (typ.)

– Meets or exceeds JEDEC standard 18 specifications

– Product available in Radiation Tolerant and Radiation Enhanced versions

– Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)

– Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages

• Features for FCT245T/FCT640T/FCT645T:

– Std., A, C and D speed grades

– High drive outputs (-15mA IOH, 64mA IOL)

• Features for FCT2245T:

– Std., A and C speed grades

– Resistor outputs (-15mA IOH, 12mA IOL Com.) (-12mA IOH, 12mA IOL Mil.)

– Reduced system switching noise
