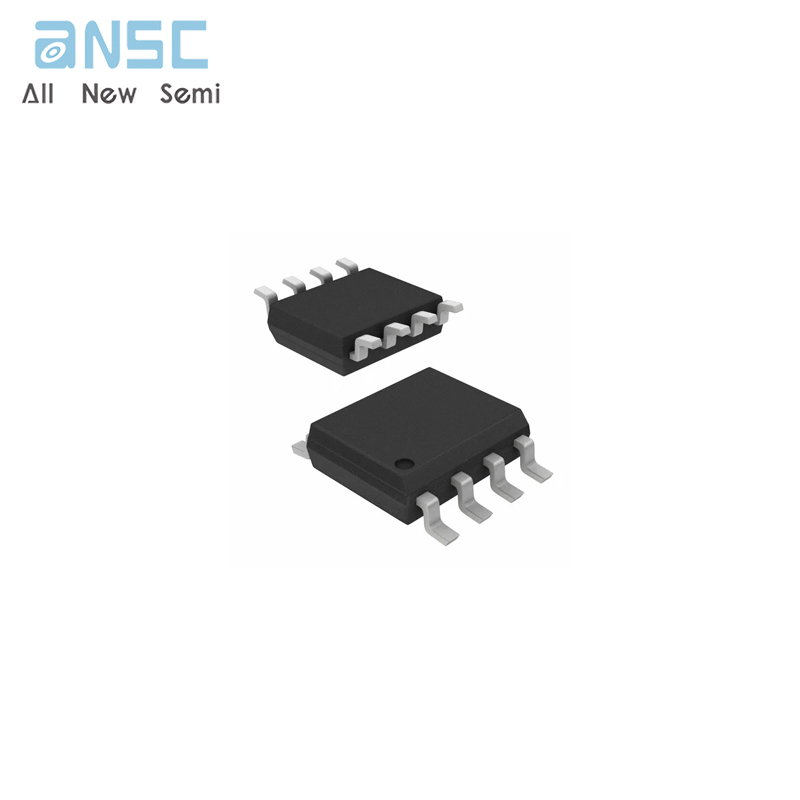

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce AO4452 N-Channel 100V 8A (Ta) 3.1W (Ta) Surface Mount 8-SOIC spot stock
Manufacturer Product Number
AO4452
Description
AO4452 N-Channel 100 V 8A (Ta) 3.1W (Ta) Surface Mount 8-SOIC spot stock
Package Condition
TaPe & Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AO4452 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | SDMOS™ |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 50 V |
| Power Dissipation (Max) | 3.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | AO44 |
