Spot sales of CD4071BCN Quad 2-Input OR Buffered B Series Gate . Quad 2-Input AND Buffered B Series Gate DIP-14
Manufacturer Product Number
CD4071BCN
Description
CD4071BCN Quad 2-Input OR Buffered B Series Gate . Quad 2-Input AND Buffered B Series Gate DIP-14
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The CD4071BC and CD4081BC quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain.
All inputs protected against static discharge with diodes to VDD and VSS.
Product Features
■ Low power TTL compatibility:
Fan out of 2 driving 74L or 1 driving 74LS
■ 5V–10V–15V parametric ratings
■ Symmetrical output characteristics
■ Maximum input leakage 1 µA at 15V over full temperature range
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4071BCN |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 15V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 70ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-MDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | CD4071 |

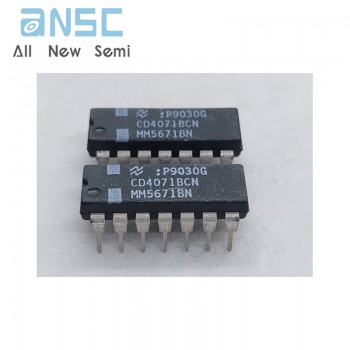

Product Photos
For more product information, please download the PDF
