Hot-selling and scarce P2020NSE2MHC QorIQ P2010 and P2020 Processors BGA

Product Descriptions

The QorIQ mid-performance tier, which includes the P2020 (dual-core processor) and P2010 (single-core processor) communications processors, delivers high single-threaded performance per watt for a wide variety of applications in the networking, telecom, military and industrial markets. These P2 devices deliver dual- and single-core frequencies up to 1.2 GHz on a 45 nm technology low-power platform.

The QorIQ P2020 and P2010 dual- and single-core products are pin compatible with the QorIQ P1 family devices in the valueperformance tier, offering four interchangeable cost-effective solutions. Scaling from a singlecore processor at 533 MHz (P1011) to a dualcore processor at 1.2 GHz (P2020), the two tiers of devices together deliver an impressive 4.5x aggregate frequency range within the same pinout.

The P2010 and P2020 devices are software compatible, sharing the e500 Power Architecture® core and peripherals, as well as being fully software compatible with the existing PowerQUICC processors. This enables customers to create a product with multiple performance points from a single board design. The P2020 and P1020 dual-core processors support symmetric and asymmetric multiprocessing, enabling customers to scale performance through either thread-level or application-level parallelism.

Product Features

• Dual (P2020) or single (P2010) highperformance Power Architecture e500 cores

• 36-bit physical addressing

• Double-precision floating-point support

• 32 KB L1 instruction cache and 32 KB L1 data cache for each core

• 800 MHz to 1.2 GHz clock frequency

• 512 KB L2 cache with ECC. Also configurable as SRAM and stashing memory.

• Three 10/100/1000 Mb/s enhanced threespeed Ethernet controllers

• TCP/IP acceleration and classification capabilities

• IEEE 1588 support

• Lossless flow control

• R/G/MII, R/TBI, SGMII

• FIFO interfaces

• High-speed interfaces supporting various multiplexing options

• Four SerDes to 3.125 GHz multiplexed across controllers

• Three PCI Express interfaces

• Two Serial RapidIO interfaces

• Two SGMII interfaces

• High-Speed USB controller (USB 2.0)

• Host and device support

• Enhanced host controller interface

• ULPI interface to PHY

• Enhanced secure digital host controller(SD/MMC)

Product Specification

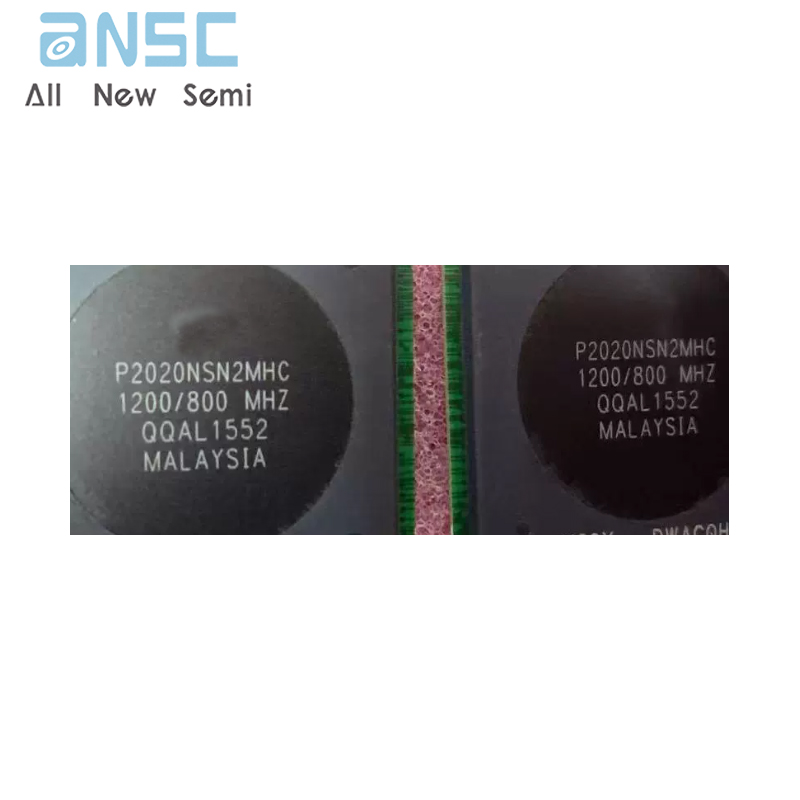

Product Photos

For more product information, please download the PDF
