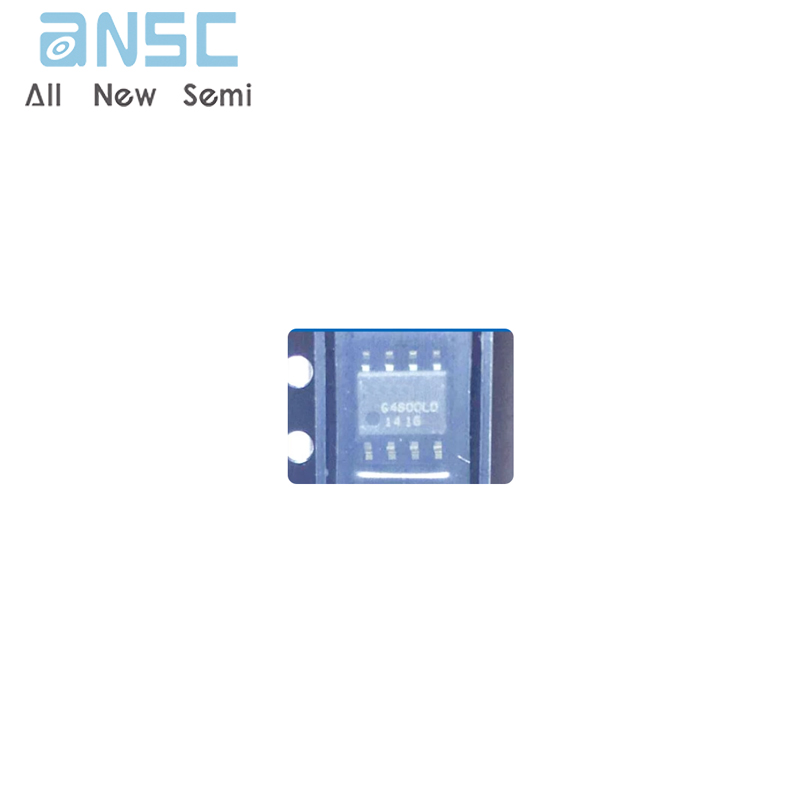

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce DMG4800LSD-13 DUAL N-CHANNEL ENHANCEMENT MODE MOSFET SOP8
Manufacturer Product Number
DMG4800LSD-13
Description
DMG4800LSD-13 DUAL N-CHANNEL ENHANCEMENT MODE MOSFET SOP8
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Product Features
100 percent Avalanche Rated Part
Low RDS(ON) – Minimizes Conduction Losses
Low Qg – Minimizes Switching Losses
Product Applications
Backlighting
Power management functions
DC-DC converters
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DMG4800LSD-13 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 7.5A |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 1.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.56nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 798pF @ 10V |
| Power - Max | 1.17W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | DMG4800 |
Product Photos
For more product information, please download the PDF
