Hot-selling and scarce MP62061DH-LF-Z 3.3V/5V, Single-Channel 700mA Current-Limited Power Distribution Switch MSOP8

Product Descriptions

The MP62061 Power Distribution Switch features internal current limiting to prevent damage to host devices due to faulty load conditions. The MP62061 Analog switch features 80mΩ on-resistance and operates from 2.7V to 5.5V input. It is available with a guaranteed current limit, making it ideal for load switching applications. The MP62061 has built-in protection for both over current and increased thermal stress. For over current, the device will limit the current by changing to a constant current mode.

As the temperature increases as a result of short circuit, the device will shut off. The device will recover once the device temperature reduces to approx 120°C.

The MP62061 is available in MSOP8E and SOIC8E packages.

Product Features

• 700mA Continuous Current

• 1A Accurate Current Limit

• 2.7V to 5.5V Supply Range

• 140uA Quiescent Current

• 80mΩ MOSFET

• Thermal-Shutdown Protection

• Under-Voltage Lockout

• 8ms FLAG Deglitch Time

• No FLAG Glitch During Power Up

• Reverse Current Blocking

• MSOP8E and SOIC8E packages

• UL Recognized: E322138

Product Applications

• Smartphone and PDA

• Portable GPS Device

• Set-top-box

• USB Power Distribution

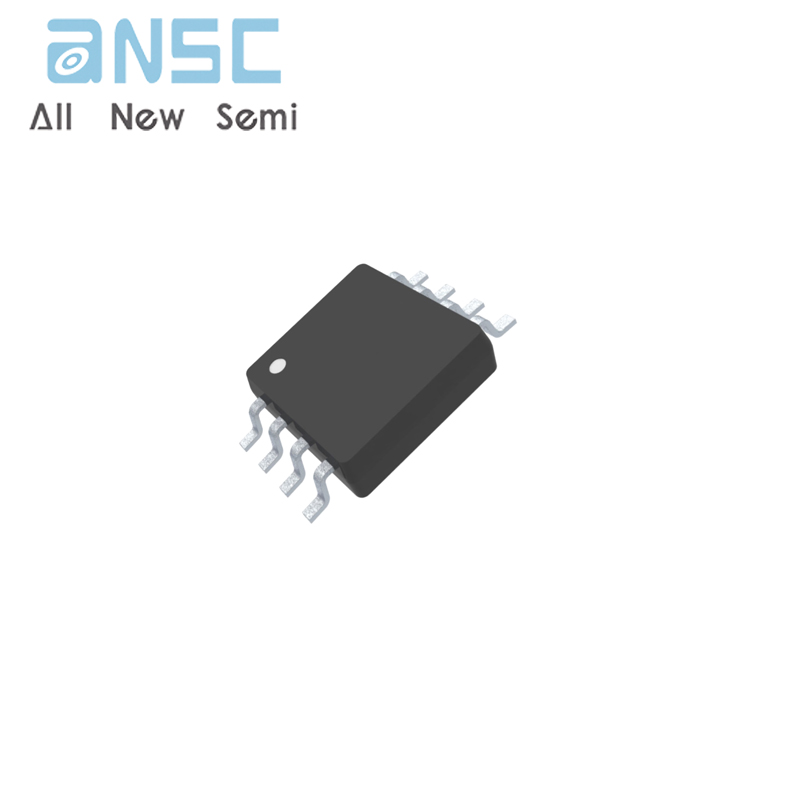

Product Photos

For more product information, please download the PDF
