Hot-selling and scarce CP2112-F02-GM SINGLE-CHIP HID USB TO SMBUS MASTER BRIDGE QFN spot stock

Product Descriptions

The CP2112 is a highly-integrated HID USB-to-SMBus Bridge providing a simple solution for controlling SMBus slave devices with USB and using a minimum of components and PCB space. The CP2112 includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, and a one-time programmable ROM in a compact 4 x 4 mm QFN-24 package (sometimes called “MLF” or “MLP”).

​The on-chip, one-time programmable ROM provides the option to customize the USB Vendor ID, Product ID, Manufacturer Product String, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications.

Product Features

Single-Chip HID USB to SMBus Master Bridge

Integrated USB transceiver; no external resistors or crystal required

SMBus master device

GPIO can be configured as Input/Output and Open Drain/Push-Pull

512 Byte SMBus data buffer

Integrated 194 Byte One-Time Programmable ROM for storing customizable product information

On-chip power-on reset circuit

On-chip voltage regulator: 3.45 V output

USB Peripheral Function Controller

USB Specification 2.0 compliant; full-speed (12 Mbps)

USB Suspend states supported via SUSPEND and SUSPEND pins

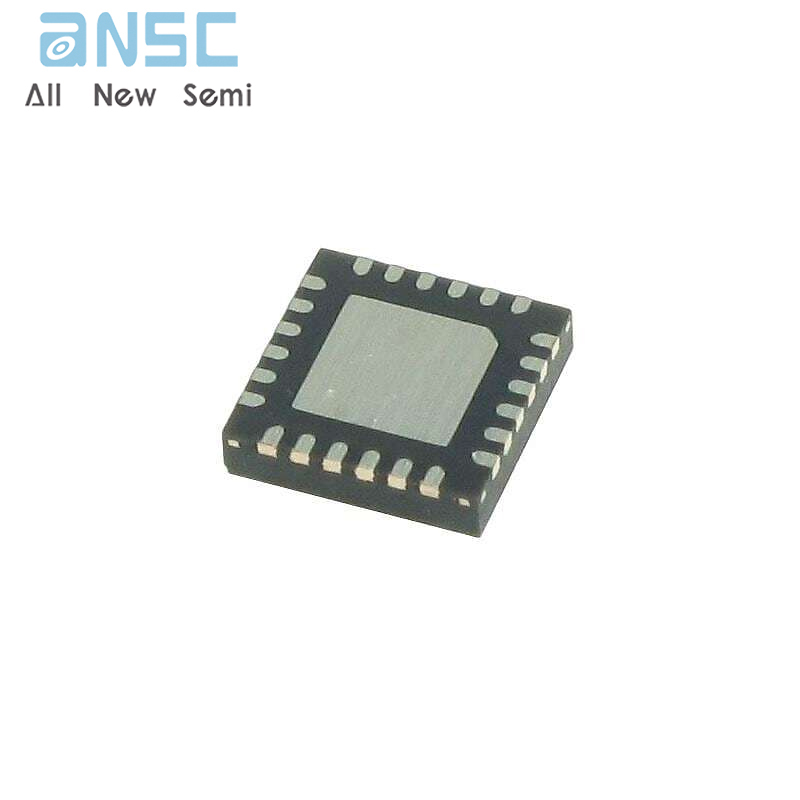

Product Photos

For more product information, please download the PDF
