Spot sales of TC1-1-13MG2+ Surface Mount RF Transformer SMD
Manufacturer Product Number
TC1-1-13MG2+
Description
TC1-1-13MG2+ Surface Mount RF Transformer SMD
Package Condition
TAPE & REEL
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• wideband, 4.5 to 3000 MHz
• balanced transmission line
• leadless surface mount
• good return loss
• excellent amplitude unbalance, 0.5 dB typ and phase unbalance, 2 deg typ. in 1 dB bandwidth
• aqueous washable
Product Applications
• balanced to unbalanced transformation
• push-pull amplifi ers
• PCS/DCS
• MMDS
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TC1-1-13MG2+ |
| Category | RF and Wireless |
| Balun | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Frequency Range | 4.5MHz ~ 3GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm |
| Phase Difference | 3° |
| Insertion Loss (Max) | 3dB |
| Return Loss (Min) | 6.79dB |
| Package / Case | 5-SMD Module |
| Mounting Type | Surface Mount |

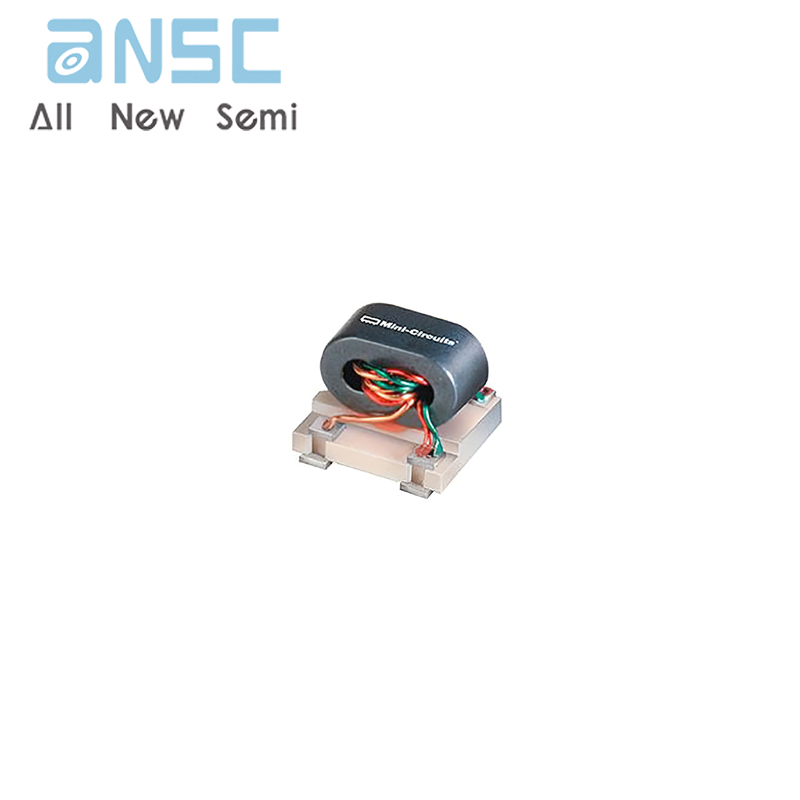

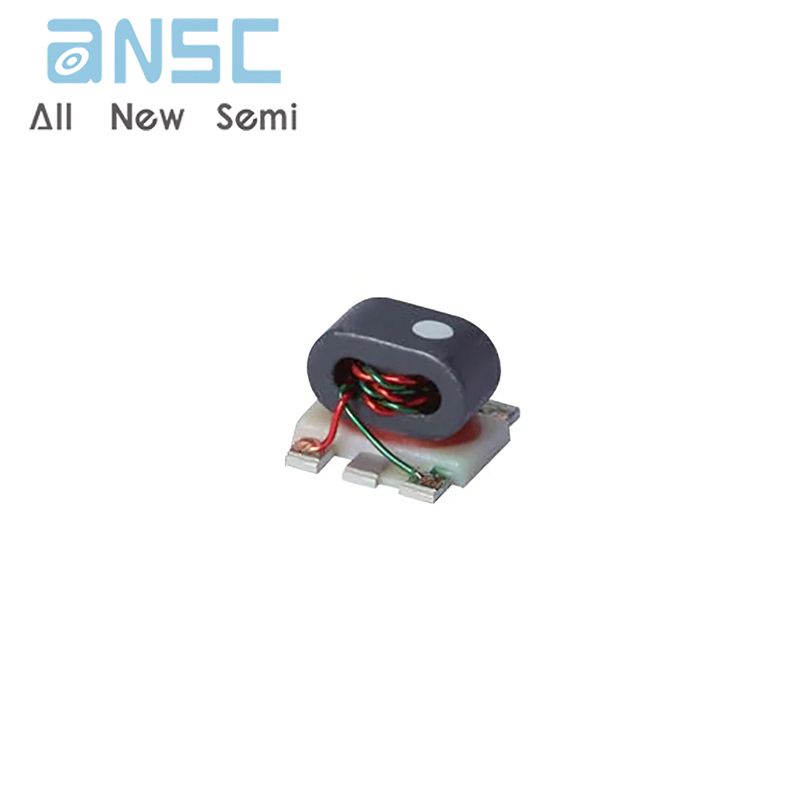

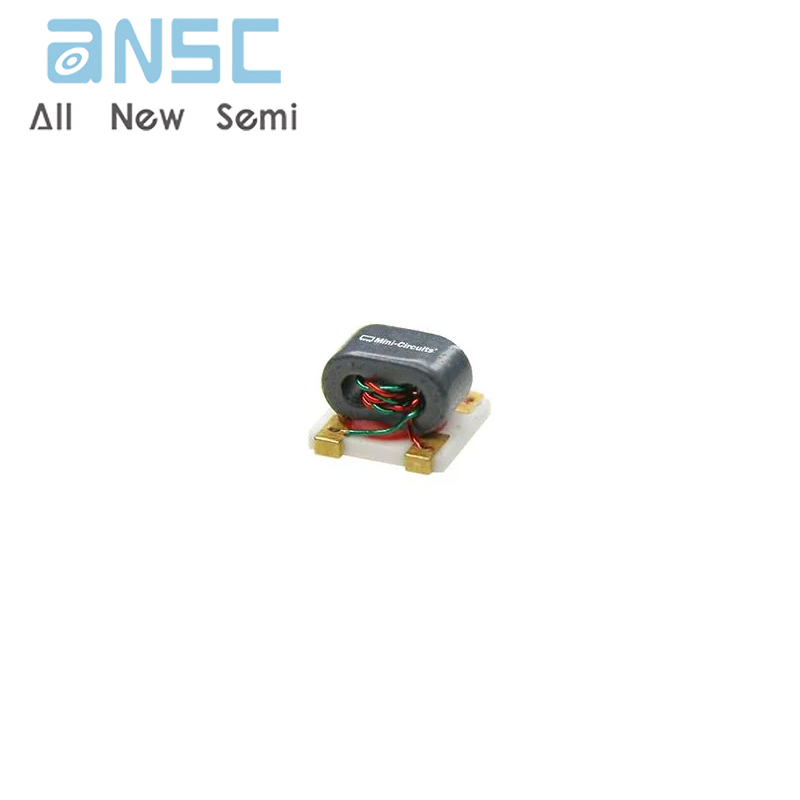

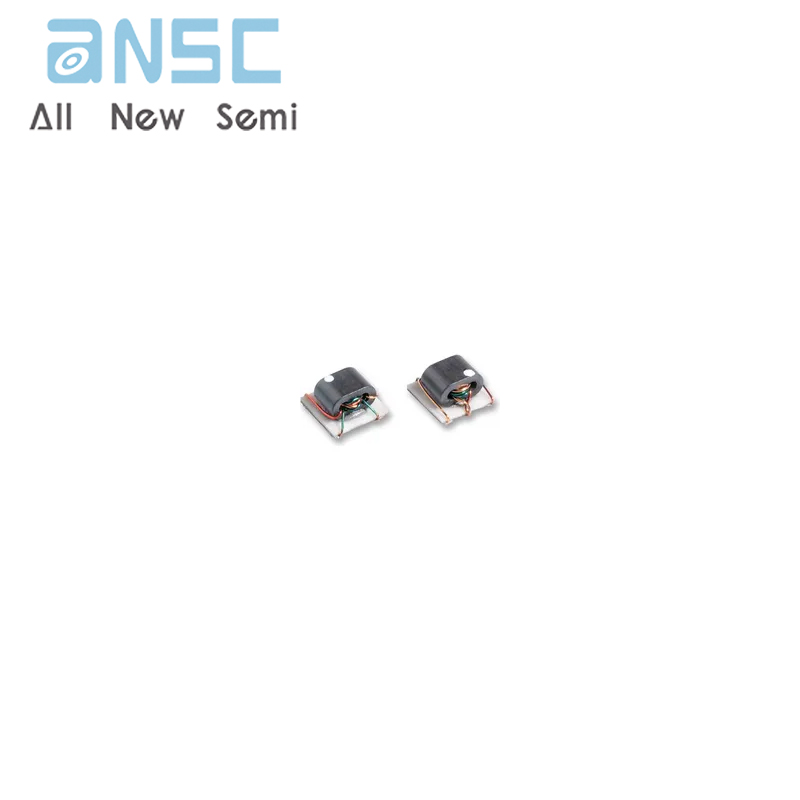

Product Photos
For more product information, please download the PDF
