Hot-selling and scarce ESD5V3U1U-02LS E6327 Uni-directional Ultra-Low Capacitance ESD / Transient Protection Diode TSSLP-2
Manufacturer Product Number
ESD5V3U1U-02LS E6327
Description
ESD5V3U1U-02LS E6327 Uni-directional Ultra-Low Capacitance ESD / Transient Protection Diode TSSLP-2 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• ESD / Transient protection of high speed data lines exceeding
– IEC61000-4-2 (ESD): ±20 kV (air / contact)
– IEC61000-4-4 (EFT): 2.5 kV / 50 A (5/50 ns)
– IEC61000-4-5 (surge): 3 A (8/20 μs)
• Maximum working voltage: VRWM = 5.3 V
• Ultra low capacitance: CL = 0.4 pF (typical)
• Low clamping voltage, low dynamic resistance RDYN = 0.6 Ω (typical)
• Very small form factor down to 0.62 x 0.32 x 0.31 mm3
• Pb-free (RoHS compliant) and halogen free package
Product Applications
• USB 2.0, Mobile HDMI Link, MDDI, MIPI, etc.
• HDMI, DisplayPort, DVI, Ethernet, Firewire, S-ATA
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ESD5V3U1U-02LS E6327 |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5.3V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 28V (Typ) |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power Line Protection | No |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | 0.4pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | PG-TSSLP-2-1 |
| Base Product Number | ESD5V3 |

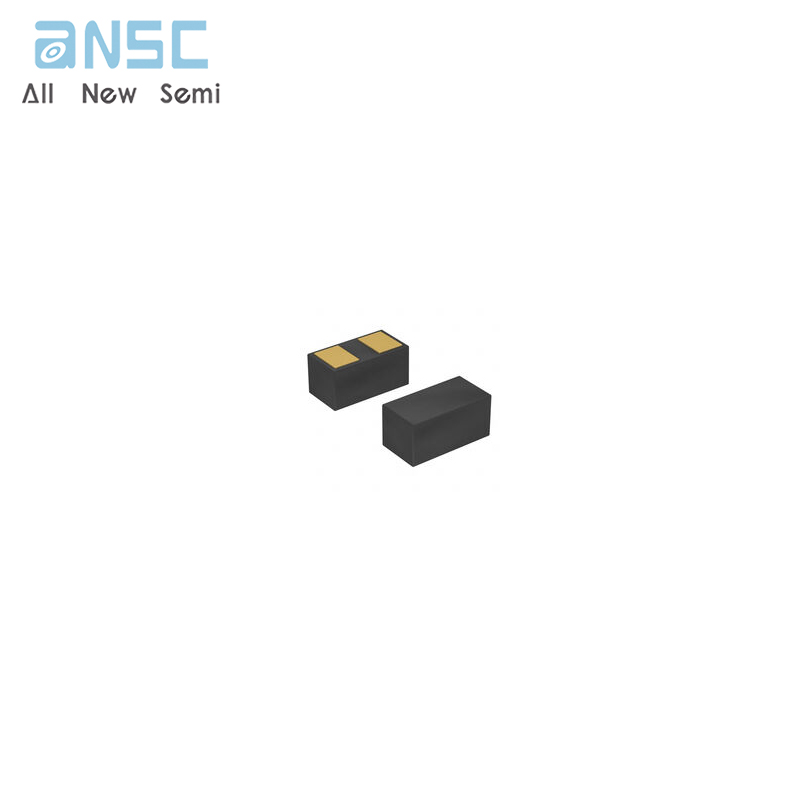

Product Photos
For more product information, please download the PDF
