Hot-selling and scarce EPM7032LC44-12 Programmable Logic Device Family PLCC spot stock
Manufacturer Product Number
EPM7032LC44-12
Description
EPM7032LC44-12 Programmable Logic Device Family PLCC spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
■ High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX® architecture
■ 5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices
– ISP circuitry compatible with IEEE Std. 1532
■ Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices
■ Built-in JTAG boundary-scan test (BST) circuitry in MAX7000S devices with 128 or more macrocells
■ Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates
■ 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect)
■ PCI-compliant devices available
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-EPM7032LC44-12 |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| CPLDs (Complex Programmable Logic Devices) | |
| Manufacturer | - |
| Series | MAX® 7000 |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Programmable Type | EE PLD |
| Delay Time tpd(1) Max | 12 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | 2 |
| Number of Macrocells | 32 |
| Number of Gates | 600 |
| Number of I/O | 36 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Base Product Number | EPM7032 |

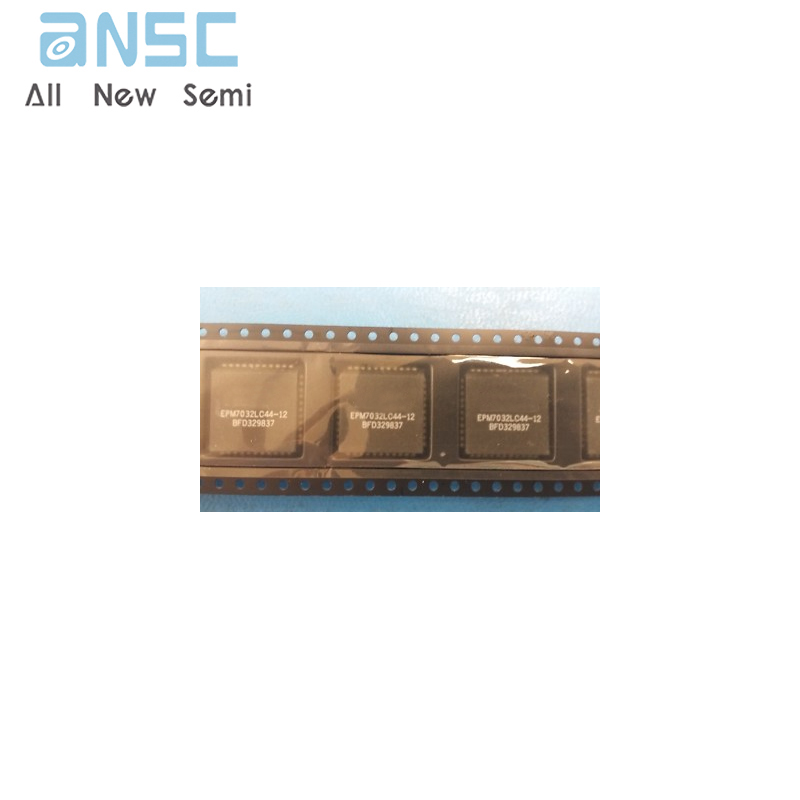

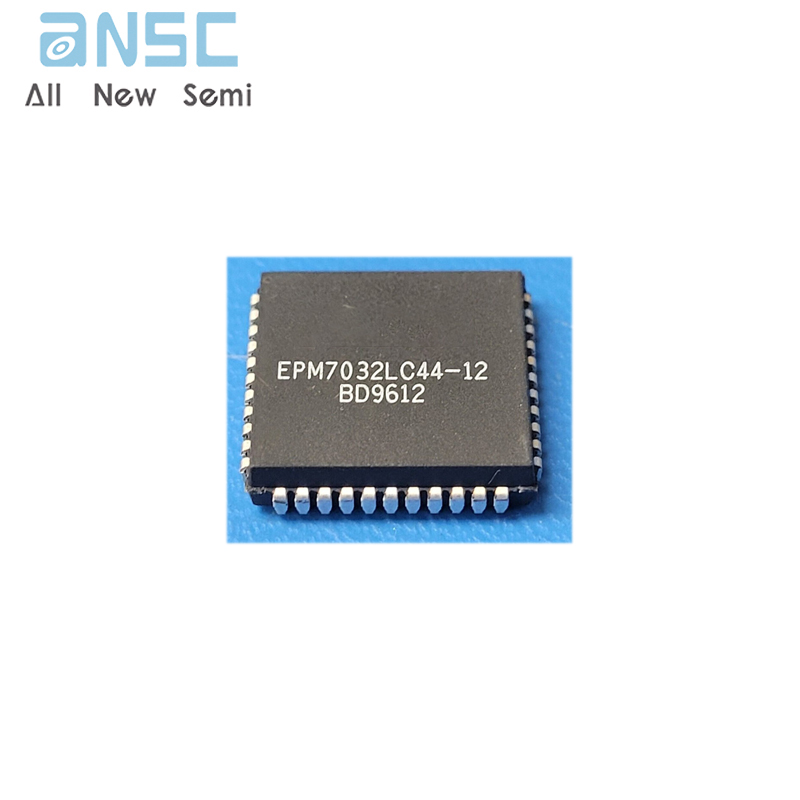

Product Photos
For more product information, please download the PDF
Other Products In The same category:
EPM7032LC44-12 Programmable Logic Device Family PLCC spot stock
545In stock:
Can ship immediately
