Hot-selling and scarce AD580MH High Precision 2.5V IC CAN3 spot stock

Product Descriptions

The AD580 is a 3-terminal, low cost, temperature-compensated,bandgap voltage reference, which provides a fixed 2.5 V outputfor inputs between 4.5 V and 30 V. A unique combination ofadvanced circuit design and laser-wafer trimmed thin filmresistors provide the AD580 with an initial tolerance of ±0.4%, atemperature stability of better than 10 ppm/°C, and long-termstability of better than 250 μV. In addition, the low quiescentcurrent drain of 1.5 mA maximum offers a clear advantage overclassical Zener techniques .

The AD580 is recommended as a stable reference for all 8-, 10-,and 12-bit D/A converters that require an external reference . Inaddition, the wide input range of the AD580 allows operationwith 5 volt logic supplies, making the AD580 ideal for digitalpanel meter applications or whenever only a single logic powersupply is available .

The AD580J, K, L, and M are specified for operation over the0°C to +70°C temperature range; the AD580S, T, and U arespecified for operation over the extended temperature range of–55°C to +125°C .

Product Features

Laser-trimmed to high accuracy: 2.500 V ±0.4%

3-terminal device: voltage in/voltage out

Excellent temperature stability: 10 ppm/°C (AD580M, U)

Excellent long-term stability: 250 μV (25 μV/month)

Low quiescent current: 1.5 mA maximum

Small, hermetic IC package: TO-52 can

MIL-STD-883 compliant versions available

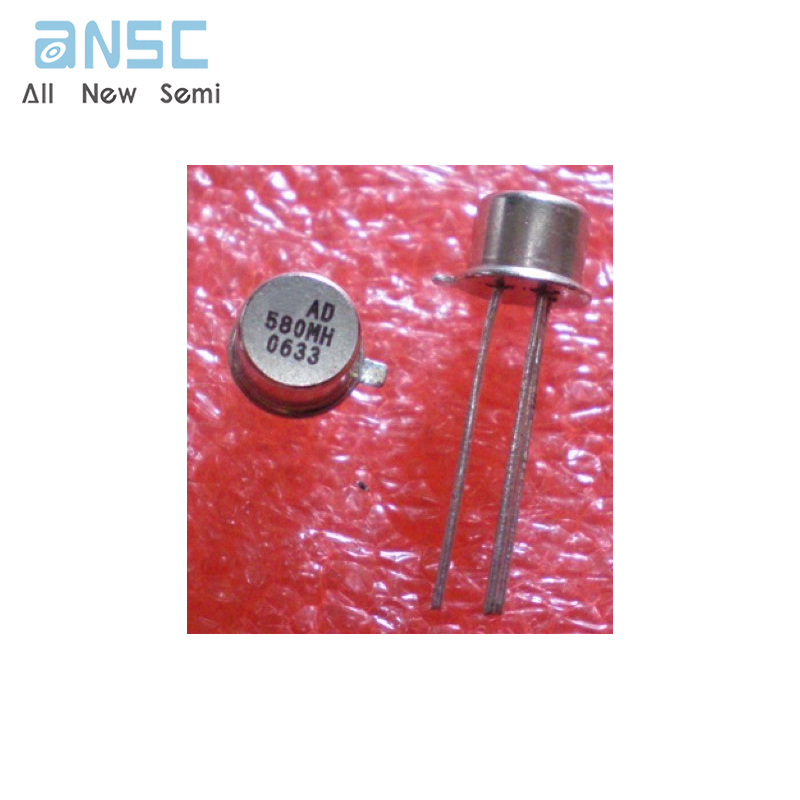

Product Photos
