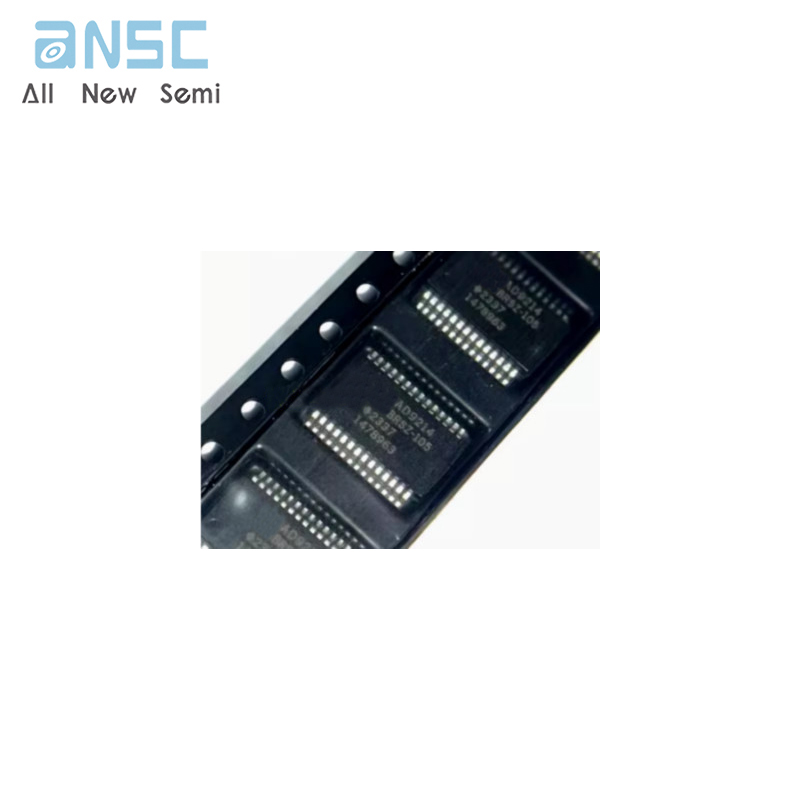

Hot-selling and scarce AD9214BRSZ-105 3V A/D Converter SSOP28 spot stock

Product Descriptions

The AD9214 is a 10-bit monolithic sampling analog-to-digitalconverter (ADC) with an on-chip track-and-hold circuit, andis optimized for low cost, low power, small size, and ease of use .The product operates up to 105 MSPS conversion rate withoutstanding dynamic performance over its full operating range .

The ADC requires only a single 3.3 V (2.7 V to 3.6 V) powersupply and an encode clock for full performance operation . Noexternal reference or driver components are required for manyapplications . The digital outputs are TTL/CMOS compatibleand a separate output power supply pin supports interfacingwith 3.3 V or 2.5 V logic .

The clock input is TTL/CMOS compatible . In the power-downstate, the power is reduced to 30 mW . A gain option allowssupport for either 1 V p-p or 2 V p-p analog signal input swing .

Fabricated on an advanced CMOS process, the AD9214 isavailable in a 28-lead surface-mount plastic package (28-SSOP)specified over the industrial temperature range (–40°C to +85°C).

Product Features

SNR = 57 dB @ 39 MHz Analog Input (–0.5 dBFS)

Low Power

190 mW at 65 MSPS

285 mW at 105 MSPS

30 mW Power-Down Mode

300 MHz Analog Bandwidth

On-Chip Reference and Track/Hold

1 V p-p or 2 V p-p Analog Input Range Option

Single 3.3 V Supply Operation (2.7 V–3.6 V)

Two’s Complement or Offset Binary Data Format Option

Product Applications

Battery-Powered Instruments

Hand-Held Scopemeters

Low-Cost Digital Oscilloscopes

Ultrasound Equipment

Cable Reverse Path

Broadband Wireless

Residential Power Line Networks
