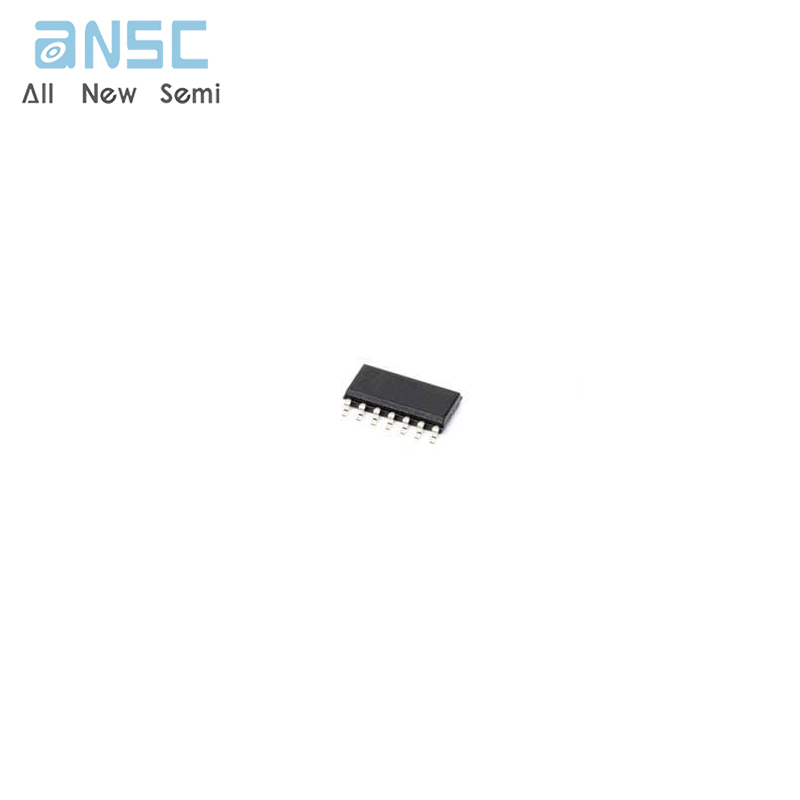

Hot-selling and scarce MAX3083CSD+ Fail-Safe High-Speed Slew-Rate-Limited RS-485/RS-422 Transceivers SOP14 spot stock

Product Descriptions

The MAX3080–MAX3089 high-speed transceivers for RS-485/RS-422 communication contain one driver and one receiver. These devices feature fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The MAX3080/MAX3081/MAX3082 feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission  up to  115kbps. The MAX3083/MAX3084/MAX3085 offer higher driver output slew-rate limits, allowing transmit speeds up to500kbps. The MAX3086/MAX3087/MAX3088’s driverslew rates are not limited, making transmit speeds up to  10Mbps possible. The MAX3089’s slew rate is selectable between 115kbps, 500kbps, and 10Mbps by driving a selector pin with a single three-state driver.

These transceivers typically draw 375µA of supply current when unloaded, or when fully loaded with the drivers disabled.

All devices have a 1/8-unit-load receiver input impedance that allows up to 256 transceivers on the bus. The MAX3082/MAX3085/MAX3088 are intended for halfduplex communications, while the MAX3080/MAX3081/ MAX3083/MAX3084/MAX3086/MAX3087 are intended for full-duplex communications. The MAX3089 is selectable between half-duplex and full-duplex operation. It also features independently programmable receiver and transmitter output phase via separate pins.

Product Features

♦  For Fault-Tolerant Applications:

MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4-

Unit Load, +3.3V RS-485 Transceiver

♦  For Low-Voltage Applications:

MAX3362: +3.3V, High-Speed, RS-485/RS-422

Transceiver in a SOT23 Package

♦  For Multiple Transceiver Applications:

MAX3030E–MAX3033E: ±15kV ESD-Protected,

+3.3V, Quad, RS-422 Transmitters

MAX3040–MAX3045: ±10kV ESD-Protected, Quad,

+5V, RS-485/RS-422 Transmitters

Product Applications

RS-422/RS-485 Communications

Level Translators

Transceivers for EMI-Sensitive Applications

Industrial-Control Local Area Networks

Product Specifications

Product Photos

For more product information, please download the PDF
