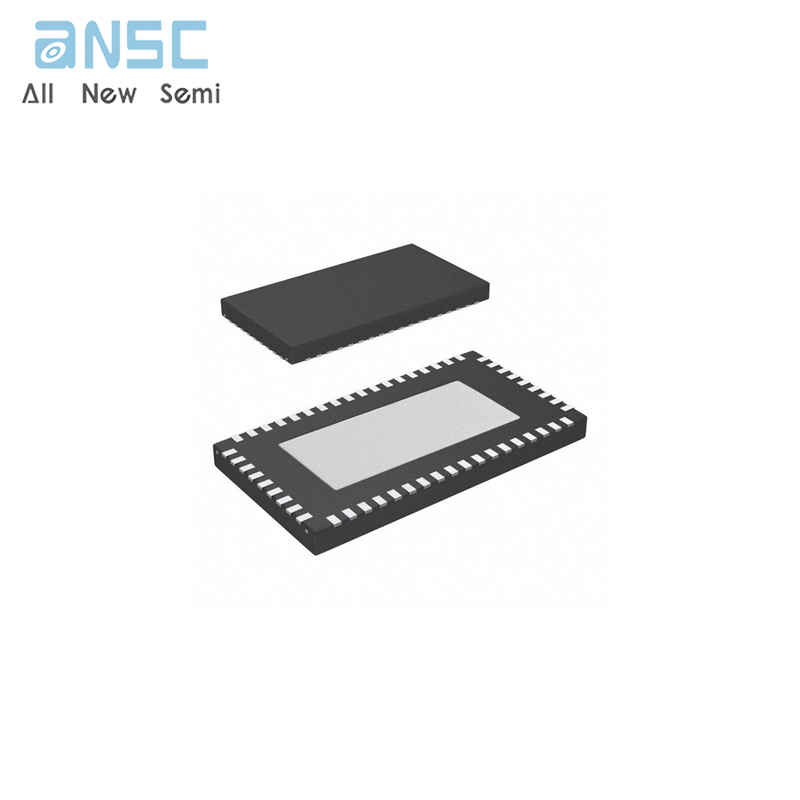

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce DS100MB203SQ/NOPB Dual Lane 2:1/1:2 Mux/Buffer With Equalization and De-Emphasis WQFN54 spot stock
Manufacturer Product Number
DS100MB203SQ/NOPB
Description
DS100MB203SQ/NOPB Dual Lane 2:1/1:2 Mux/Buffer With Equalization and De-Emphasis WQFN54 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The DS100MB203 device is a dual port 2:1multiplexer and 1:2 switch or fan-out buffer withsignal conditioning suitable for 10GE, 10G-KR(802 . 3ap), Fibre Channel, PCIe, Infiniband,SATA3/SAS2 and other high-speed bus applicationswith data rates up to 10.3125 Gbps .
The continuous time linear equalizer (CTLE) of thereceiver provides necessary boost to compensate upto 40” FR-4 or 10m cable (AWG-24) at 10.3125 Gbps- This on-chip feature eliminates the need for externalsignal conditioners . The transmitter features aprogrammable amplitude voltage levels to beselectable from 600 mVp-p to 1300 mVp-p and DeEmphasis of up to 12 dB.
The DS100MB203 can be configured to supportPCIe, SAS/SATA, 10G-KR or other signalingprotocols . When operating in 10G-KR and PCIe Gen -3 mode, the DS100MB203 transparently allows thehost controller and the end point to optimize the fulllink and negotiate transmit equalizer coefficients . Thisseamless management of the link training protocolensures system level interoperability with minimumlatency.
The programmable settings can be applied throughpin settings, SMBus (I2C) protocol or loaded directlyfrom an external EEPROM . When operating in theEEPROM mode, the configuration information isautomatically loaded on power up, which eliminatesthe need for an external microprocessor or softwaredriver .
Product Features
• 10.3125 Gbps Dual Lane 2:1 Mux, 1:2 Switch or Fan-Out
• Low 390 mW Total Power (Typical)
• Advanced Signal Conditioning Features:
– Receive Equalization Up to 36 dB at 5 GHz
– Transmit De-Emphasis Up to –12 dB
– Transmit Output Voltage Control: 600 mV to 1300 mV
• Programmable Through Pin Selection, EEPROM or SMBus Interface
• Selectable 2. 5-V or 3. 3-V Supply Voltage
• –40°C to 85°C Operating Temperature Range
Product Applications
• 10GE, 10G-KR
• PCIe Gen-1/2/3
• SAS2/SATA3 (Up to 6 Gbps)
• XAUI, RXAUI
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DS100MB203SQ/NOPB |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches - Special Purpose | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Applications | Networking, Telecommunications |
| Multiplexer/Demultiplexer Circuit | 2:1, 1:2 |
| Number of Channels | 4 |
| Voltage - Supply, Single (V+) | 2.38V ~ 2.63V, 3V ~ 3.6V |
| Features | Equalization, RXAUI, SATA, XAUI |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 54-WFQFN Exposed Pad |
| Supplier Device Package | 54-WQFN (10x5.5) |
| Base Product Number | DS100MB203 |
Product Photos
For more product information, please download the PDF
