Hot-selling and scarce ADM3483EARZ RS-485/RS-422 Transceivers SOP8 spot stock

Product Descriptions

The ADM3483E/ADM3486E/ADM3488E/ADM3490E/ADM3491E are 3.3 V, low power data transceivers with±15 kV ESD protection suitable for full- and half-duplex communication on multipoint bus transmission lines. They are designed for balanced data transmission, and they comply with TIA/EIA standards RS 485 and RS-422 . The ADM3483E/ADM3486E are half-duplex transceivers that share differential lines and have separate enable inputs for the driver and receiver. The full-duplex ADM3488E/ ADM3490E/ADM3491E transceivers have dedicated differential line driver outputs and receiver inputs. The ADM3491E also features separate enable inputs for the driver and receiver

The devices have a 12 kΩ receiver input impedance, which allows up to 32 transceivers on a bus. Because only one driver should be enabled at any time, the output of a disabled or powered-down driver is tristated to avoid overloading the bus.

Product Features

TIA/EIA RS-485/RS-422 compliant

±15 kV ESD protection on RS-485 input/output pins

Data rates

ADM3483E/ADM3488E: 250 kbps

ADM3486E: 2.5 Mbps

ADM3490E/ADM3491E: 12 Mbps

Half- and full-duplex options

Up to 32 nodes on the bus

Receiver open-circuit, fail-safe design

Low power shutdown current

(ADM3483E/ADM3486E/ADM3491E only)

Outputs high-Z when disabled or powered off

Common-mode input range: −7 V to +12 V

Thermal shutdown and short-circuit protection

Industry-standard 75176 pinout

8-lead and 14-lead narrow SOIC packages

Product Applications

Power/energy metering

Telecommunications

EMI-sensitive systems

Industrial control

Local area networks

    ​

Product Specification

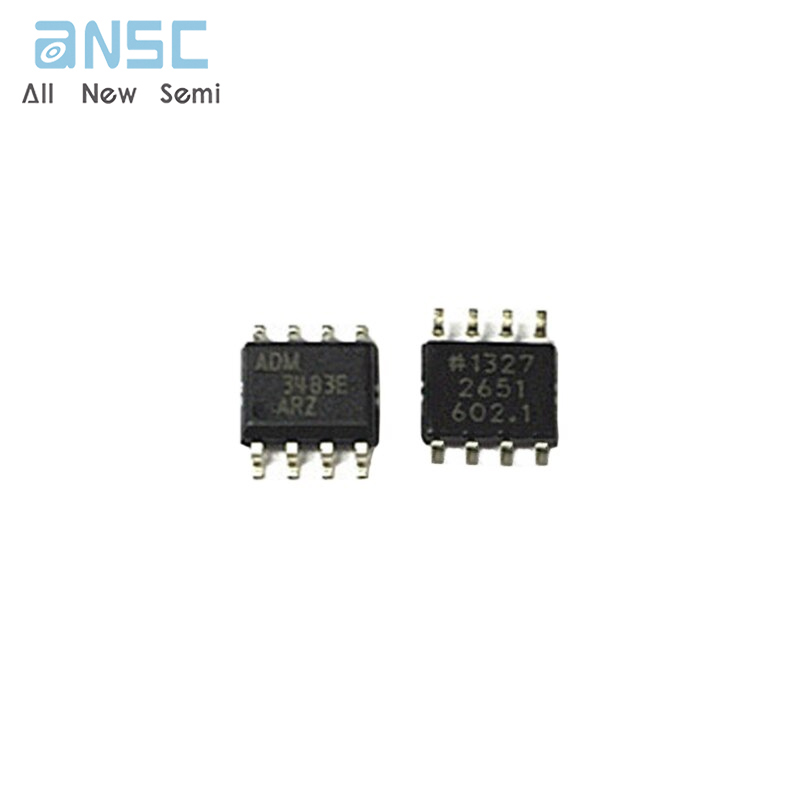

Product Photos

For more product information, please download the PDF
