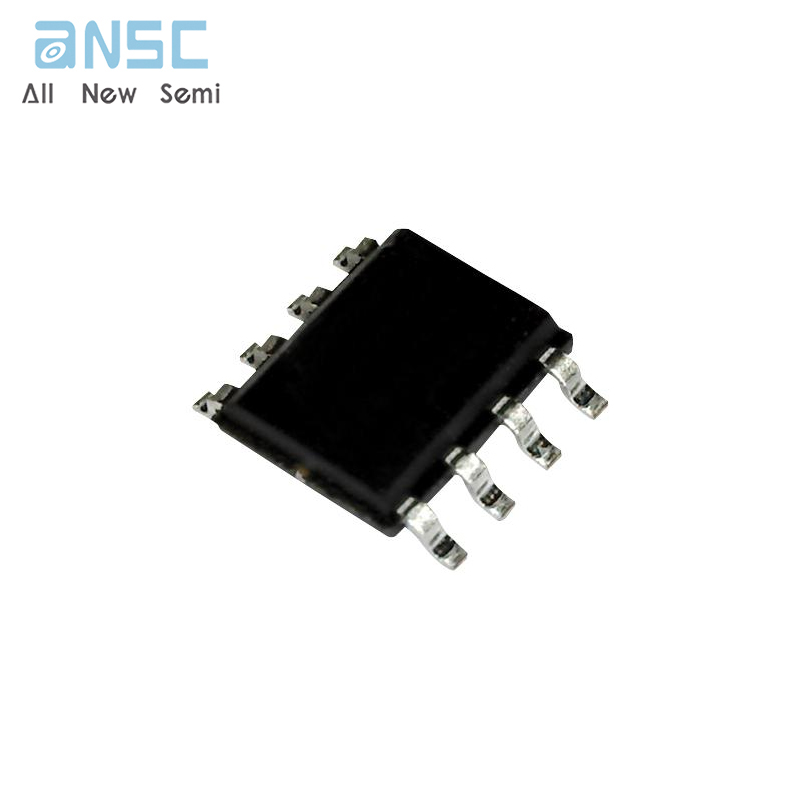

Hot-selling and scarce ACPL-064L-500E Ultra Low Power 10 MBd Digital CMOS Optocouplers SOP8 spot stock

Product Descriptions

The Avago ultra low power ACPL-x6xL digital optocouplers combine  an  AlGaAs  light  emitting  diode  (LED)  and  an integrated   high  gain   photodetector.  The  optocoupler consumes extremely low power, at maximum 1.3mA I_DD current per channel across temperature. With a forward LED current as low as 1.6 mA most microprocessors can directly drive the LED.

An internal Faraday shield provides a guaranteed common mode   transient   immunity   specification   of   20   kV/μs.

Maximum AC and  DC circuit isolation is achieved while maintaining TTL/CMOS compatibility.

The optocouplers CMOS outputs are slew-rate controlled and is designed to allow the rise and fall time to be controlled over a wide load capacitance range.

The ACPL-x6xL series operates from  both 3.3 V and 5 V supply voltages with guaranteed AC and DC performance from –40°C to +105°C.

These low-power optocouplers are suitable for high speed logic interface applications.

Product Features

•   Ultra-low IDD current: 1.3 mA/channel maximum

•   Low input current: 1.6 mA

•   Built-in slew-rate controlled outputs

•   20 kV/μs minimum Common Mode Rejection (CMR) at V CM = 1000 V

•   High speed: 10 MBd minimum

•   Guaranteed   AC   and   DC   performance   over   wide temperature: –40°C to +105°C

•   Wide  package  selection:  SO-5,  SO-8,  stretched  SO-6 and stretched SO-8

•   Safety approval

–   UL  1577  recognized – 3750 Vrms for  1  minute for ACPL-064L/M61L  and  5000 Vrms for  1  minute for ACPL-W61L/K64L

–   CSA Approval

–   IEC/EN/DIN  EN  60747-5-5  approval  for  Reinforced Insulation

•   RoHS compliant

Product Applications

•   Communication interfaces: RS485, CANBus and I2 C

•   Microprocessor system interfaces

•   Digital isolation for A/D and  D/A convertors

Product Specification

Product Photos

For more product information, please download the PDF
