Hot-selling and scarce DS1818R-10+T-R 3.3V EconoReset with Pushbutton SOT23-3 spot stock

Product Descriptions

The DS1818 EconoReset uses a precision temperature-compensated reference and comparator circuit to  monitor the status of the power supply (VCC). When an out-of-tolerance condition is detected, an internal  power-fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance  condition, the reset signal is kept in the active state for approximately 150 ms to allow the power supply  and processor to stabilize.

The DS1818 also monitors a pushbutton on the reset output. If the reset line is pulled low, a reset is  generated upon release and the DS1818 output will be held in reset output low for typically 150 ms.

Product Features

• Improves Reliability of Processor Operation

o Temperature-Compensated Voltage Monitor for Precise, Automated Power Fail Detection

o Automatically Restarts a Microprocessor After Power Failure

o Maintains Reset for 150ms After VCC Returns to Tolerance for Processor Stabilization

o Monitors Pushbutton for External

Override

o Active-Low Reset Output

• Efficient Open-Drain Output with Internal 5.5kΩ Pullup Resistor Saves Power and Space

o 35µA (max) Quiescent Current

• Allows for Easy Design with No Complicated Settings

o Fixed 3.3V Reset Threshold

o 5%, 10%, and 20% Tolerance Versions Available

• Operates in Most Commercial and Industrial Environments

o -40°C to +85°C Operating Temperature Range

• MXD1818 Offers Improved Performance over the DS1818

Product Specification

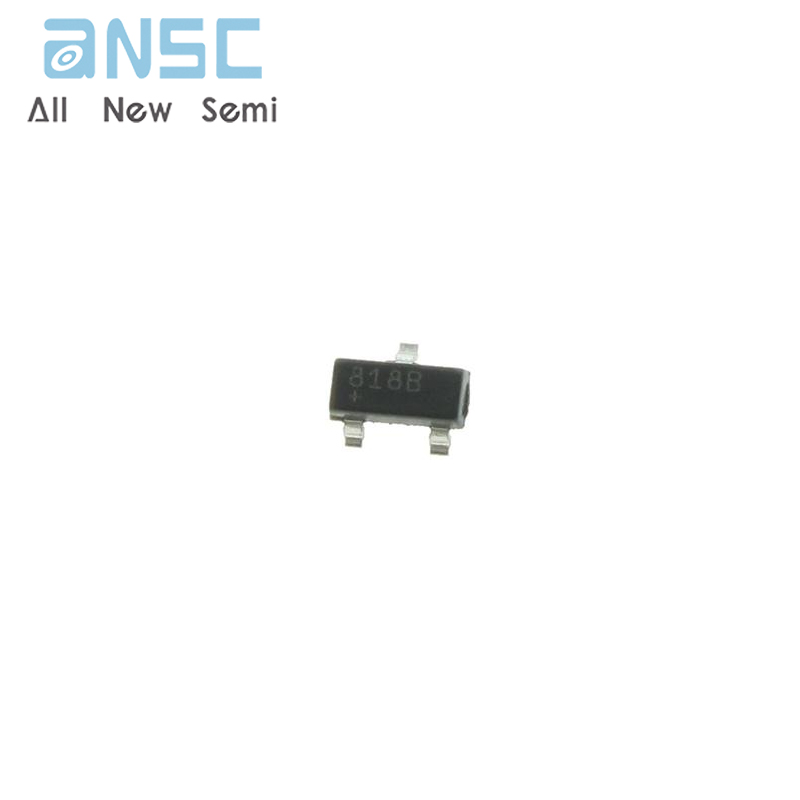

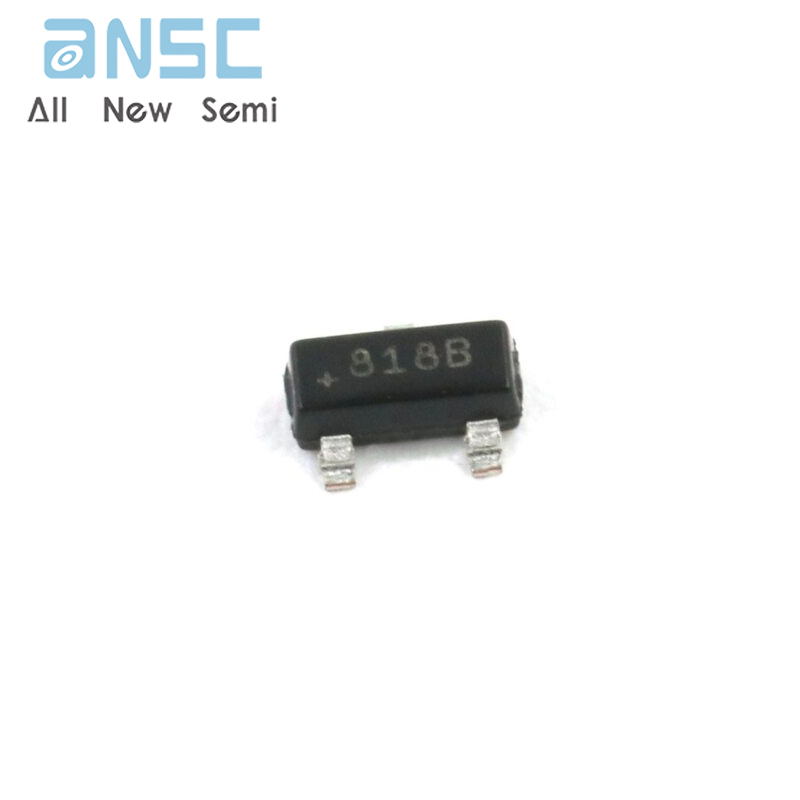

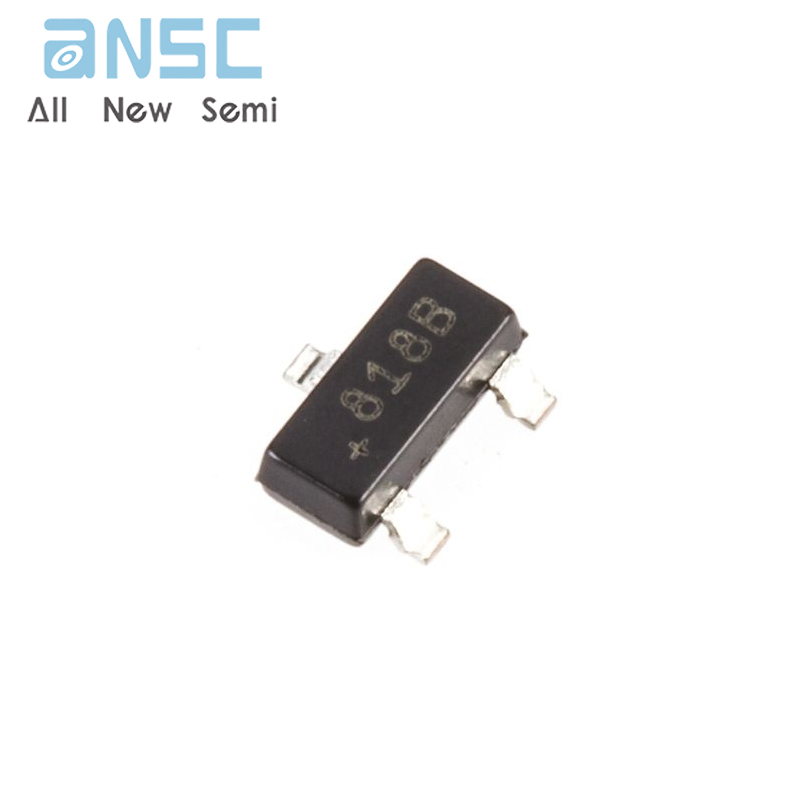

Product Photos

、

For more product information, please download the PDF
