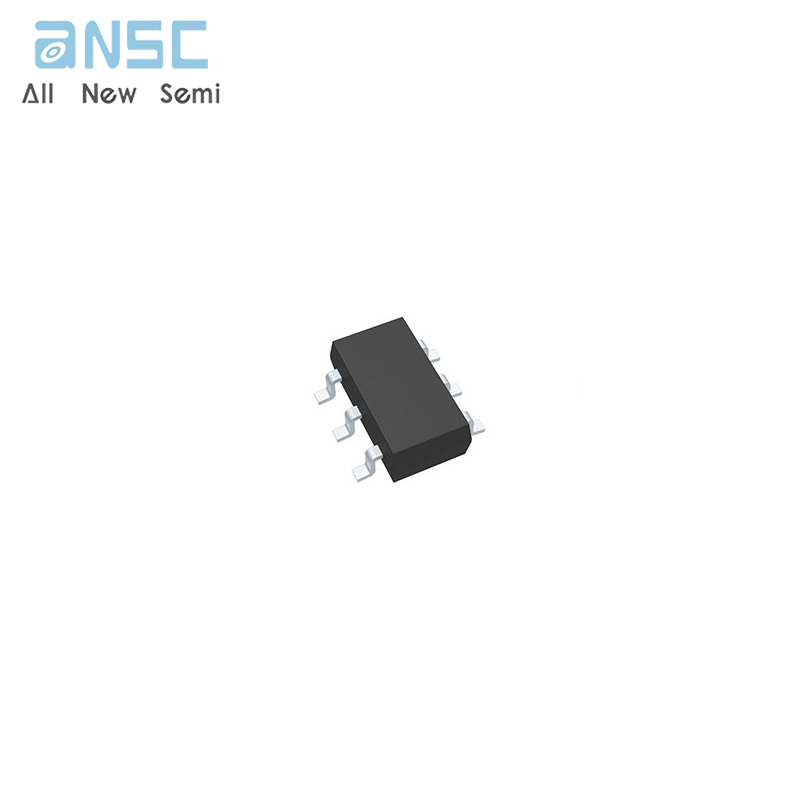

Hot-selling and scarce MAX2671EUT-T 400MHz to 2.5GHz Upconverter Mixers SOT-23-6 spot stock

Product Descriptions

The MAX2660/MAX2661/MAX2663/MAX2671/MAX2673miniature, low-cost, low-noise upconverter mixers aredesigned for low-voltage operation and are ideal foruse in portable consumer equipment . Signals at the IFinput port are mixed with signals at the local oscillator(LO)  port using a double-balanced mixer . Theseupconverter mixers operate with IF input frequenciesbetween 40MHz and 500MHz, and upconvert to outputfrequencies as high as 2.5GHz .

These devices offer a wide range of supply currents andoutput intercept levels to optimize system performance .Supply current is essentially constant over the specifiedsupply voltage range . Additionally, when the devices arein a typical configuration with V SHDN = 0, a shutdownmode reduces the supply current to less than 1µA .

The  MAX2660/MAX2661/MAX2663/MAX2671 areoffered in the space-saving 6-pin SOT23 package . Forapplications requiring balanced IF ports, choose theMAX2673 in the 8-pin µMAX package .

Product Features

♦  RF Output Frequencies:  400MHz to 2.5GHz

♦  Low Noise Figure: 9.3dB (900MHz, MAX2671)

♦  +2.7V to +5.5V Single Supply

♦   High Output Intercept Point (OIP3)

5.9dBm at 4.8mA (MAX2660)

7.1dBm at 8.3mA (MAX2661)

0.7dBm at 3.0mA (MAX2663)

9.6dBm at 11.8mA (MAX2671)

7.6dBm at 20.5mA (MAX2673)

♦  1µA Shutdown Mode

♦  Ultra-Small Surface-Mount Packaging

Product Applications

400MHz/900MHz/2 .4GHz ISM

Hand-Held Radios

Wireless Local Area Networks (WLANs)

IEEE 802.11 and Wireless Data

Personal Communications Systems (PCS)

Cellular and Cordless Phones
