Hot-selling and scarce DM9161BIEP Fast Ethernet Physical Layer Single Chip Transceiver IC QFP spot stock

Product Descriptions

The DM9161BI is a Industrial-grade physical layer,single-chip,  and  low  power  transceiver  for100BASE-TX and 10BASE-T operations . On themedia side,it provides a direct interface either toUnshielded Twisted Pair Category 5 Cable (UTP5)for100BASE-TX Fast Ethernet,or UTP5/UTP3 Cable for10BASE-T Ethernet .Through the Media IndependentInterface (MII),the DM9161BI connects to the MediumAccess Control (MAC)layer,ensuring a high interoperability from different vendors .

The DM9161BI uses a low power and highperformance advanced CMOS process .It contains the​ Entire physical layer functions of 100BASE-TX asdefined by IEEE802 .3u,including the Physical CodingSub layer (PCS),Physical Medium Attachment (PMA),Twisted Pair Physical Medium Dependent Sub layer (TP-PMD),    10BASE-TX    Encoder/Decoder (ENC/DEC), and Twisted Pair Media Access Unit(TPMAU).The DM9161BI provides a strong supportfor the auto-negotiation function,utilizing automaticmedia speed and protocol selection .Furthermore,dueto the built-in wave shaping filter,the DM9161BI needsno external filter to transport signals to the media in100BASE-TX or 10BASE-T Ethernet operation .

Product Features

Fully comply with IEEE 802.3 /IEEE 802 .3u 10Base-T/ 100Base-TX,ANSI X3T12 TP-PMD 1995 standard

Support HP MDI/MDI-X auto crossover function (HP Auto-MDIX)

Support Auto-Negotiation function,compliant with IEEE 802.3u

Fully integrated Physical layer transceiver On-chip filtering with direct interface to magnetic transformer

Selectable repeater or node mode

Selectable MII or RMII (Reduced MII)mode for 100Base-TX and 10Base-TX .Selectable MII or GPSI (7-Wired)mode for 10Base-T

Selectable full-duplex or half-duplex operation

MII management interface with mask able interrupt output capability

Provide Loopback mode for easy system diagnostics

LED status outputs indicate Link/Activity,Speed10/100 and Full-duplex/Collision .Support Dual-LED optional control

Single low power Supply of 3 .3V with an advanced CMOS technology

Very Low Power consumption modes:

●Power Reduced mode (cable detection)

●Power Down mode

●Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction .1:1 transformers only when HP Auto-MDIX Enable .

Compatible with 3.3V and 5 .0V tolerant I/Os

Pin to pin Compatible with DM9161A .

DSP architecture PHY Transceiver .

Supports Industrial-grade:-40°C .~+85'°C,

48-pin LQFP 0 .18um process

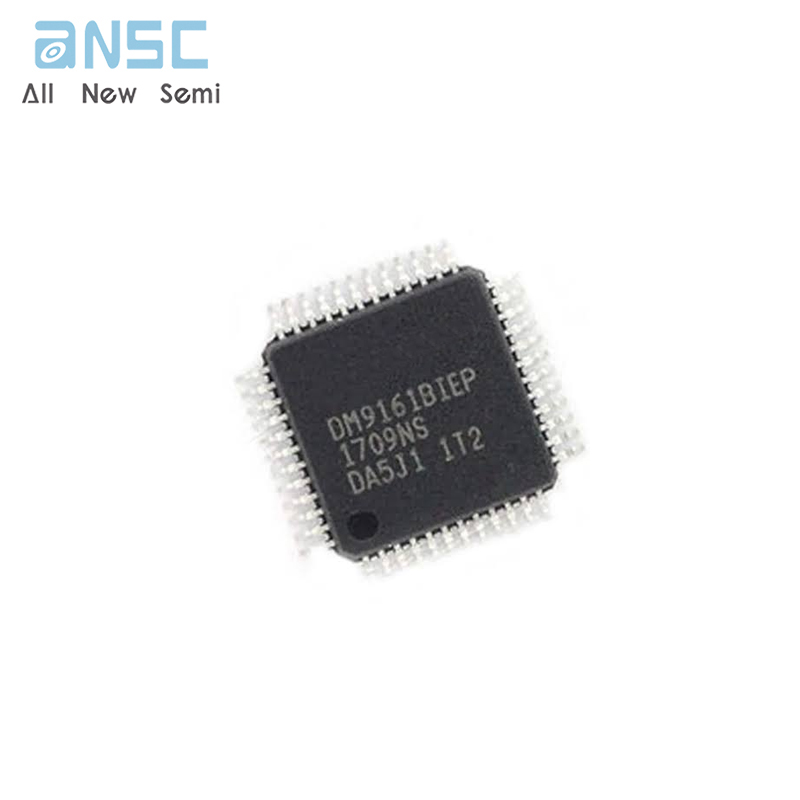

Product Photos

For more product information, please download the PDF
