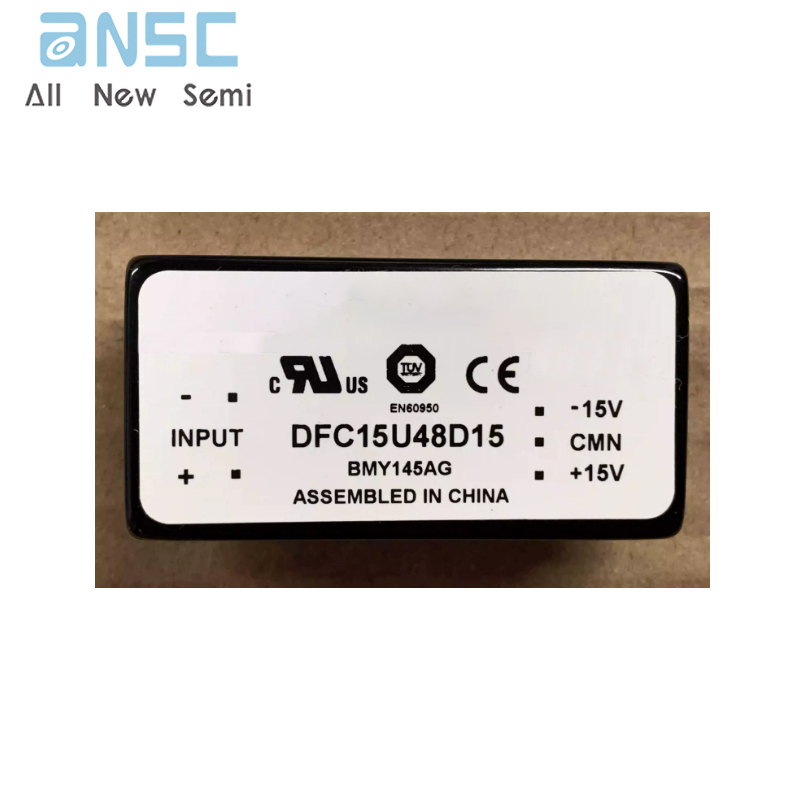

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce DFC15U48D15 DUAL OUTPUT MODULE spot stock
Manufacturer Product Number
DFC15U48D15
Description
DFC15U48D15 DUAL OUTPUT MODULE spot stock
Package Condition
BULK
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The dual output DFC15 Series of DC/DC converters are designed to provide a wide range of PCB power solutions where positive and negative outputs are required. The converter features fully isolated and filtered input and outputs for low noise. Trim and remote ON/OFF features give flexibility to designs. The ultra-wide input range, from 20 to 72 volts, allows use in most industrial and communication applications.
Product Features
• Remote ON/OFF and TRIM
• Overcurrent and Overtemperature Protected
• Water Washable Case
• Efficiencies to 82%
• 1544V Isolation
• Ultra-Wide Range Input (>3:1)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DFC15U48D15 |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | - |
| Series | DFC15 (15W) |
| Packaging | Bulk |
| Part Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Current - Output (Max) | 500mA, 500mA |
| Power (Watts) | 15 W |
| Voltage - Isolation | 700 V |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 2.02" L x 1.62" W x 0.55" H (51.3mm x 41.2mm x 14.0mm) |

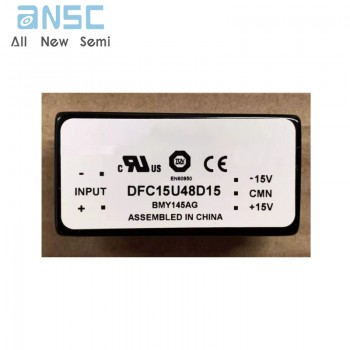

Product Photos
For more product information, please download the PDF
