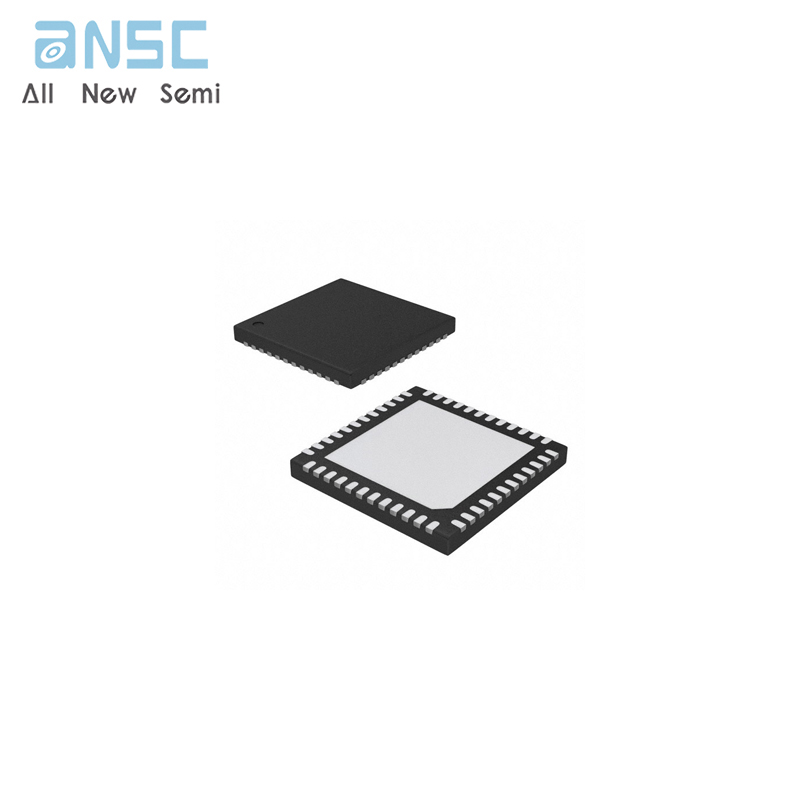

Hot-selling and scarce ADF7025BCPZ High Performance ISM Band Transceiver IC QFN spot stock

Product Descriptions

The ADF7025 is a low power, highly integrated FSK transceiver.It is designed for operation in the license–free ISM bands of433 MHz, 863 MHz to 870 MHz, and 902 MHz to 928 MHz .The ADF7025 can be used for applications operating under theEuropean ETSI EN300-220 or the North American FCC (Part 15)regulatory standards . The ADF7025 is intended for wideband,high data rate applications with deviation frequencies from100 kHz to 750 kHz and data rates from 9.6 kbps to 384 kbps .A complete transceiver can be built using a small number ofexternal discrete components, making the ADF7025 verysuitable for price-sensitive and area-sensitive applications .

The transmit section contains a VCO and low noiseFractional-N PLL with output resolution of <1 ppm . The VCOoperates at twice the fundamental frequency to reduce spuriousemissions and frequency pulling problems .

The transmitter output power is programmable in 0.3 dB stepsfrom −16 dBm to +13 dBm.The transceiver RF frequency,channelspacing,and modulation are programmable using a simple 3-wireinterface.The device operates with a power supply range of 2.3 Vto 3.6 V and can be powered down when not in use .

Product Features

Low power, zero-IF RF transceiver

Frequency bands

431 MHz to 464 MHz

862 MHz to 870 MHz

902 MHz to 928 MHz

Data rates supported

9.6 kbps to 384 kbps, FSK

2.3 V to 3.6V power supply

Programmable output power

−16 dBm to +13 dBm in 63 steps

Receiver sensitivity

−104.2 dBm at 38.4 kbps, FSK

−100 dBm at 172.8 kbps, FSK

−95.8 dBm at 384 kbps, FSK

Low power consumption

19 mA in receive mode

28 mA in transmit mode (10 dBm output)

On-chip VCO and Fractional-N PLL

On-chip, 7-bit ADC and temperature sensor

Digital RSSI

Integrated TRx switch

Leakage current < 1 µA in power-down mode

Product Applications

Wireless audio/video

Remote control/security systems

Wireless metering

Keyless entry

Home automation

Product Specification

Product Photos

For more product information, please download the PDF
