Hot-selling and scarce AD9883AKSTZ-140 MSPS Analog Interface for Flat Panel Displays LQFP-80 spot stock

Product Descriptions

The AD9883A is a complete 8-bit, 140 MSPS, monolithic analoginterface optimized for capturing RGB graphics signals frompersonal computers and workstations . Its 140 MSPS encoderate capability and full power analog bandwidth of 300 MHzsupports resolutions up to SXGA (1280 × 1024 at 75 Hz).

The AD9883A includes a 140 MHz triple ADC with internal1.25 V reference, a PLL, and programmable gain, offset, andclamp control . The user provides only a 3.3 V power supply,analog input, and Hsync and COAST signals . Three-stateCMOS outputs may be powered from 2.5 V to 3.3 V .

The AD9883A’s on-chip PLL generates a pixel clock from theHsync input . Pixel clock output frequencies range from 12 MHz to 140 MHz . PLL clock jitter is 500 ps p-p typical at 140 MSPS .When the COAST signal is presented, the PLL maintains itsoutput frequency in the absence of Hsync . A sampling phaseadjustment is provided . Data, Hsync, and clock output phaserelationships are maintained . The AD9883A also offers full syncprocessing for composite sync and sync-on-green applications .

A clamp signal is generated internally or may be provided bythe user through the CLAMP input pin . This interface is fullyprogrammable via a 2-wire serial interface.

Fabricated in an advanced CMOS process, the AD9883A is provided in a space-saving 80-lead LQFP surface-mount plastic packageand is specified over the –40°C to +85°C temperature range .

Product Features

Industrial Temperature Range Operation

140 MSPS Maximum Conversion Rate

300 MHz Analog Bandwidth

0.5 V to 1.0 V Analog Input Range

500 ps p-p PLL Clock Jitter at 110 MSPS

3.3 V Power Supply

Full Sync Processing

Sync Detect for Hot Plugging

Midscale Clamping

Power-Down Mode

Low Power:  500 mW Typical

4:2:2 Output Format Mode

Product Applications

RGB Graphics Processing

LCD Monitors and Projectors

Plasma Display Panels

Scan Converters

Microdisplays

Digital TV

Product Specification

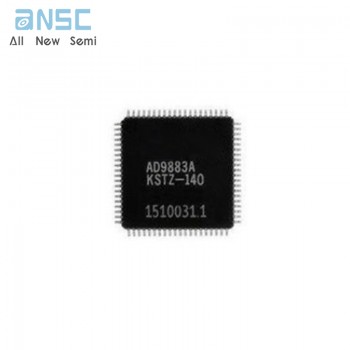

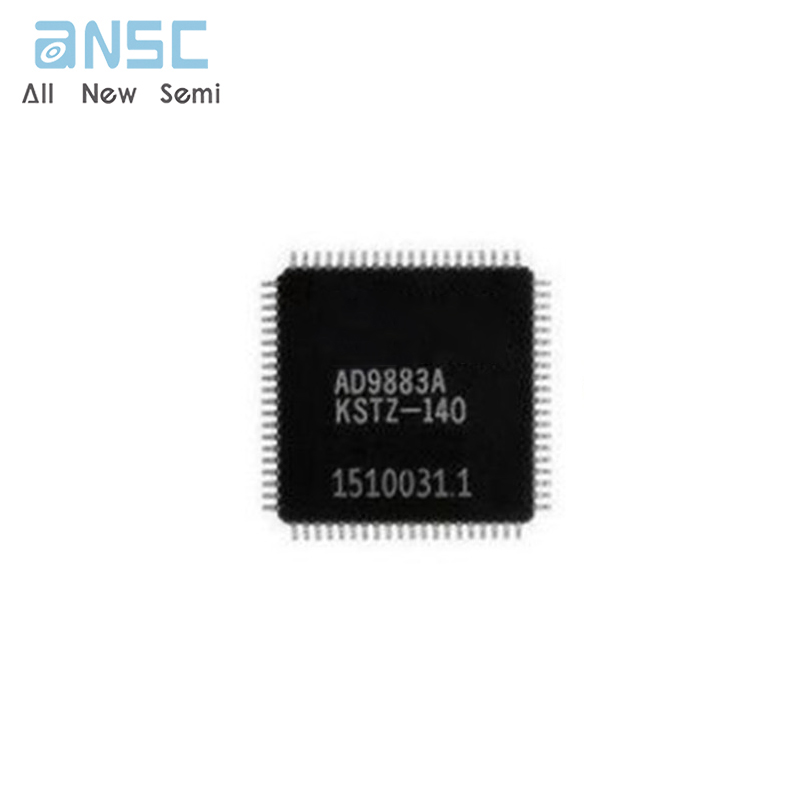

Product Photos

For more product information, please download the PDF
