Hot-selling and scarce MAX3232EIDB Automotive 3V TO 5.5V Multichannel RS-232 Line Driver and Receiver TSSOP16 spot stock

Product Descriptions

The  MAX3232E device consists of two  line drivers, two    line    receivers,    and    a    dual    charge-pump circuit  with  ±15kV  IEC  ESD  protection  pin  to  pin(serial-port  connection  pins,  including  GND).  The device   meets  the   requirements  of  TIA/EIA-232-F and  provides  the  electrical  interface  between  an asynchronous   communication   controller   and   the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The device operates at data signaling rates up to 250kbit/s and a maximum of 30V/μs driver output slew rate.​

Product Features

•   Qualified for automotive applications

•    Meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards

•    Operates with 3V to 5 .5V VCC supply

•    Operates up to 250kbit/s

•   Two drivers and two receivers

•    Low standby current: 300μA Typical

•    External capacitors: 4 × 0.1μF

•   Accepts 5V logic input with 3.3V supply

•    Pin compatible to alternative high-speed pin compatible device (1Mbit/s): SNx5C3232

Product Applications

•    Industrial PCs

•   Wired networking

•    Data center and enterprise computing

•    Battery-powered systems

•    Notebooks

•    Palmtop PCs

•    Hand-held equipment

Product Specification

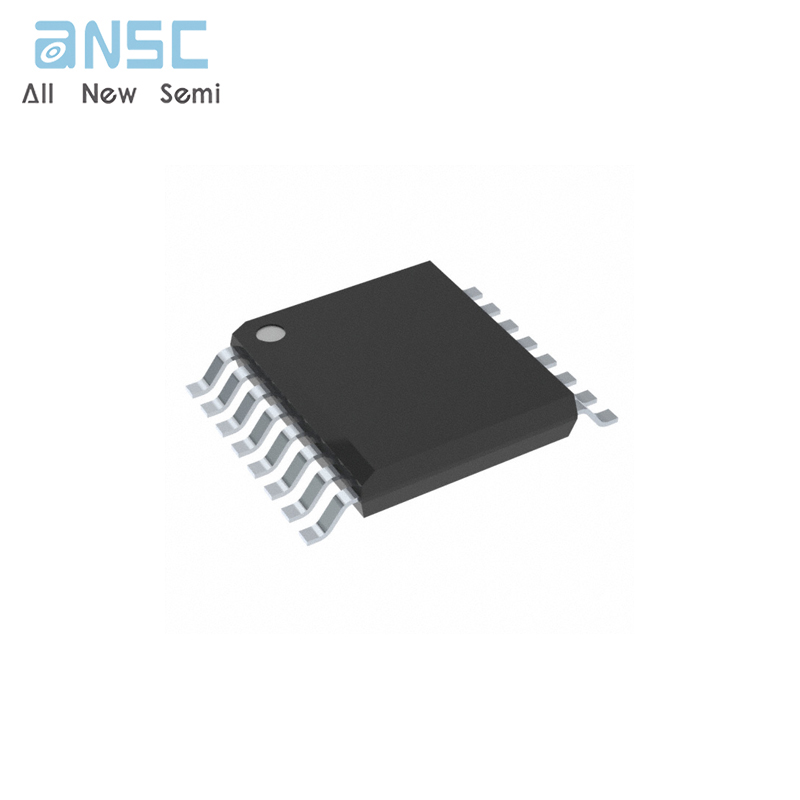

Product Photos

For more product information, please download the PDF
