Hot-selling and scarce MP2635AGR-Z 2A Single Cell Switch Mode Battery Charger with Power Path Management and Boost OTG QFN

Product Descriptions

The MP2635A is a highly-integrated, flexible, switch-mode battery charge management and system power path management device for a single-cell Li-ion and Li-Polymer battery used in a wide range of portable applications.

The MP2635A has two operating modes— charge mode and boost mode—to allow management of system and battery power based on the state of the input.

When input power is present, the device operates in charge mode. It automatically detects the battery voltage and charges the battery in the three phases: trickle current, constant current and constant voltage. Other features include charge termination and autorecharge. This device also integrates input current limit in order to manage input power and meet the priority of the system power demand.

In the absence of an input source, the MP2635A switches to boost mode through the MODE pin to power the SYS pins from the battery. The OLIM pin programs the output current limit in boost mode. The MP2635A also allows an output short-circuit thanks to an output disconnect feature, and can auto-recover when the short circuit fault is removed.

The MP2635A provides full operating status indication to distinguish charge mode from boost mode.

The MP2635A achieves low EMI/EMC performance with well-controlled switching edges.

To guarantee safe operation, the MP2635A limits the die temperature to a preset value 120o C. Other safety features include input overvoltage protection, battery over-voltage protection, thermal shutdown, battery temperature monitoring, and a programmable timer to prevent prolonged charging of a dead battery.

Product Features

 4.5V-to-6V Operating Input Voltage Range

 Integrated Input-Current-Based Power Management Function

 Up to 2A Programmable Charge Current

 Trickle-Charge Function

 Selectable 3.6V/ 4.2V Charge Voltage with 0.5 percent Accuracy

 Negative Temperature Coefficient Pin for Battery Temperature Monitoring

 Programmable Timer Back-Up Protection

 Thermal Regulation and Thermal Shutdown

 Internal Battery Reverse Leakage Blocking

 Reverse Boost Operation Mode for System Power

 Up to 91% 5V Boost Mode Efficiency @ 1A

 Programmable Output Current Limit for Boost Mode

 Integrated Short Circuit Protection for Boost Mode

Product Applications

 Sub-Battery Applications

 Power-Bank Applications for Smart-Phone, Tablet and Other Portable Devices

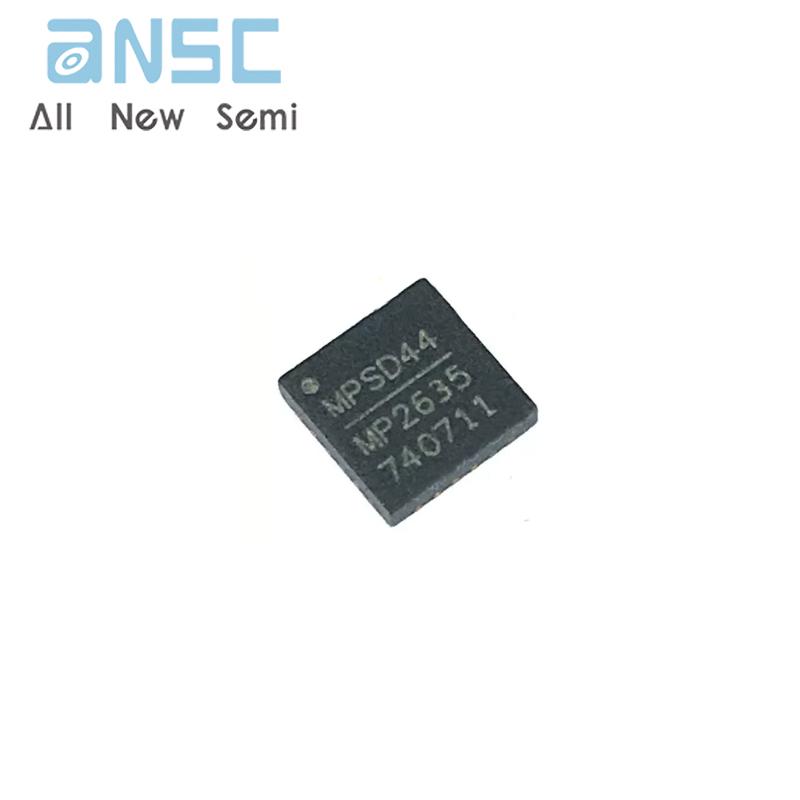

Product Photos

For more product information, please download the PDF
