Spot sales of ISP1181BDGG Full-speed Universal Serial Bus peripheral controller TSSOP

Product Features

■ Complies with Universal Serial Bus Specification Rev. 2.0 and most Device Class specifications

■ Supports data transfer at full-speed (12 Mbit/s)

■ High performance USB peripheral controller with integrated Serial Interface Engine (SIE), FIFO memory, transceiver and 3.3 V voltage regulator

■ High speed (11.1 Mbyte/s or 90 ns read/write cycle) parallel interface

■ Fully autonomous and multi-configuration DMA operation

■ Up to 14 programmable USB endpoints with 2 fixed control IN/OUT endpoints

■ Integrated physical 2462 bytes of multi-configuration FIFO memory

■ Endpoints with double buffering to increase throughput and ease real-time data transfer

■ Seamless interface with most microcontrollers/microprocessors

■ Bus-powered capability with low power consumption and low ‘suspend’ current

■ 6 MHz crystal oscillator input with integrated PLL for low EMI

■ Controllable LazyClock (100 kHz ± 50 Percent) output during ‘suspend’

■ Software controlled connection to the USB bus (SoftConnect™)

■ Good USB connection indicator that blinks with traffic (GoodLink™)

■ Clock output with programmable frequency (up to 48 MHz)

■ Complies with the ACPI™, OnNow™ and USB power management requirements

■ Internal power-on and low-voltage reset circuit, with possibility of a software reset

■ Operation over the extended USB bus voltage range (4.0 V to 5.5 V) with 5 V tolerant I/O pads

■ Operating temperature range −40 °C to +85 °C

■ Full-scan design with high fault coverage

■ Available in TSSOP48 and HVQFN48 packages.

Product Applications

■ Personal Digital Assistant (PDA)

■ Digital camera

■ Communication device, for example:

◆ Router

◆ Modem

■ Mass storage device, for example:

◆ Zip drive

■ Printer

■ Scanner

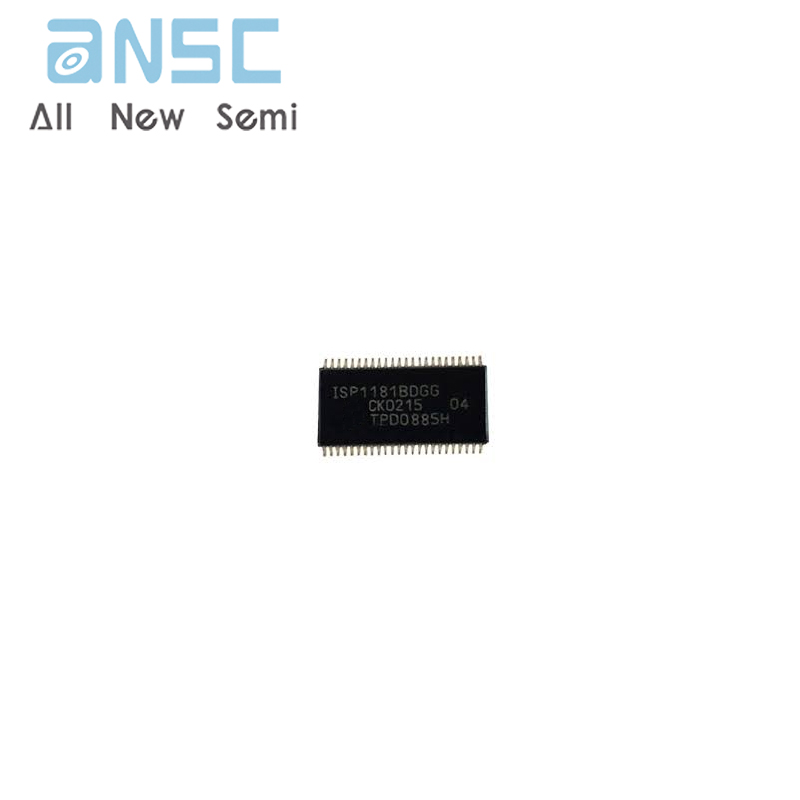

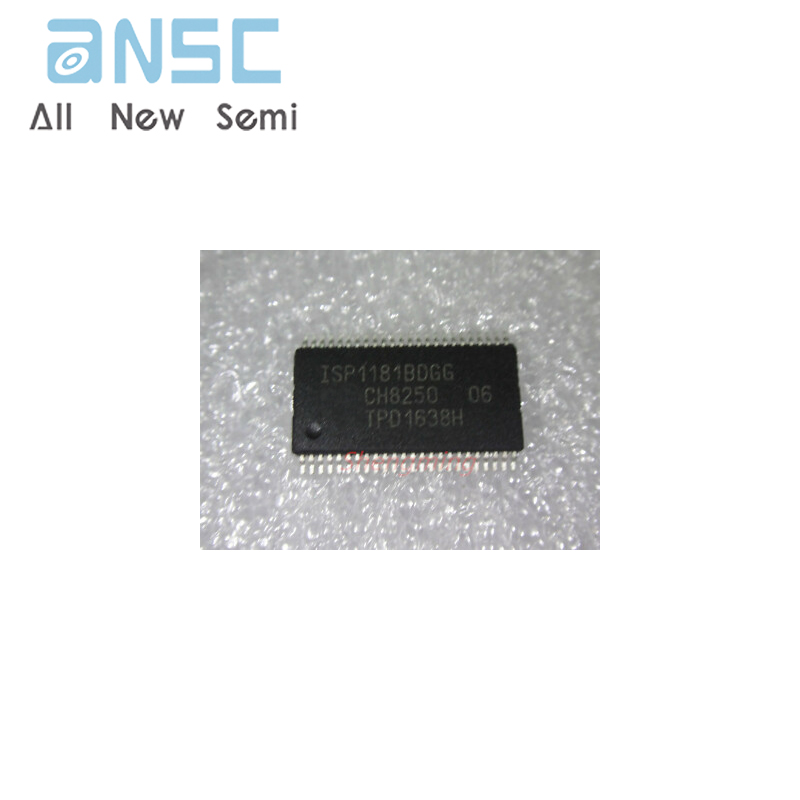

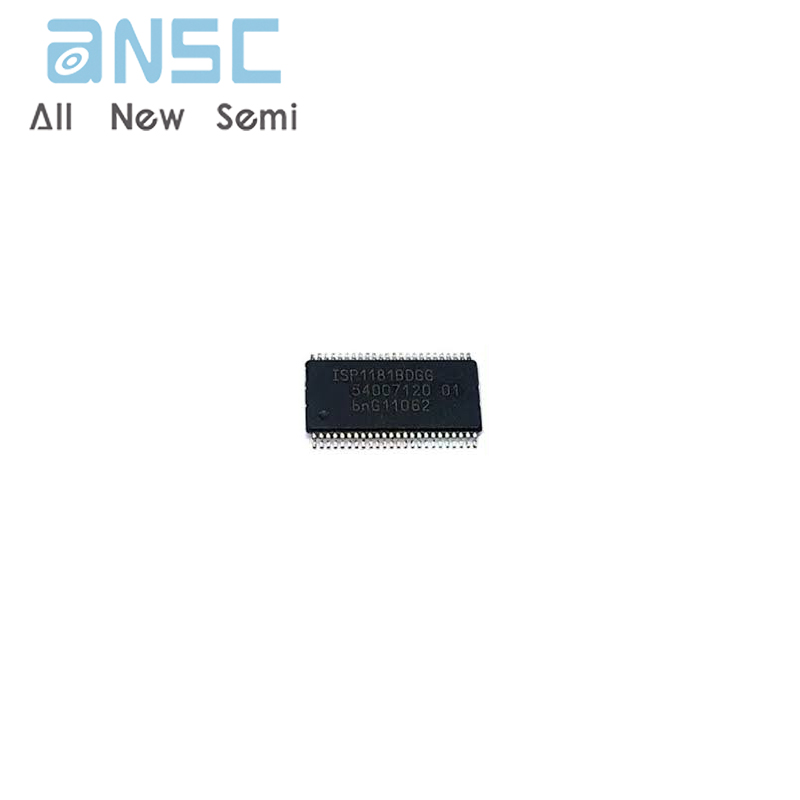

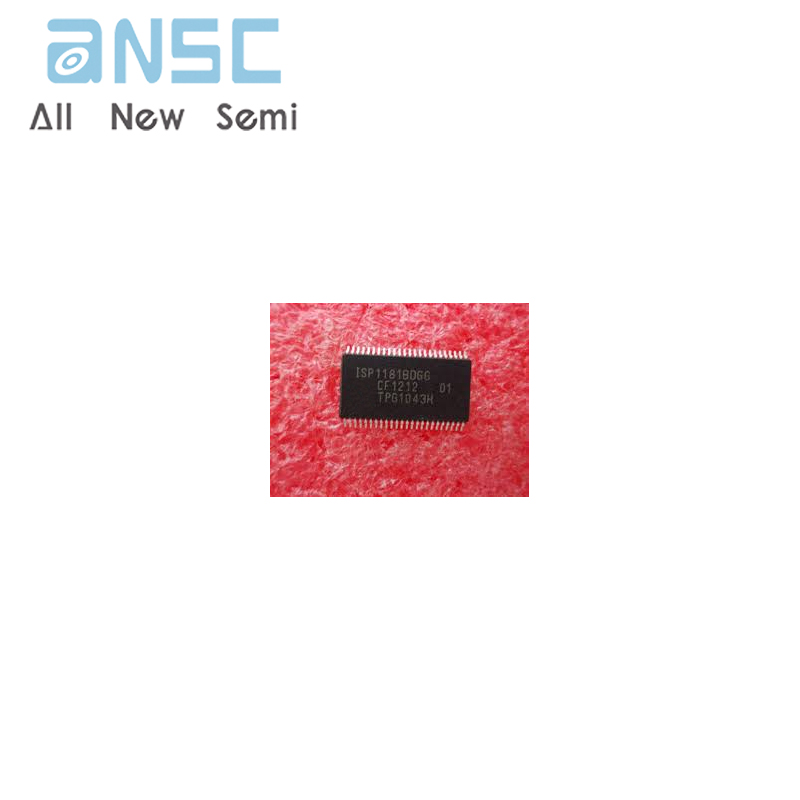

Product Photos

For more product information, please download the PDF
