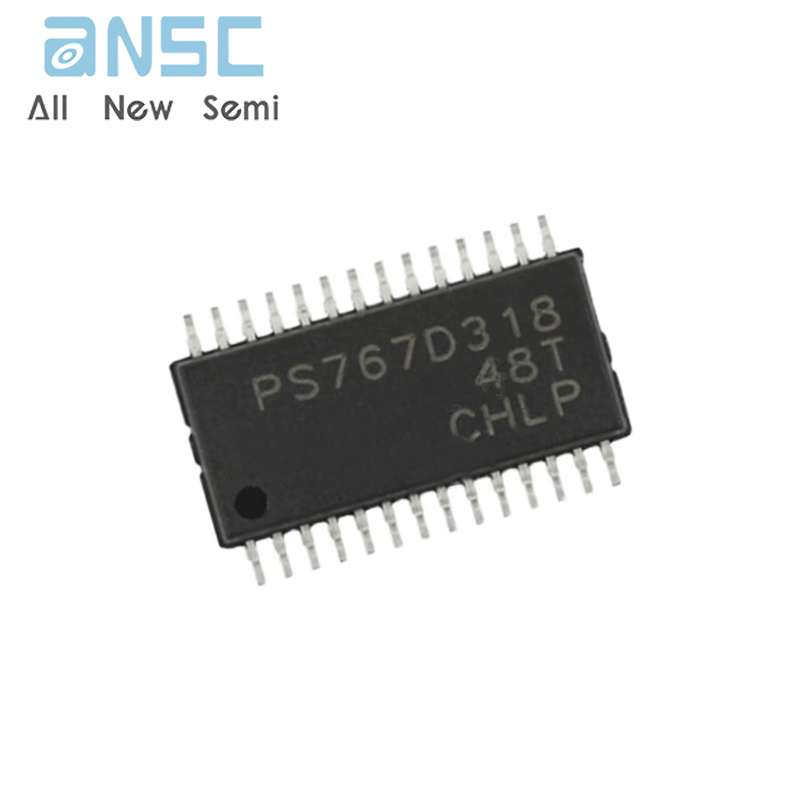

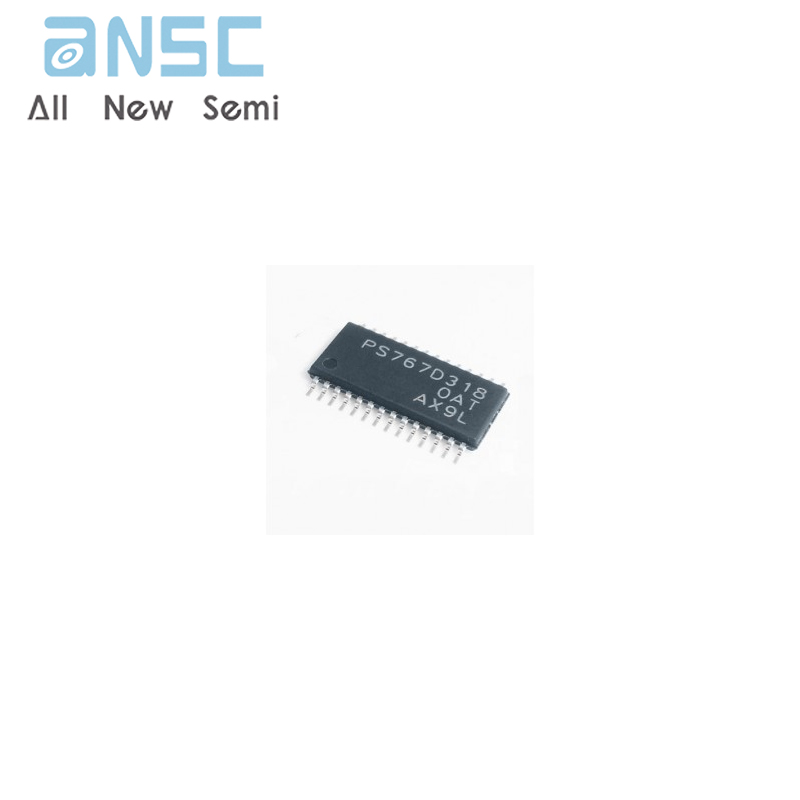

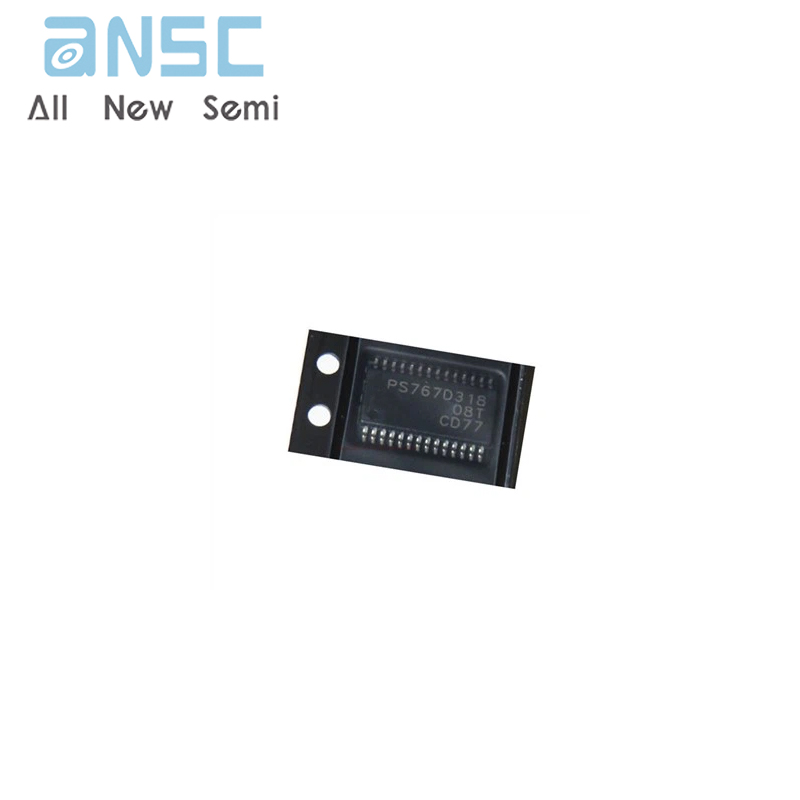

Spot sales of TPS767D318PWP DUAL-OUTPUT LOW-DROPOUT VOLTAGE REGULATORS TSSOP28

Manufacturer Product Number

TPS767D318PWP

Description

TPS767D318PWP DUAL-OUTPUT LOW-DROPOUT VOLTAGE REGULATORS TSSOP28

Package Condition

Tube

Datasheet

TPS767D318PWP

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

• Dual Output Voltages for Split-Supply Applications

• Output Current Range of 0mA to 1.0A per Regulator

• 3.3V/2.5V, 3.3V/1.8V, and 3.3V/Adjustable Output

• Fast-Transient Response

• 2 PERCENT Tolerance Over Load and Temperature

• Dropout Voltage Typically 350mV at 1A

• Ultra-low 85µA Typical Quiescent Current

• 1µA Quiescent Current During Shutdown

• Dual Open-Drain Power-On Reset with 200ms Delay for Each Regulator

• 28-Pin PowerPAD™ TSSOP Package

• Thermal Shutdown Protection for Each Regulator

Product Specification

Attribute	Attribute value
ANSM-Part#	ANSM-TPS767D318PWP
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Mfr	Texas Instruments
Series	-
Packaging	Tube
Part Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	1.8V, 3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.58V @ 1A
Current - Output	1A
Current - Quiescent (Iq)	125 µA
PSRR	60dB (1kHz)
Control Features	Enable, Reset
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package	28-HTSSOP
Base Product Number	TPS767D318
