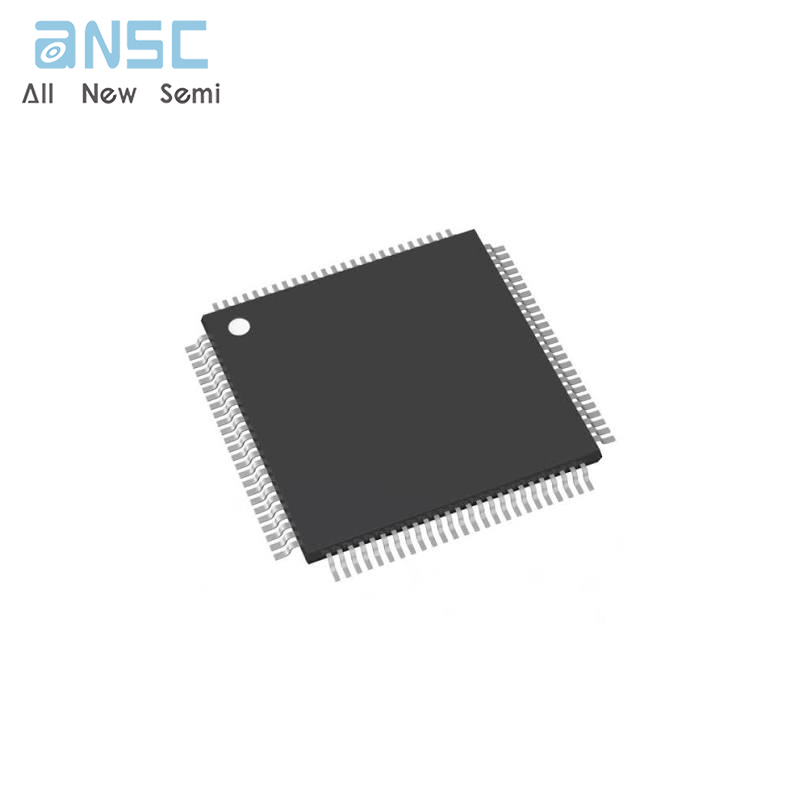

Hot-selling and scarce XC2C128-7VQG100C Complex Programmable Logic Devices IC QFP spot stock

Product Descriptions

The CoolRunner-II 128-macrocell device is designed for both high performance and low power applications .This lends power savings to high-end communication equipmentand high speed to battery operated devices .Due to the lowpower stand-by and dynamic operation,overall system reliability is improved

This device consists of eight Function Blocks inter-connected by a low power Advanced Interconnect Matrix (AIM).The AIM feeds 40 true and complement inputs to eachFunction Block .The Function Blocks consist of a 40 by 56P-term PLA and 16 macrocells which contain numerousconfiguration bits that allow for combinational or registeredmodes of operation .

Additionally,these registers can be globally reset or presetand configured as a D or T flip-flop or as a D latch .Thereare also multiple clock signals,both global and local productterm types,configured on a per macrocell basis .Output pinconfigurations include slew rate limit,bus hold,pull-up,open drain and programmable grounds .A Schmitt-triggerinput is available on a per input pin basis .In addition to storing macrocell output states,the macrocell registers may beconfigured as direct input registers to store signals directlyfrom input pins .​

Product Features

Optimized for 1.8V systems

-  As fast as 5.7 ns pin-to-pin delays

-  As low as 13 μA quiescent current

Industry’s best 0.18 micron CMOS CPLD

-  Optimized architecture for effective logic synthesis

-  Multi-voltage I/O operation —1.5V to 3.3V

Available in multiple package options

-  100-pin VQFP with 80 user I/O

-  144-pin TQFP with 100 user I/O

-  132-ball CP (0 .5mm)BGA with 100 user I/O

-  Pb-free available for all packages

Advanced system features

-  Fastest in system programming

·  1.8V ISP using IEEE 1532 (JTAG)interface

-  IEEE1149 .1 JTAG Boundary Scan Test

-  Optional Schmitt-trigger input (per pin)

-  Unsurpassed low power management

·  DataGATE enable (DGE)signal control

-  Two separate I/O banks

-  RealDigital 100%CMOS product term generation

-  Flexible clocking modes

·  Optional DualEDGE triggered registers

·  Clock divider (divide by 2,4,6,8,10,12,14,16)

·  CoolCLOCK

-  Global signal options with macrocell control

·  Multiple global clocks with phase selection per macrocell

·  Multiple global output enables

·  Global set/reset

-  Advanced design security

-  Open-drain output option for Wired-OR and LED drive

-  PLA architecture

·  Superior pinout retention

·  100%product term routability across function block

-  Optional bus-hold,3-state or weak pull-up on selected I/O pins

-  Optional configurable grounds on unused I/Os

-  Mixed I/O voltages compatible with 1.5V,1.8V, 2.5V,and 3.3V logic levels

·  SSTL2-1,SSTL3-1,and HSTL-1 I/O compatibility

-  Hot pluggable

Product Specifications

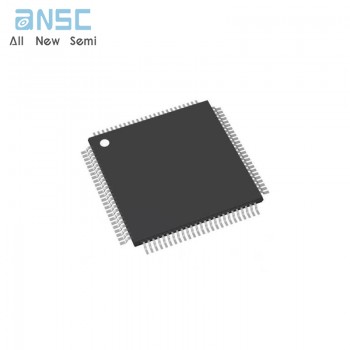

Product Photos

For more product information, please download the PDF
