Hot-selling and scarce DRV135UA/2K5 AUDIO BALANCED LINE DRIVERS SOP-8 spot stock

Product Descriptions

The DRV134 and DRV135 are differential output amplifiers that convert a single-ended  input to a  balancedoutput  pair .  These  balanced  audio  drivers  consist  ofhigh performance op amps with on-chip precision resistors . They are fully specified for high performance audioapplications  and  have  excellent  ac  specifications,  including low distortion (0 .0005% at 1kHz) and high slewrate (15V/µs).

The on-chip resistors are laser-trimmed for accurate gainand optimum output common-mode rejection . Wide outputvoltage swing and high output drive capability allow use  ina wide variety of demanding applications.They easily drivethe  large  capacitive  loads  associated  with  long  audiocables . Used in combination with the INA134 or INA137differential  receivers, they  offer a  complete solution fortransmitting analog audio signals without degradation .The DRV134 is available in 8-pin DIP and SOL-16 surface-mount packages . The DRV135 comes in a spacesaving SO-8 surface-mount package . Both are specifiedfor operation  over the  extended  industrial temperaturerange,–40°C to +85°C and operate from –55°C to +125°C .

Product Features

● BALANCED OUTPUT

● LOW DISTORTION: 0.0005% at f = 1kHz

● WIDE OUTPUT SWING: 17Vrms into 600Ω

● HIGH CAPACITIVE LOAD DRIVE

● HIGH SLEW RATE: 15V/µs

● WIDE SUPPLY RANGE: ±4 .5V to ±18V

● LOW QUIESCENT CURRENT: ±5 .2mA

● 8-PIN DIP, SO-8, AND SOL-16 PACKAGES

● COMPANION TO AUDIO DIFFERENTIAL

LINE RECEIVERS: INA134 and INA137

● IMPROVED REPLACEMENT FOR SSM2142

Product Applications

● AUDIO DIFFERENTIAL LINE DRIVERS

● AUDIO MIX CONSOLES

● DISTRIBUTION AMPLIFIERS

● GRAPHIC/PARAMETRIC EQUALIZERS

● DYNAMIC RANGE PROCESSORS

● DIGITAL EFFECTS PROCESSORS

● TELECOM SYSTEMS

● HI-FI EQUIPMENT

● INDUSTRIAL INSTRUMENTATION

Product Specification

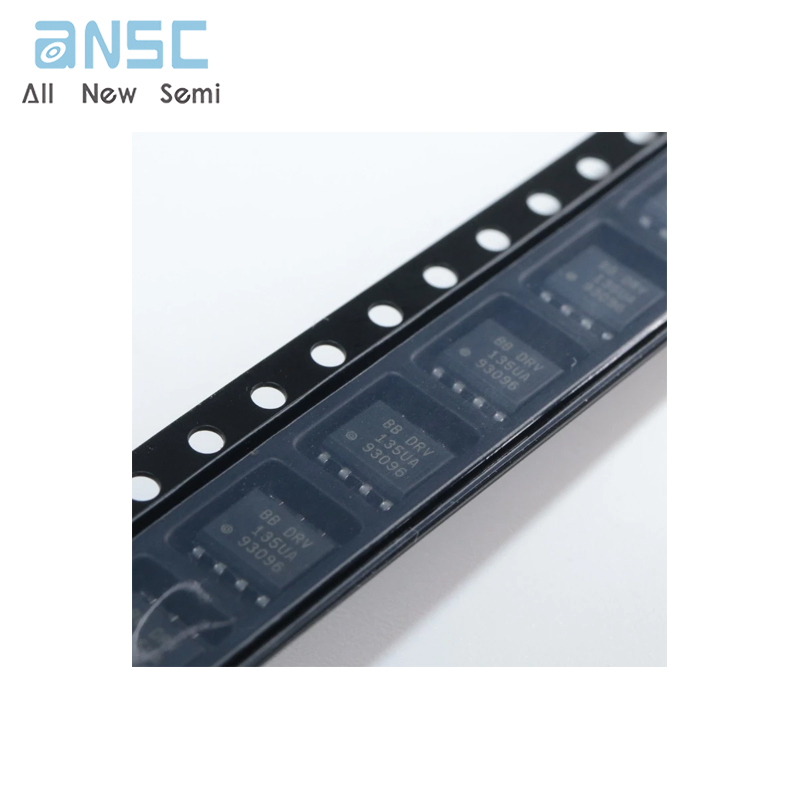

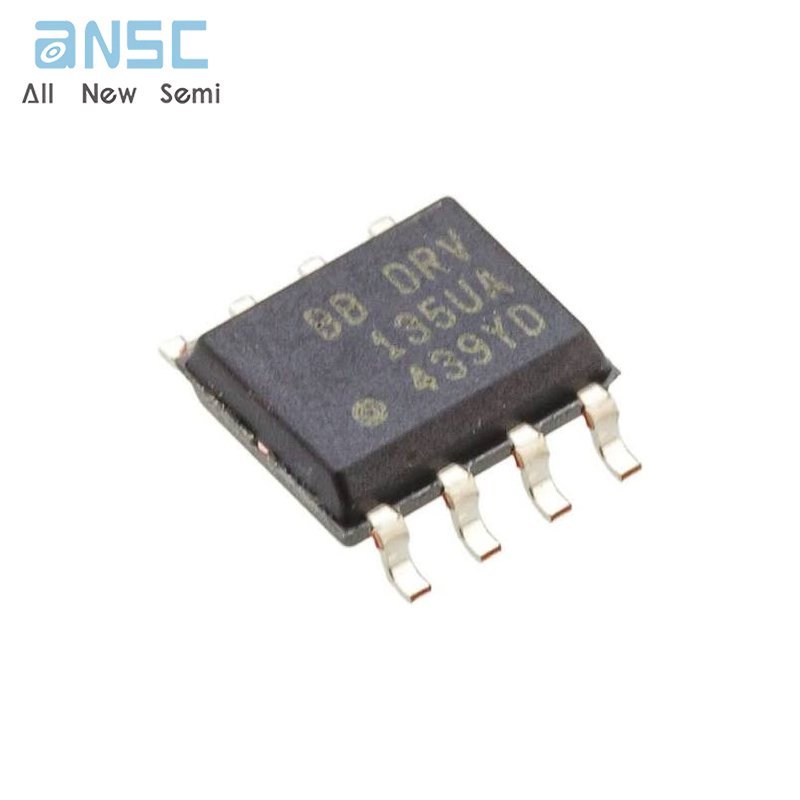

Product Photos

For more product information, please download the PDF
