Hot-selling and scarce AD9883ABSTZ-110 110 MSPS/140 MSPS Analog Interface for Flat Panel Displays LQFP80 spot stock

Product Descriptions

The AD9883A is a complete 8-bit, 140 MSPS, monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full power analog bandwidth of 300 MHz supports resolutions up to SXGA (1280 × 1024 at 75 Hz).

The AD9883A includes a 140 MHz triple ADC with internal1.25 V reference, a PLL, and programmable gain, offset, and clamp control. The user provides only a 3.3 V power supply, analog input, and Hsync and COAST signals. Three-state CMOS outputs may be powered from 2.5 V to 3.3 V.

The AD9883A’s on-chip PLL generates a pixel clock from the Hsync input. Pixel clock output frequencies range from 12 MHz to 140 MHz. PLL clock jitter is 500 ps p-p typical at 140 MSPS. When the COAST signal is presented, the PLL maintains its output frequency in the absence of Hsync. A sampling phase adjustment is provided. Data, Hsync, and clock output phase relationships are maintained. The AD9883A also offers full sync processing for composite sync and sync-on-green applications.

A clamp signal is generated internally or may be provided by the user through the CLAMP input pin. This interface is fully programmable via a 2-wire serial interface.

Fabricated in an advanced CMOS process, the AD9883A is provided in a space-saving 80-lead LQFP surface-mount plastic package and is specified over the –40°C to +85°C temperature range.

Product Features

Industrial Temperature Range Operation

140 MSPS Maximum Conversion Rate

300 MHz Analog Bandwidth

0.5 V to 1.0 V Analog Input Range

500 ps p-p PLL Clock Jitter at 110 MSPS

3.3 V Power Supply

Full Sync Processing

Sync Detect for Hot Plugging

Midscale Clamping

Power-Down Mode

Low Power:  500 mW Typical

4:2:2 Output Format Mode

Product Applications

RGB Graphics Processing

LCD Monitors and Projectors

Plasma Display Panels

Scan Converters

Microdisplays

Digital TV

Product Specifications

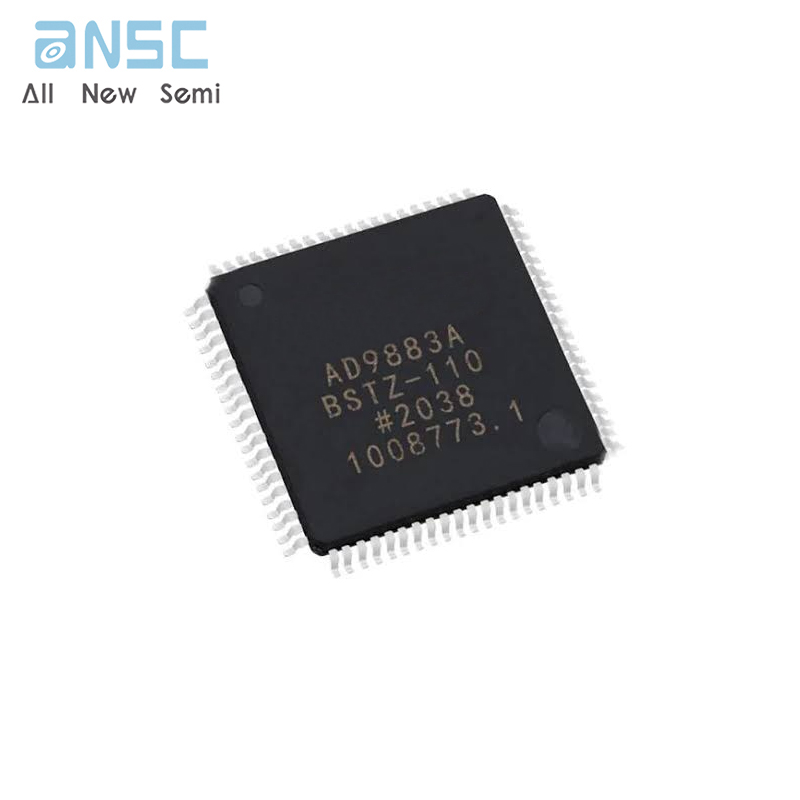

Product Photos

For more product information, please download the PDF
